| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_144T02_9000003340_22495cztM0_level2.evt | modeM0/AS1A07_144T02_9000003340_22495cztM0_level2_quad_clean.evt |
| Size (bytes) | 422,965,440 | 71,032,320 |
| Size | 403.4 MB | 67.7 MB |
| Events in quadrant A | 3,269,577 | 574,251 |
| Events in quadrant B | 3,501,187 | 588,191 |
| Events in quadrant C | 902,873 | 96 |
| Events in quadrant D | 4,703,960 | 549,347 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13627 | 3 |
| B | 0 | 14437 | 2 |
| C | 0 | 6268 | 2 |
| D | 0 | 18221 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6266 | 48 | 0.766039% |
| B | 6266 | 152 | 2.425790% |
| C | 6266 | 6266 | 100.000000% |
| D | 6266 | 579 | 9.240345% |

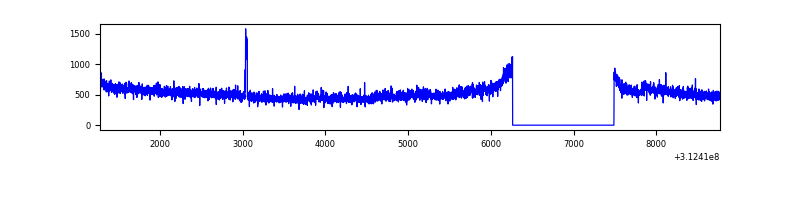

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7491 | 6266 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7491 | 6266 | 24 | 24 | 0.32% | 0.38% |  |
| C | 7490 | 6265 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7491 | 6266 | 327 | 327 | 4.37% | 5.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 34 | 75923 | 455.16 | 823 | 807 | 165.0 |
| A | 3 | 1 | 21710 | 126.66 | 823 | 807 | 165.0 |
| A | 13 | 254 | 9411 | 52.14 | 823 | 807 | 165.0 |
| B | 15 | 33 | 135044 | 863.11 | 820 | 802 | 155.5 |
| B | 15 | 35 | 103087 | 657.64 | 820 | 802 | 155.5 |
| B | 5 | 172 | 30332 | 189.86 | 820 | 802 | 155.5 |
| C | 7 | 119 | 890747 | 653481.57 | 2 | 2 | 1.4 |
| C | 7 | 226 | 1814 | 1329.35 | 2 | 2 | 1.4 |
| C | 14 | 238 | 1020 | 746.84 | 2 | 2 | 1.4 |
| D | 1 | 52 | 1459794 | 7839.13 | 759 | 737 | 186.1 |
| D | 13 | 249 | 157775 | 843.72 | 759 | 737 | 186.1 |
| D | 7 | 223 | 127151 | 679.19 | 759 | 737 | 186.1 |

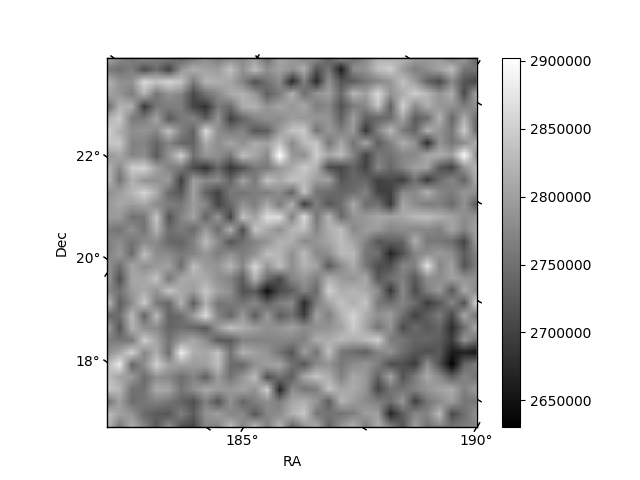

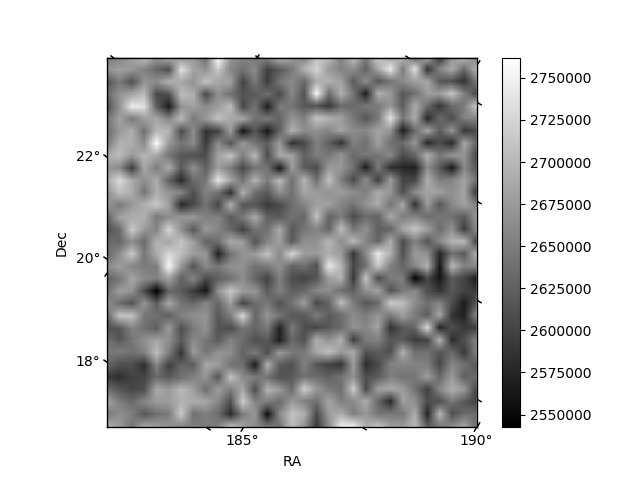

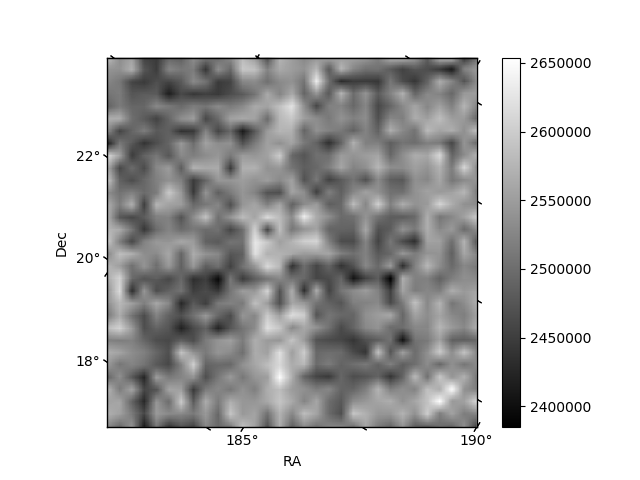

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

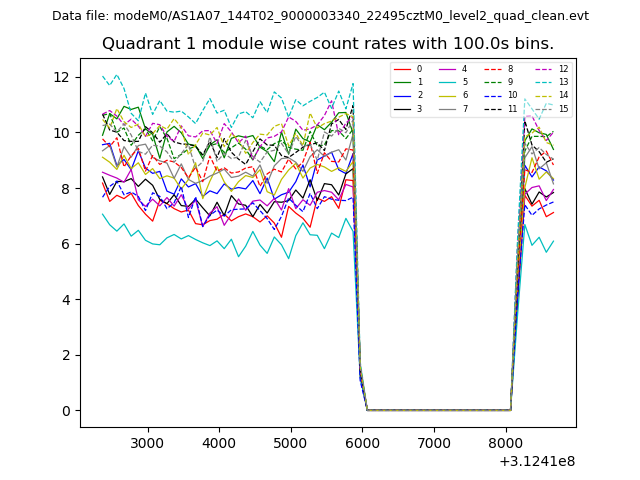

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

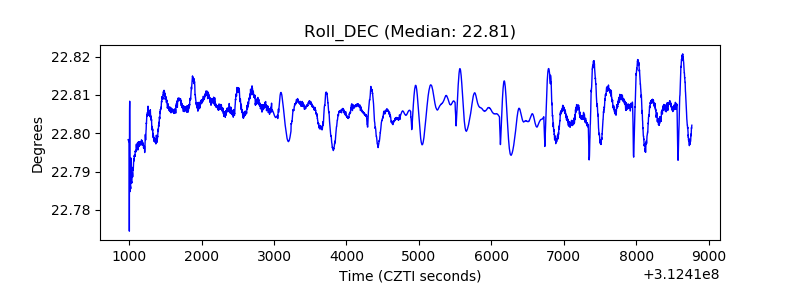

| _Roll_DEC |  |

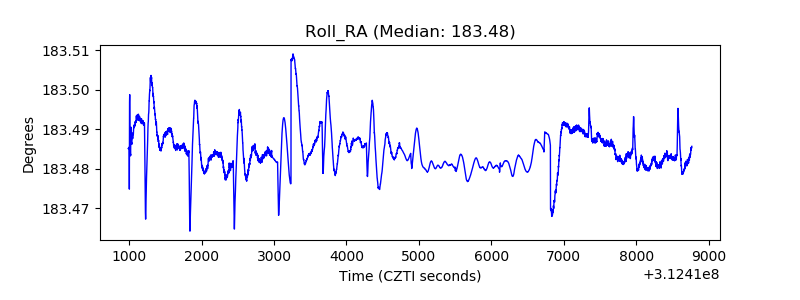

| _Roll_RA |  |
| Veto Counter |  |
