| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_144T02_9000003340_22496cztM0_level2.evt | modeM0/AS1A07_144T02_9000003340_22496cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,070,176,320 | 195,088,320 |
| Size | 1020.6 MB | 186.1 MB |
| Events in quadrant A | 8,160,216 | 1,605,747 |
| Events in quadrant B | 8,680,486 | 1,641,101 |
| Events in quadrant C | 2,348,923 | 318 |
| Events in quadrant D | 12,101,795 | 1,531,480 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35 | 0 |
| B | 0 | 35 | 0 |
| C | 0 | 35 | 0 |
| D | 0 | 35 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 332 | 0 |
| B | 0 | 332 | 0 |
| C | 0 | 332 | 0 |
| D | 0 | 332 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34633 | 3 |
| B | 0 | 36188 | 3 |
| C | 0 | 16304 | 3 |
| D | 0 | 46932 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 16300 | 119 | 0.730061% |
| B | 16300 | 300 | 1.840491% |
| C | 16300 | 16300 | 100.000000% |
| D | 16300 | 1138 | 6.981595% |

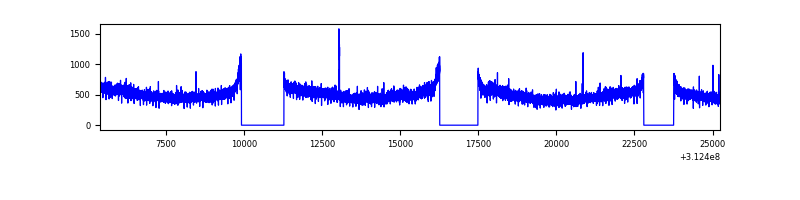

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19845 | 16301 | 0 | 0 | 0.00% | 0.00% |  |
| B | 19845 | 16300 | 61 | 61 | 0.31% | 0.37% |  |
| C | 19844 | 16299 | 0 | 0 | 0.00% | 0.00% |  |
| D | 19845 | 16301 | 752 | 752 | 3.79% | 4.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 34 | 76811 | 180.36 | 2092 | 2056 | 414.5 |
| A | 13 | 254 | 24844 | 54.98 | 2092 | 2056 | 414.5 |
| A | 3 | 1 | 23590 | 51.96 | 2092 | 2056 | 414.5 |
| B | 5 | 172 | 171556 | 437.03 | 2086 | 2041 | 387.9 |
| B | 15 | 33 | 159375 | 405.63 | 2086 | 2041 | 387.9 |
| B | 15 | 35 | 126273 | 320.29 | 2086 | 2041 | 387.9 |
| C | 7 | 119 | 2318327 | 814545.73 | 5 | 5 | 2.8 |
| C | 7 | 226 | 4955 | 1739.19 | 5 | 5 | 2.8 |
| C | 14 | 238 | 2446 | 857.65 | 5 | 5 | 2.8 |
| D | 1 | 52 | 4075250 | 8521.61 | 1974 | 1921 | 478.0 |
| D | 7 | 223 | 196749 | 407.59 | 1974 | 1921 | 478.0 |
| D | 13 | 249 | 184156 | 381.24 | 1974 | 1921 | 478.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

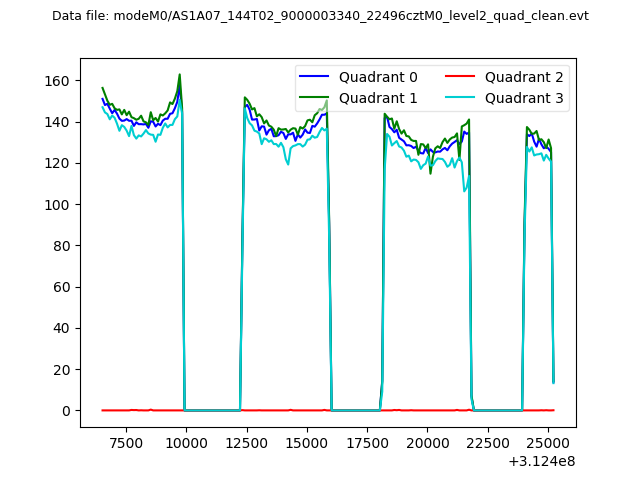

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

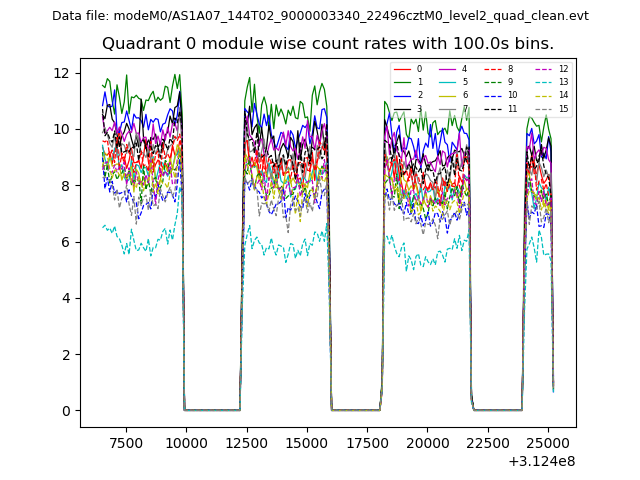

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

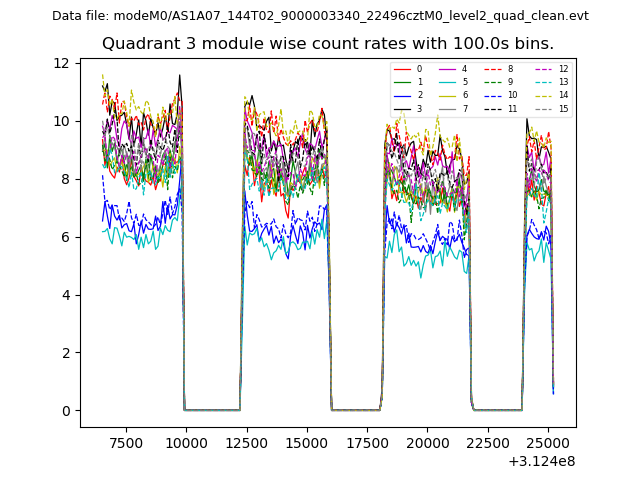

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

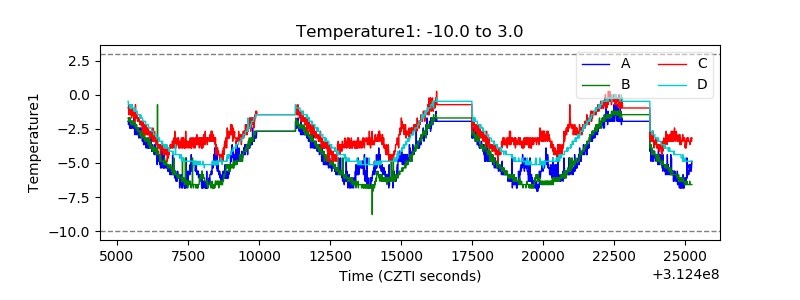

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

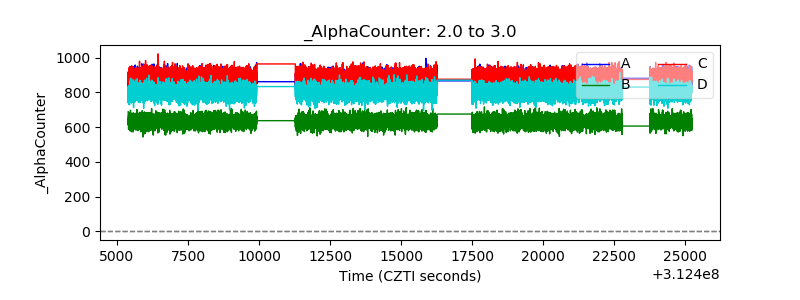

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

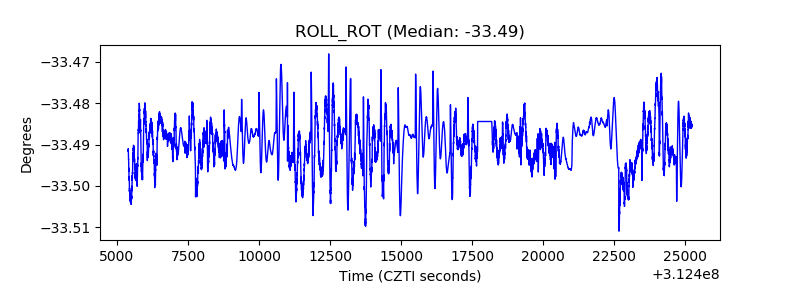

| _ROLL_ROT |  |
| _Roll_DEC |  |

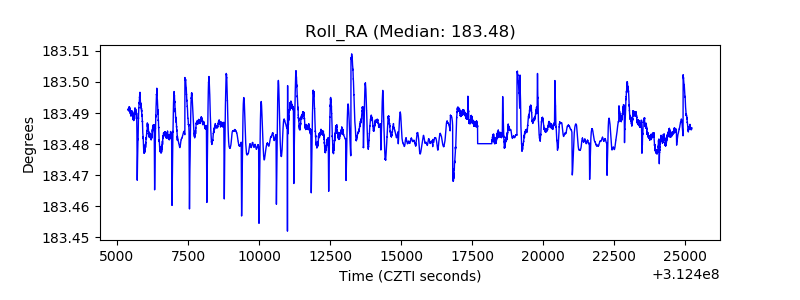

| _Roll_RA |  |
| Veto Counter |  |
