| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_144T02_9000003340_22503cztM0_level2.evt | modeM0/AS1A07_144T02_9000003340_22503cztM0_level2_quad_clean.evt |
| Size (bytes) | 430,968,960 | 78,448,320 |
| Size | 411.0 MB | 74.8 MB |
| Events in quadrant A | 3,088,507 | 487,129 |
| Events in quadrant B | 3,189,494 | 495,566 |
| Events in quadrant C | 3,119,531 | 479,727 |
| Events in quadrant D | 3,220,082 | 467,373 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13088 | 1 |
| B | 0 | 13316 | 1 |
| C | 0 | 13155 | 2 |
| D | 0 | 13826 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6386 | 35 | 0.548074% |
| B | 6387 | 49 | 0.767183% |
| C | 6386 | 52 | 0.814281% |
| D | 6386 | 26 | 0.407141% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7376 | 6386 | 7 | 7 | 0.09% | 0.11% |  |
| B | 7377 | 6387 | 17 | 17 | 0.23% | 0.27% |  |
| C | 7376 | 6386 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7376 | 6386 | 5 | 5 | 0.07% | 0.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 240 | 21463 | 129.76 | 793 | 777 | 159.4 |
| A | 3 | 1 | 11459 | 67.01 | 793 | 777 | 159.4 |
| A | 13 | 254 | 9410 | 54.15 | 793 | 777 | 159.4 |
| B | 5 | 172 | 81496 | 536.37 | 784 | 764 | 150.5 |
| B | 12 | 111 | 18367 | 116.95 | 784 | 764 | 150.5 |
| B | 11 | 111 | 16402 | 103.9 | 784 | 764 | 150.5 |
| C | 14 | 238 | 120046 | 666.14 | 762 | 766 | 179.1 |
| C | 0 | 10 | 15666 | 83.21 | 762 | 766 | 179.1 |
| C | 10 | 22 | 15507 | 82.32 | 762 | 766 | 179.1 |
| D | 1 | 52 | 195004 | 1022.69 | 774 | 751 | 189.9 |
| D | 7 | 223 | 42065 | 217.5 | 774 | 751 | 189.9 |
| D | 13 | 172 | 28590 | 146.56 | 774 | 751 | 189.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

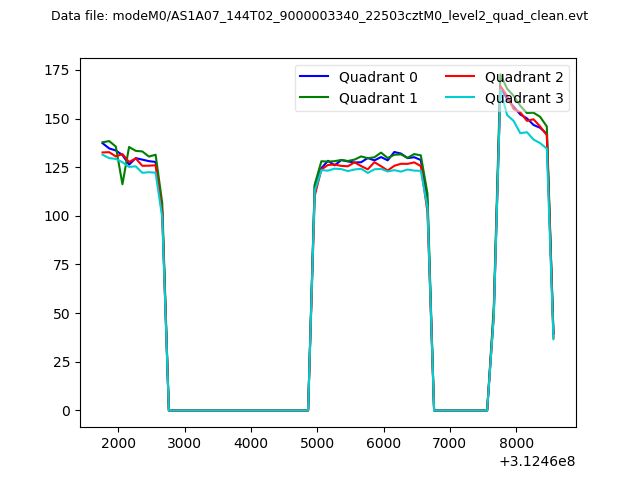

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

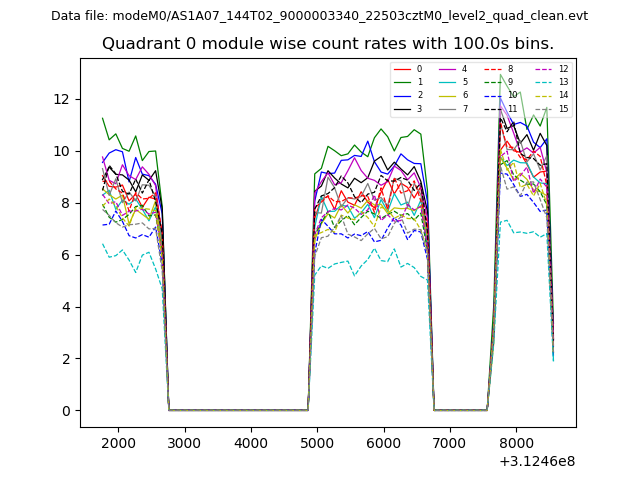

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

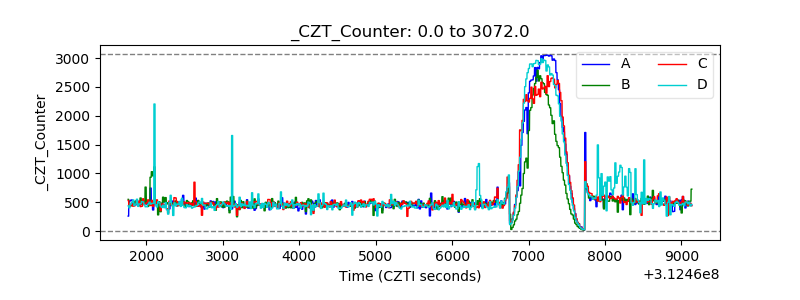

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

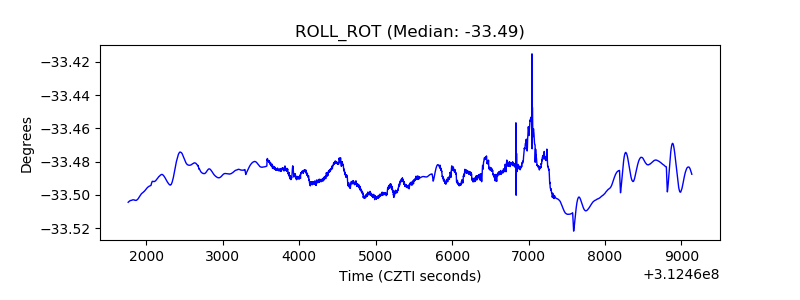

| _ROLL_ROT |  |
| _Roll_DEC |  |

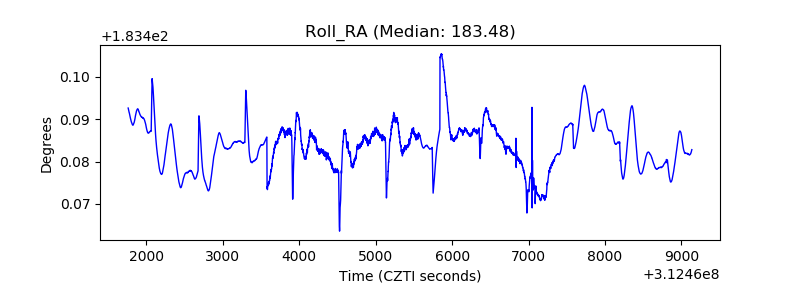

| _Roll_RA |  |
| Veto Counter |  |
