| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_003T01_9000003342_22517cztM0_level2.evt | modeM0/AS1A08_003T01_9000003342_22517cztM0_level2_quad_clean.evt |
| Size (bytes) | 488,249,280 | 84,467,520 |
| Size | 465.6 MB | 80.6 MB |
| Events in quadrant A | 3,075,102 | 530,773 |
| Events in quadrant B | 3,180,381 | 541,522 |
| Events in quadrant C | 3,116,394 | 521,602 |
| Events in quadrant D | 4,971,423 | 508,724 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13210 | 1 |
| B | 0 | 13428 | 1 |
| C | 0 | 13231 | 1 |
| D | 0 | 19010 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6523 | 45 | 0.689867% |
| B | 6523 | 38 | 0.582554% |
| C | 6524 | 60 | 0.919681% |
| D | 6524 | 499 | 7.648682% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

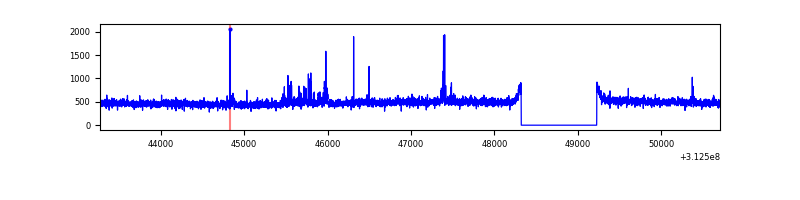

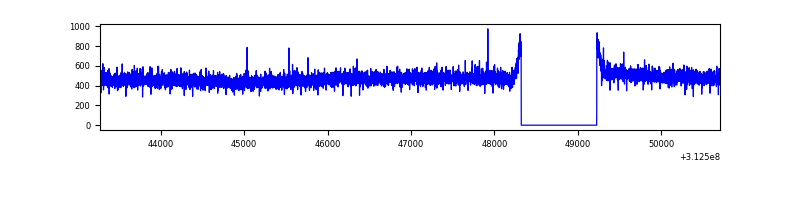

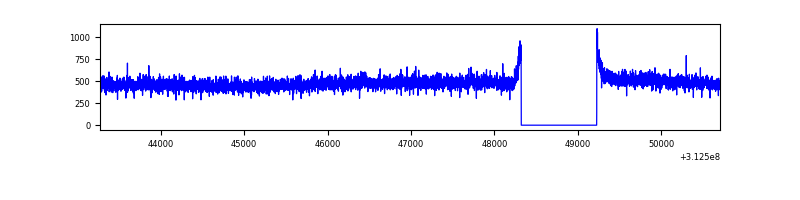

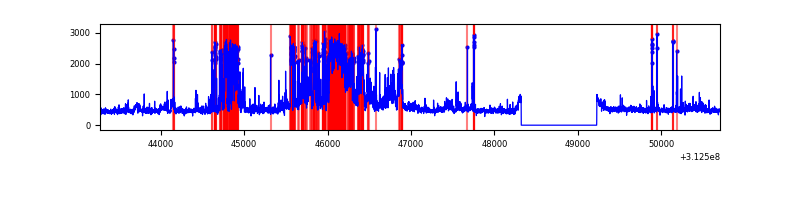

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7428 | 6523 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7428 | 6523 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7429 | 6524 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7429 | 6524 | 470 | 470 | 6.33% | 7.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9799 | 56.01 | 797 | 779 | 161.0 |
| A | 3 | 137 | 6914 | 38.09 | 797 | 779 | 161.0 |
| A | 0 | 226 | 6777 | 37.24 | 797 | 779 | 161.0 |
| B | 15 | 33 | 38984 | 252.62 | 792 | 773 | 151.3 |
| B | 0 | 245 | 25062 | 160.57 | 792 | 773 | 151.3 |
| B | 12 | 111 | 18469 | 116.99 | 792 | 773 | 151.3 |
| C | 14 | 238 | 122089 | 670.42 | 768 | 774 | 181.0 |
| C | 13 | 61 | 5289 | 24.95 | 768 | 774 | 181.0 |
| C | 0 | 10 | 3508 | 15.11 | 768 | 774 | 181.0 |
| D | 12 | 227 | 1182220 | 6324.65 | 760 | 738 | 186.8 |
| D | 1 | 52 | 388388 | 2075.15 | 760 | 738 | 186.8 |
| D | 2 | 136 | 328810 | 1756.22 | 760 | 738 | 186.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

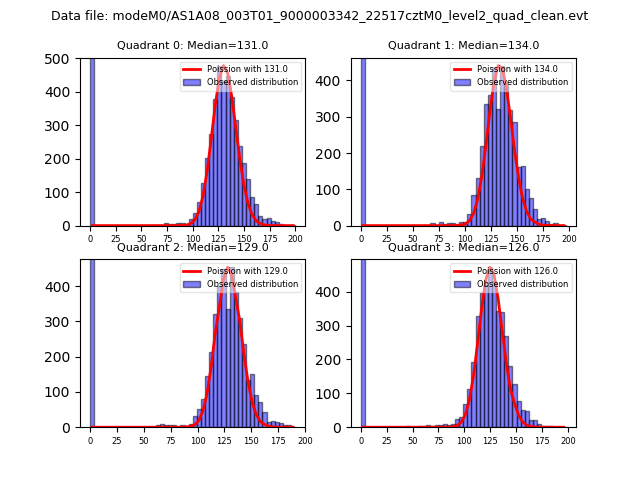

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

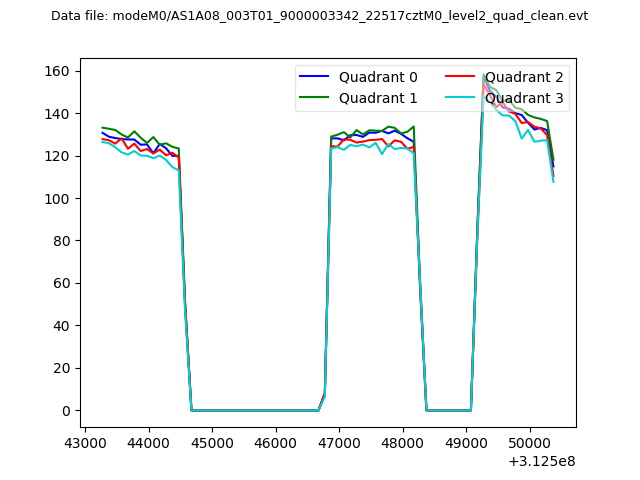

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

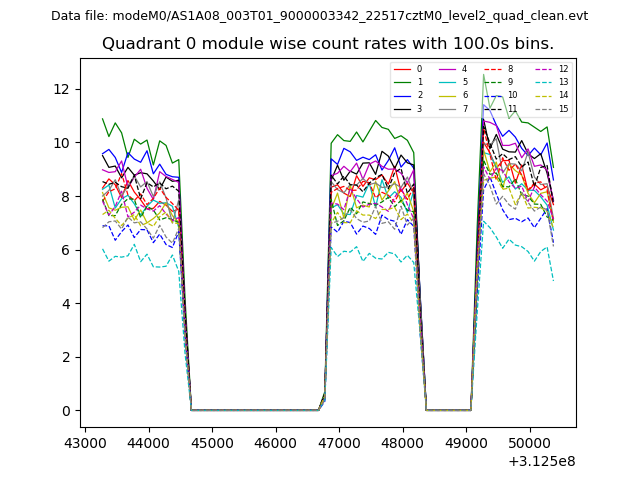

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

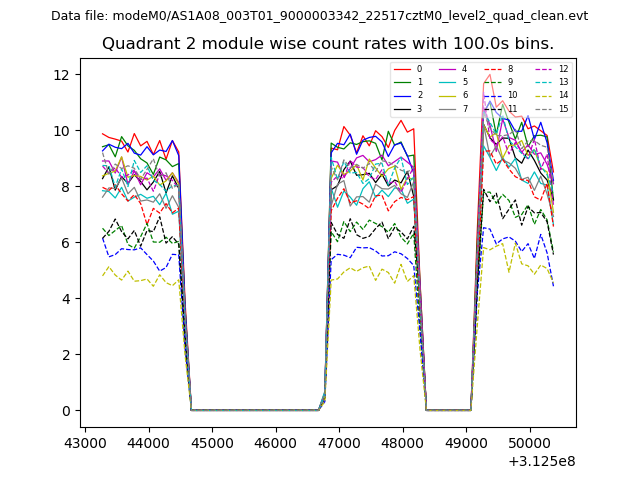

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

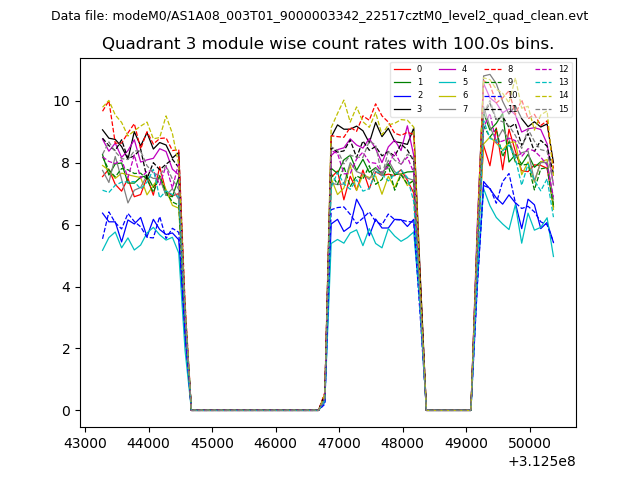

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

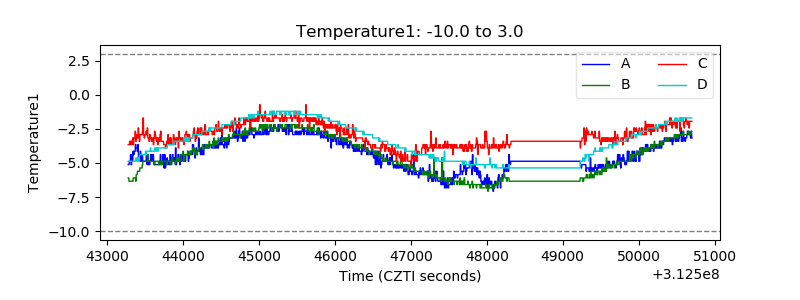

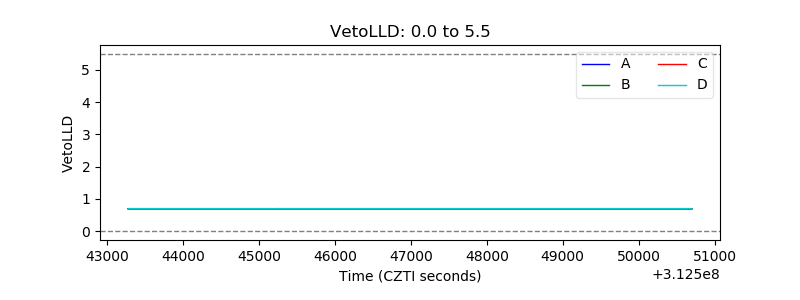

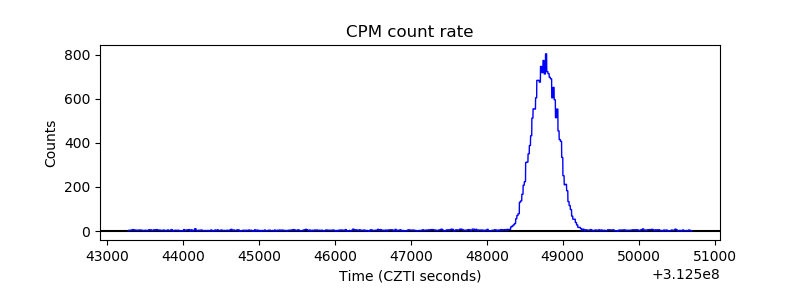

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

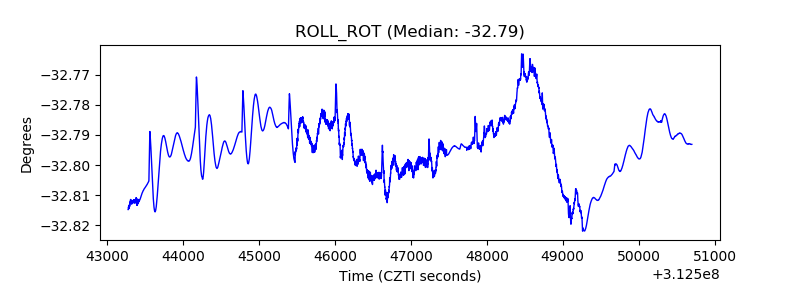

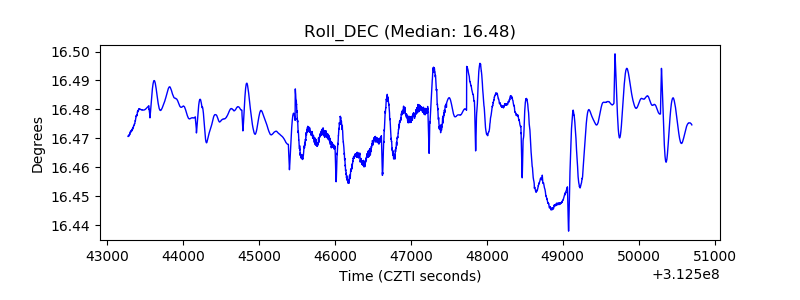

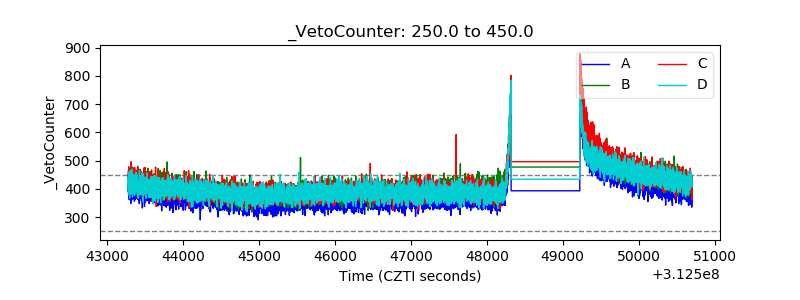

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
