| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_003T01_9000003342_22520cztM0_level2.evt | modeM0/AS1A08_003T01_9000003342_22520cztM0_level2_quad_clean.evt |
| Size (bytes) | 443,050,560 | 71,487,360 |
| Size | 422.5 MB | 68.2 MB |
| Events in quadrant A | 3,165,728 | 437,464 |
| Events in quadrant B | 3,330,710 | 444,147 |
| Events in quadrant C | 3,234,327 | 430,595 |
| Events in quadrant D | 3,268,945 | 422,632 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13210 | 1 |
| B | 0 | 13719 | 1 |
| C | 0 | 13400 | 1 |
| D | 0 | 13630 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6159 | 52 | 0.844293% |
| B | 6160 | 73 | 1.185065% |
| C | 6159 | 106 | 1.721059% |
| D | 6159 | 42 | 0.681929% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7324 | 6159 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7325 | 6160 | 11 | 11 | 0.15% | 0.18% |  |
| C | 7324 | 6159 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7324 | 6159 | 4 | 4 | 0.05% | 0.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9591 | 53.76 | 821 | 806 | 163.4 |
| A | 0 | 226 | 7069 | 38.32 | 821 | 806 | 163.4 |
| A | 3 | 137 | 6684 | 35.97 | 821 | 806 | 163.4 |
| B | 15 | 33 | 54771 | 352.86 | 813 | 793 | 153.0 |
| B | 0 | 197 | 40057 | 256.67 | 813 | 793 | 153.0 |
| B | 4 | 171 | 21370 | 134.51 | 813 | 793 | 153.0 |
| C | 14 | 238 | 127712 | 684.38 | 795 | 801 | 185.4 |
| C | 0 | 10 | 6389 | 30.13 | 795 | 801 | 185.4 |
| C | 13 | 61 | 5605 | 25.91 | 795 | 801 | 185.4 |
| D | 1 | 52 | 161818 | 820.95 | 807 | 785 | 196.2 |
| D | 2 | 136 | 32319 | 160.76 | 807 | 785 | 196.2 |
| D | 2 | 234 | 25037 | 123.64 | 807 | 785 | 196.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

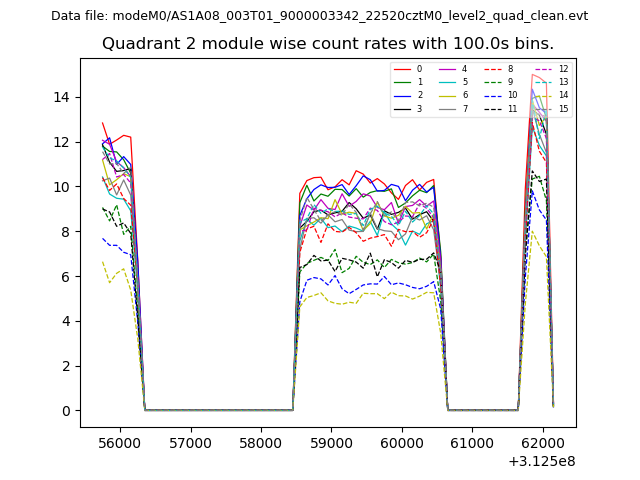

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

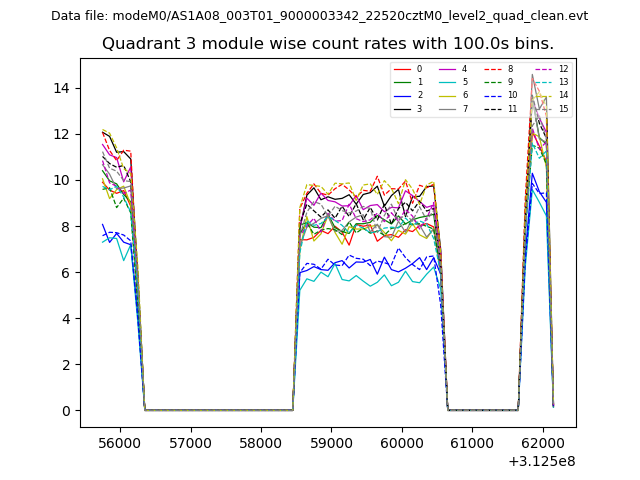

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
