| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_003T01_9000003342_22521cztM0_level2.evt | modeM0/AS1A08_003T01_9000003342_22521cztM0_level2_quad_clean.evt |
| Size (bytes) | 502,482,240 | 68,322,240 |
| Size | 479.2 MB | 65.2 MB |
| Events in quadrant A | 3,511,457 | 407,553 |
| Events in quadrant B | 3,836,565 | 413,528 |
| Events in quadrant C | 3,619,164 | 401,488 |
| Events in quadrant D | 3,812,015 | 395,099 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14588 | 2 |
| B | 0 | 15612 | 3 |
| C | 0 | 14867 | 2 |
| D | 0 | 15621 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6463 | 81 | 1.253288% |
| B | 6462 | 151 | 2.336738% |
| C | 6462 | 142 | 2.197462% |
| D | 6462 | 86 | 1.330857% |

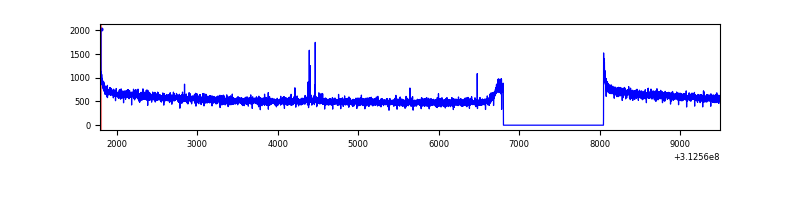

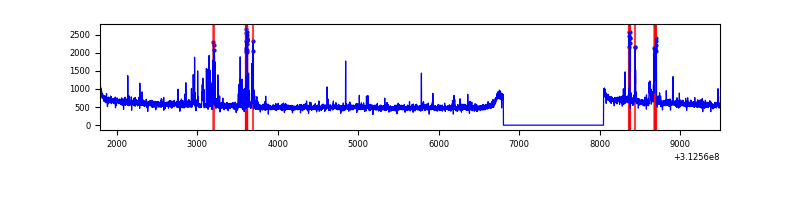

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7708 | 6463 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7707 | 6462 | 39 | 39 | 0.51% | 0.60% |  |
| C | 7707 | 6462 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7707 | 6462 | 12 | 12 | 0.16% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9653 | 48.47 | 911 | 895 | 180.7 |
| A | 0 | 226 | 8111 | 39.93 | 911 | 895 | 180.7 |
| A | 3 | 137 | 7294 | 35.41 | 911 | 895 | 180.7 |
| B | 15 | 33 | 235668 | 1404.47 | 899 | 878 | 167.2 |
| B | 4 | 171 | 38289 | 223.79 | 899 | 878 | 167.2 |
| B | 12 | 111 | 19526 | 111.55 | 899 | 878 | 167.2 |
| C | 14 | 238 | 140327 | 682.95 | 886 | 898 | 204.2 |
| C | 0 | 10 | 13251 | 60.51 | 886 | 898 | 204.2 |
| C | 10 | 22 | 9921 | 44.2 | 886 | 898 | 204.2 |
| D | 1 | 52 | 317367 | 1447.21 | 900 | 876 | 218.7 |
| D | 13 | 249 | 27960 | 123.84 | 900 | 876 | 218.7 |
| D | 2 | 234 | 26699 | 118.08 | 900 | 876 | 218.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

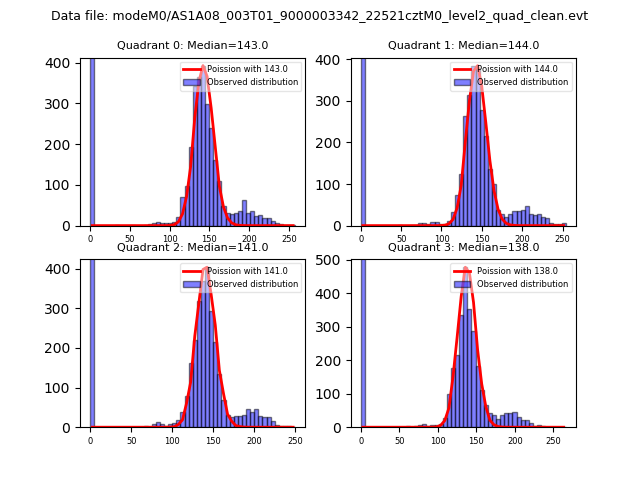

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

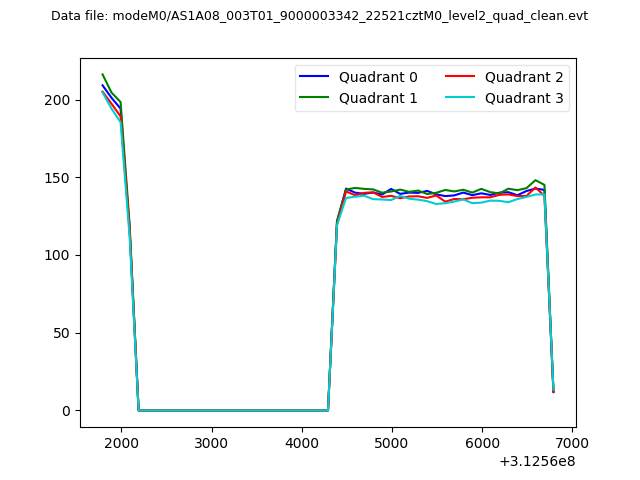

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

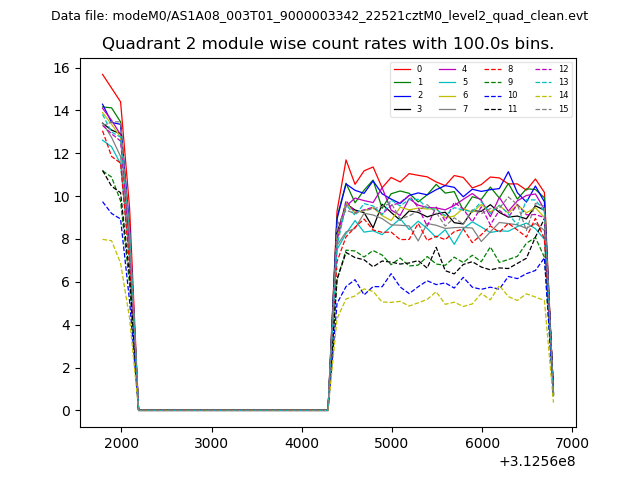

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

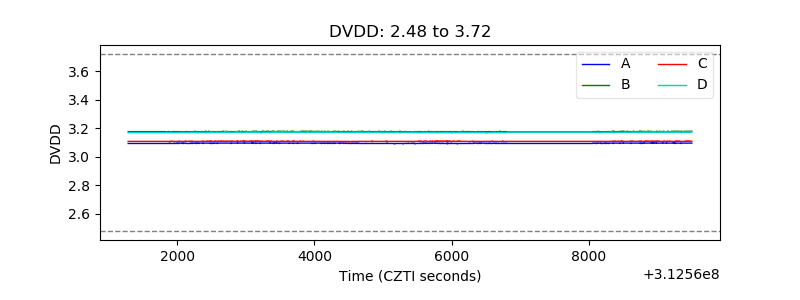

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

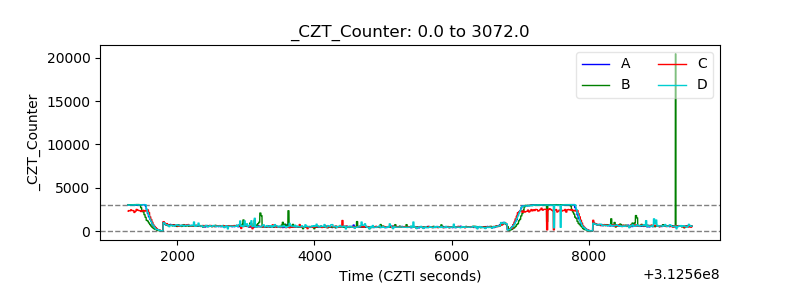

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

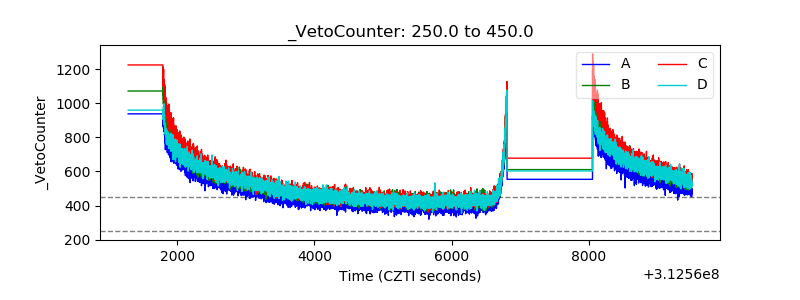

| Veto Counter |  |
