| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_003T01_9000003342_22523cztM0_level2.evt | modeM0/AS1A08_003T01_9000003342_22523cztM0_level2_quad_clean.evt |
| Size (bytes) | 478,005,120 | 73,353,600 |
| Size | 455.9 MB | 70.0 MB |
| Events in quadrant A | 3,306,554 | 451,210 |
| Events in quadrant B | 3,542,897 | 458,794 |
| Events in quadrant C | 3,449,245 | 446,042 |
| Events in quadrant D | 3,762,477 | 437,906 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13710 | 2 |
| B | 0 | 14398 | 2 |
| C | 0 | 14179 | 2 |
| D | 0 | 15295 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6119 | 87 | 1.421801% |
| B | 6119 | 146 | 2.386011% |
| C | 6119 | 165 | 2.696519% |
| D | 6119 | 129 | 2.108188% |

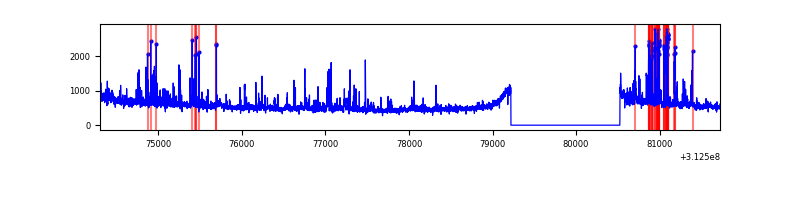

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

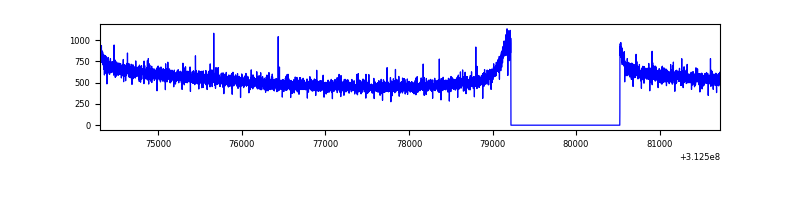

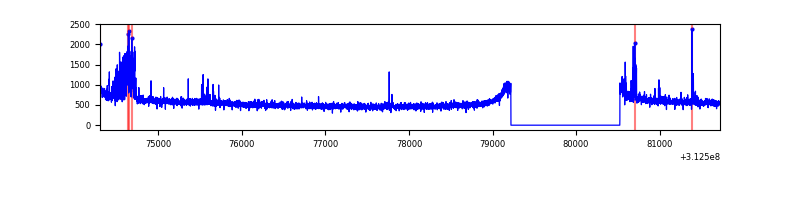

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7424 | 6119 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7424 | 6119 | 6 | 6 | 0.08% | 0.10% |  |
| C | 7424 | 6119 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7424 | 6119 | 62 | 62 | 0.84% | 1.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9562 | 50.95 | 858 | 841 | 171.2 |
| A | 0 | 226 | 7459 | 38.66 | 858 | 841 | 171.2 |
| A | 3 | 137 | 6817 | 34.91 | 858 | 841 | 171.2 |
| B | 15 | 33 | 191104 | 1196.33 | 853 | 836 | 159.0 |
| B | 12 | 111 | 18155 | 108.9 | 853 | 836 | 159.0 |
| B | 11 | 111 | 16226 | 96.77 | 853 | 836 | 159.0 |
| C | 14 | 238 | 133289 | 692.04 | 834 | 845 | 191.4 |
| C | 10 | 22 | 32972 | 167.87 | 834 | 845 | 191.4 |
| C | 9 | 54 | 13121 | 64.14 | 834 | 845 | 191.4 |
| D | 1 | 52 | 340404 | 1675.33 | 842 | 821 | 202.7 |
| D | 13 | 172 | 185457 | 910.9 | 842 | 821 | 202.7 |
| D | 15 | 145 | 40933 | 197.89 | 842 | 821 | 202.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

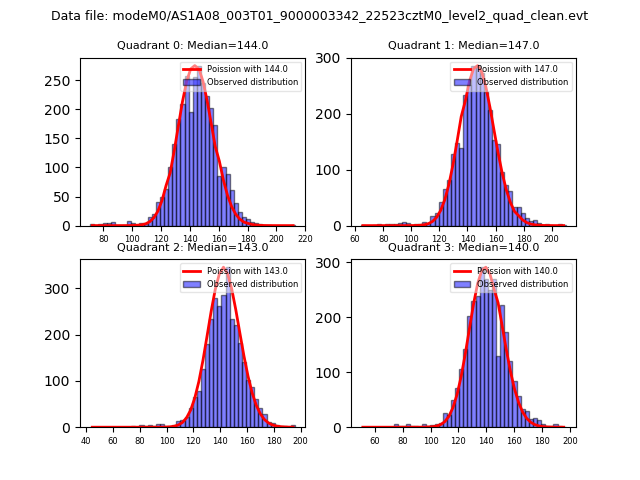

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

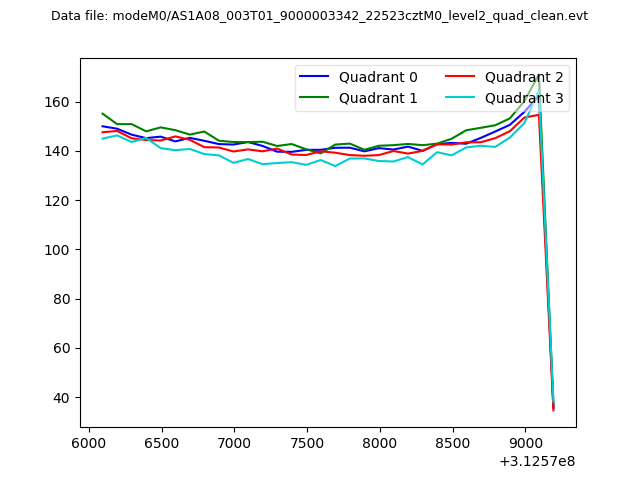

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

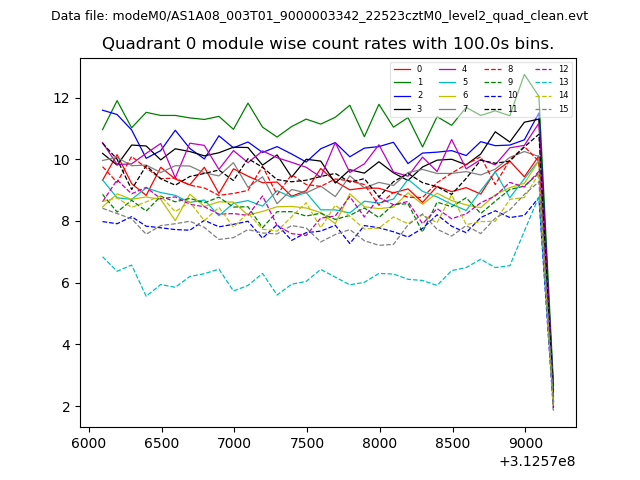

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

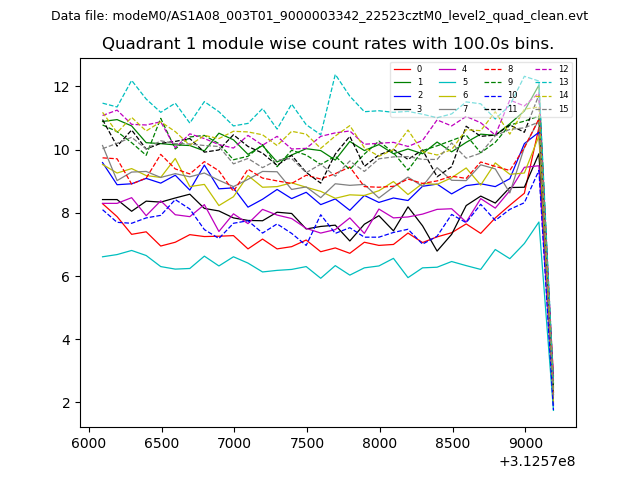

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

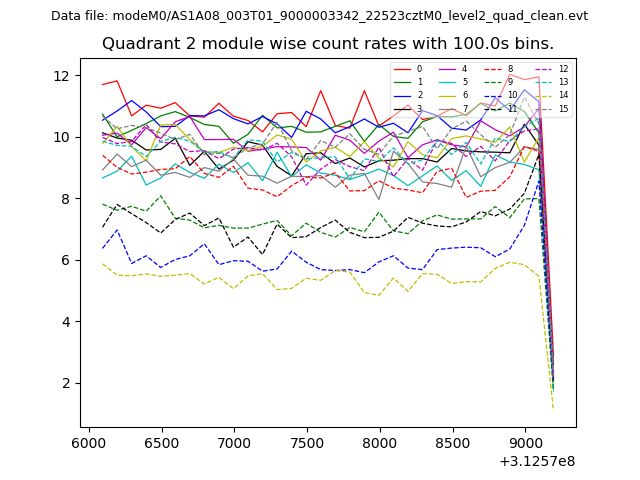

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

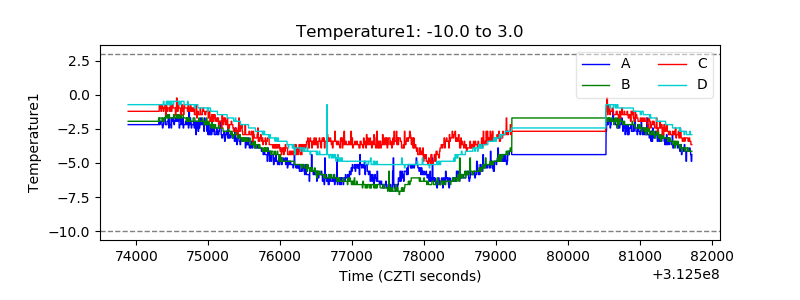

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

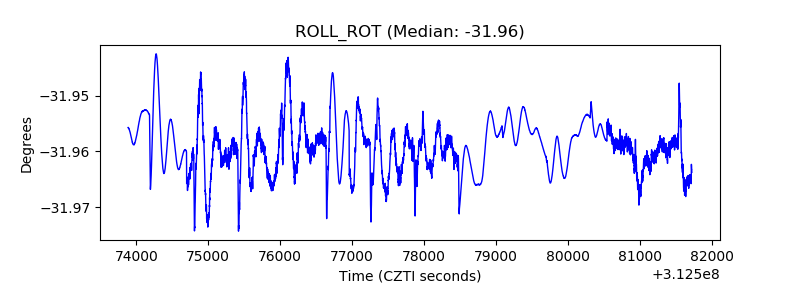

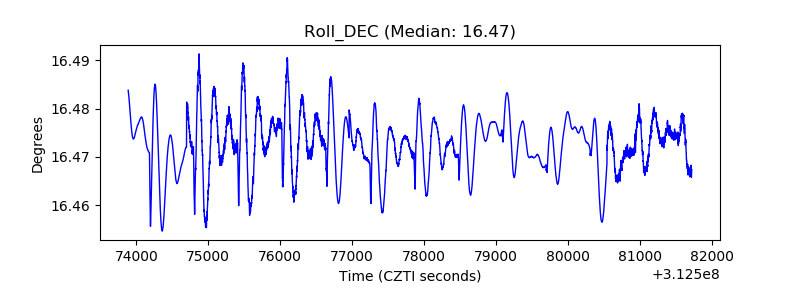

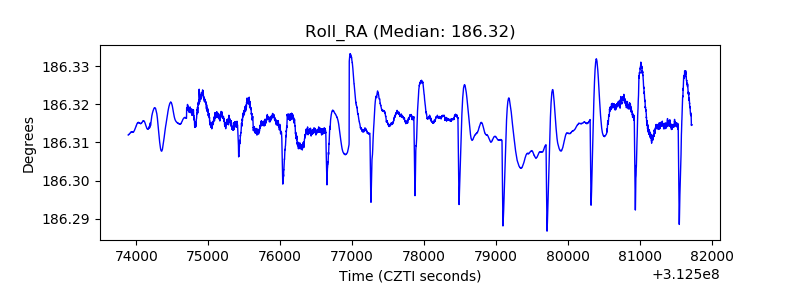

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

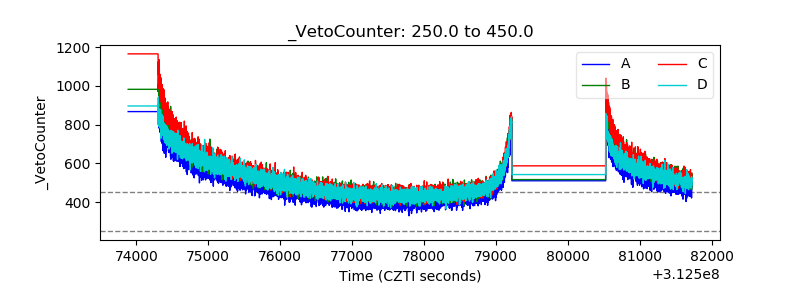

| Veto Counter |  |
