| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_003T01_9000003342_22527cztM0_level2.evt | modeM0/AS1A08_003T01_9000003342_22527cztM0_level2_quad_clean.evt |
| Size (bytes) | 610,585,920 | 105,799,680 |
| Size | 582.3 MB | 100.9 MB |
| Events in quadrant A | 3,885,709 | 667,067 |
| Events in quadrant B | 4,411,279 | 678,845 |
| Events in quadrant C | 3,982,936 | 657,224 |
| Events in quadrant D | 5,661,831 | 637,207 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16974 | 2 |
| B | 0 | 18634 | 2 |
| C | 0 | 17132 | 2 |
| D | 0 | 22678 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8104 | 66 | 0.814413% |
| B | 8105 | 231 | 2.850093% |
| C | 8105 | 175 | 2.159161% |
| D | 8105 | 392 | 4.836521% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8914 | 8105 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8915 | 8105 | 15 | 15 | 0.17% | 0.19% |  |
| C | 8915 | 8105 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8915 | 8107 | 300 | 300 | 3.37% | 3.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12966 | 58.25 | 1008 | 988 | 205.6 |
| A | 3 | 137 | 8846 | 38.21 | 1008 | 988 | 205.6 |
| A | 0 | 226 | 8780 | 37.89 | 1008 | 988 | 205.6 |
| B | 15 | 33 | 375437 | 1935.99 | 1005 | 978 | 193.4 |
| B | 0 | 197 | 33607 | 168.69 | 1005 | 978 | 193.4 |
| B | 0 | 245 | 27356 | 136.38 | 1005 | 978 | 193.4 |
| C | 14 | 238 | 152418 | 658.62 | 972 | 978 | 229.9 |
| C | 10 | 22 | 32395 | 136.63 | 972 | 978 | 229.9 |
| C | 13 | 61 | 6698 | 24.88 | 972 | 978 | 229.9 |
| D | 1 | 52 | 1932937 | 8159.5 | 964 | 937 | 236.8 |
| D | 2 | 234 | 33978 | 139.54 | 964 | 937 | 236.8 |
| D | 12 | 227 | 21783 | 88.04 | 964 | 937 | 236.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

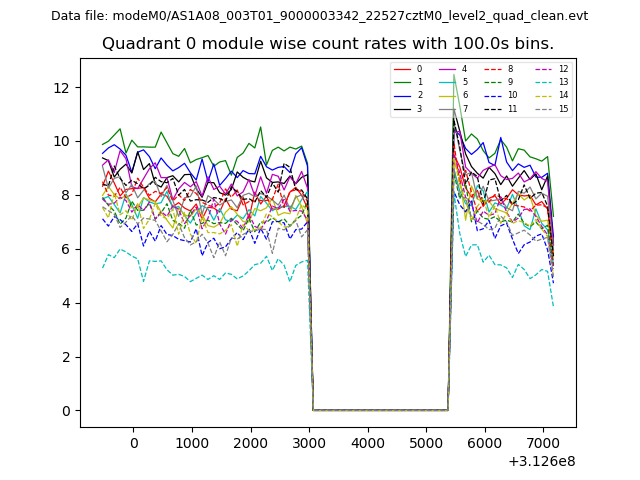

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

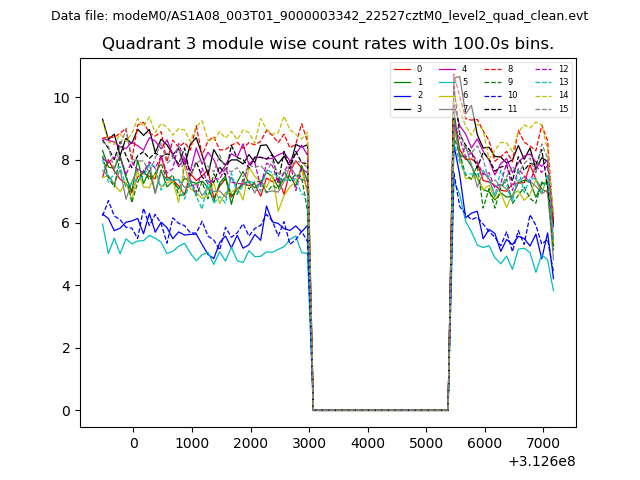

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
