| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_049T01_9000003344_22534cztM0_level2.evt | modeM0/AS1A07_049T01_9000003344_22534cztM0_level2_quad_clean.evt |
| Size (bytes) | 396,645,120 | 92,459,520 |
| Size | 378.3 MB | 88.2 MB |
| Events in quadrant A | 2,884,389 | 611,870 |
| Events in quadrant B | 2,910,096 | 618,715 |
| Events in quadrant C | 2,881,092 | 580,020 |
| Events in quadrant D | 2,932,456 | 574,272 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12459 | 1 |
| B | 0 | 12499 | 1 |
| C | 0 | 12337 | 1 |
| D | 0 | 12635 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5937 | 69 | 1.162203% |
| B | 5938 | 83 | 1.397777% |
| C | 5938 | 101 | 1.700909% |
| D | 5938 | 74 | 1.246211% |

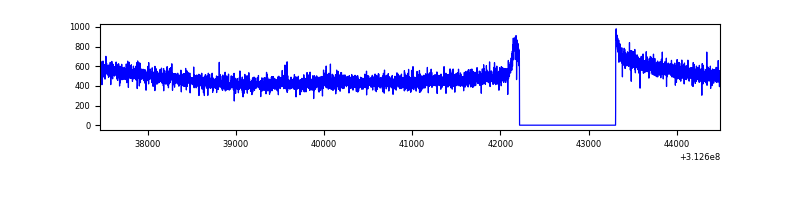

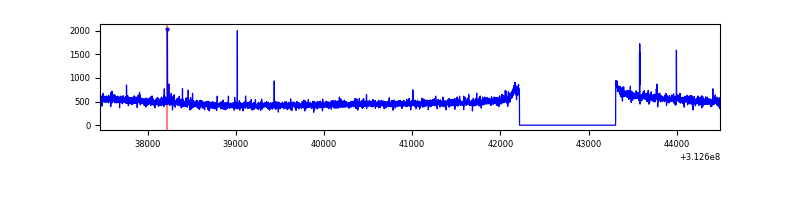

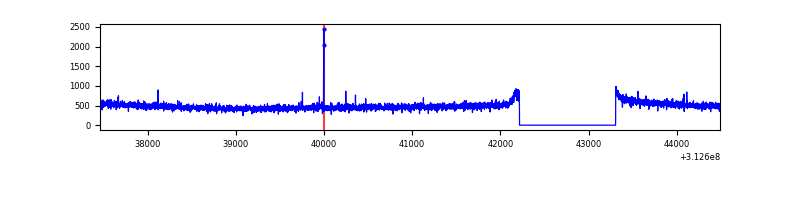

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7027 | 5937 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7028 | 5938 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7028 | 5938 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7028 | 5938 | 7 | 7 | 0.10% | 0.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9074 | 55.45 | 747 | 733 | 150.4 |
| A | 0 | 226 | 6505 | 38.37 | 747 | 733 | 150.4 |
| A | 3 | 1 | 6452 | 38.02 | 747 | 733 | 150.4 |
| B | 12 | 111 | 16617 | 114.22 | 736 | 718 | 139.2 |
| B | 11 | 111 | 14910 | 101.96 | 736 | 718 | 139.2 |
| B | 0 | 245 | 14161 | 96.58 | 736 | 718 | 139.2 |
| C | 14 | 238 | 113427 | 680.73 | 706 | 710 | 165.6 |
| C | 10 | 22 | 10901 | 61.55 | 706 | 710 | 165.6 |
| C | 13 | 61 | 4802 | 24.71 | 706 | 710 | 165.6 |
| D | 1 | 52 | 102099 | 575.87 | 725 | 702 | 176.1 |
| D | 5 | 32 | 25056 | 138.31 | 725 | 702 | 176.1 |
| D | 2 | 234 | 24355 | 134.33 | 725 | 702 | 176.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

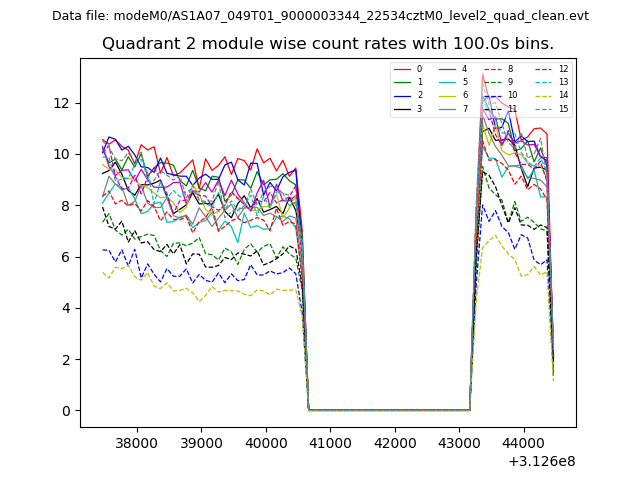

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

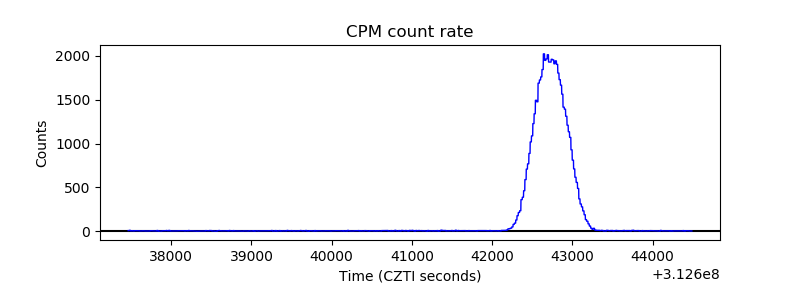

| _CPM_Rate |  |

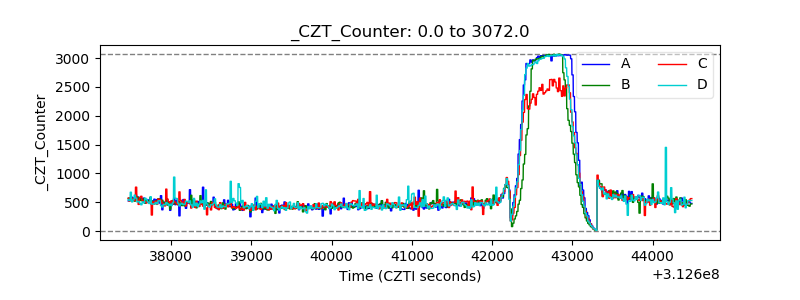

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

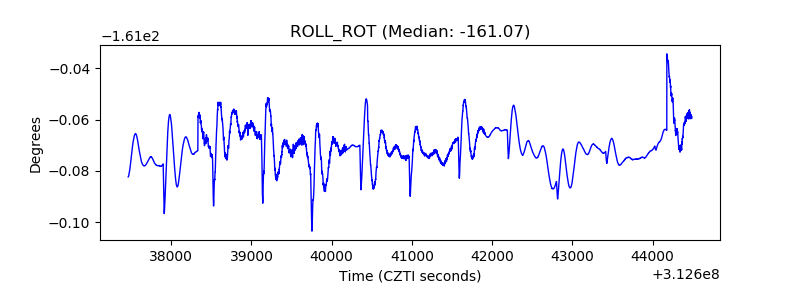

| _ROLL_ROT |  |

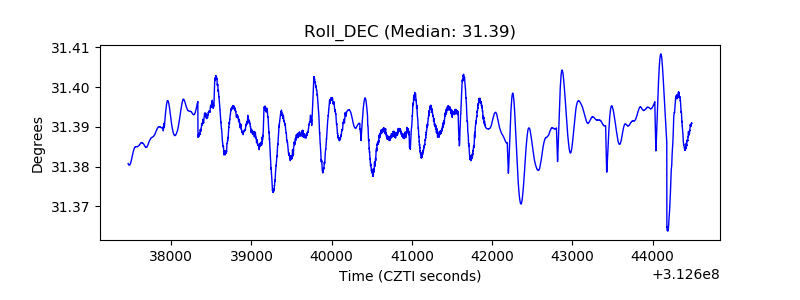

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
