| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_049T01_9000003344_22536cztM0_level2.evt | modeM0/AS1A07_049T01_9000003344_22536cztM0_level2_quad_clean.evt |
| Size (bytes) | 427,092,480 | 90,023,040 |
| Size | 407.3 MB | 85.9 MB |
| Events in quadrant A | 3,024,793 | 591,847 |
| Events in quadrant B | 3,365,239 | 597,462 |
| Events in quadrant C | 3,063,247 | 564,020 |
| Events in quadrant D | 3,073,246 | 553,910 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12674 | 1 |
| B | 0 | 13769 | 1 |
| C | 0 | 12669 | 1 |
| D | 0 | 13011 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6000 | 88 | 1.466667% |
| B | 6000 | 152 | 2.533333% |
| C | 6000 | 118 | 1.966667% |
| D | 6001 | 82 | 1.366439% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

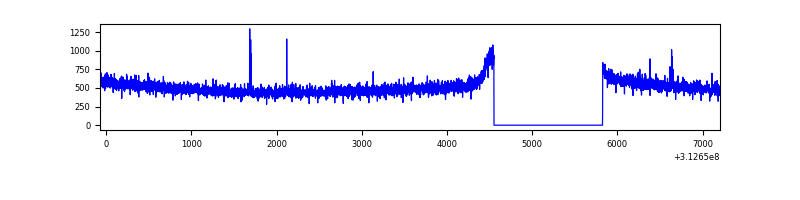

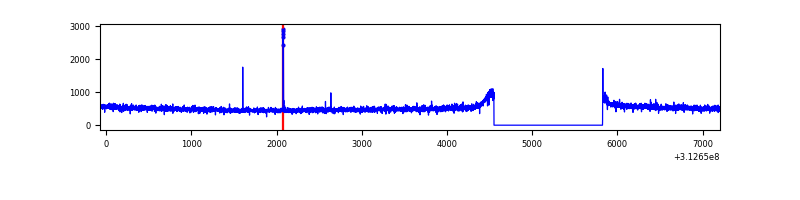

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7275 | 6000 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7275 | 6000 | 20 | 20 | 0.27% | 0.33% |  |
| C | 7275 | 6000 | 5 | 5 | 0.07% | 0.08% |  |
| D | 7276 | 6001 | 16 | 16 | 0.22% | 0.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 2 | 79 | 10568 | 63.02 | 782 | 766 | 155.5 |
| A | 13 | 254 | 9573 | 56.62 | 782 | 766 | 155.5 |
| A | 0 | 226 | 6928 | 39.62 | 782 | 766 | 155.5 |
| B | 15 | 33 | 283844 | 1941.88 | 777 | 759 | 145.8 |
| B | 0 | 228 | 17329 | 113.66 | 777 | 759 | 145.8 |
| B | 12 | 111 | 16598 | 108.65 | 777 | 759 | 145.8 |
| C | 14 | 238 | 120744 | 687.23 | 749 | 754 | 174.6 |
| C | 10 | 22 | 19396 | 106.77 | 749 | 754 | 174.6 |
| C | 0 | 10 | 6895 | 35.17 | 749 | 754 | 174.6 |
| D | 12 | 227 | 72655 | 389.76 | 764 | 743 | 184.5 |
| D | 5 | 32 | 65234 | 349.54 | 764 | 743 | 184.5 |
| D | 2 | 234 | 23863 | 125.31 | 764 | 743 | 184.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

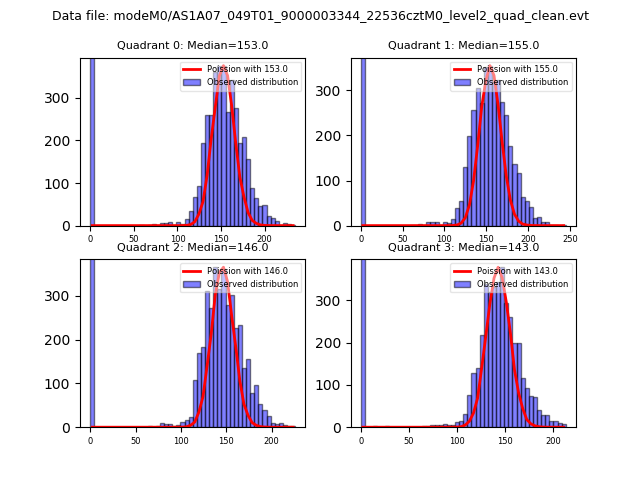

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

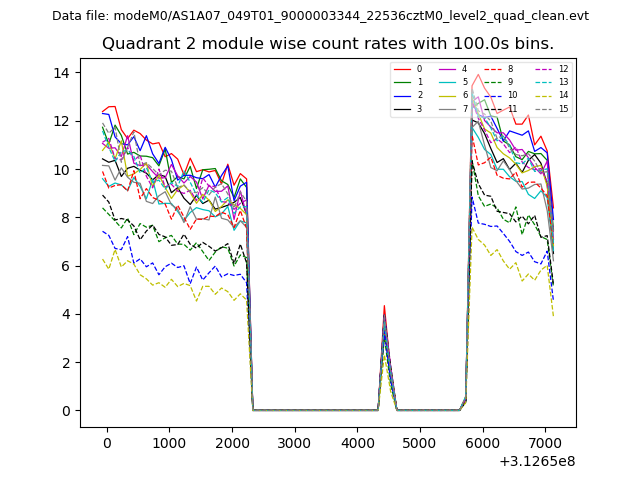

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

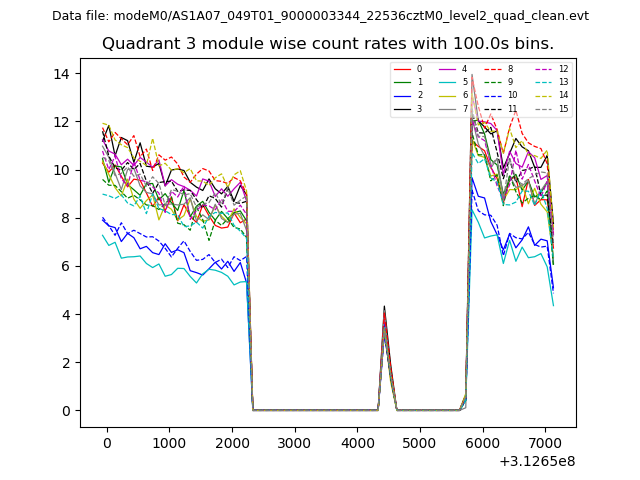

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

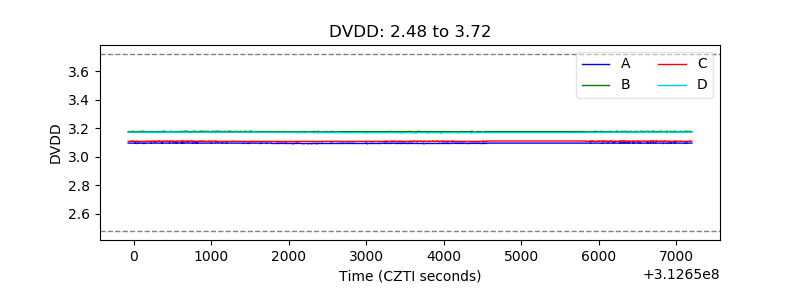

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

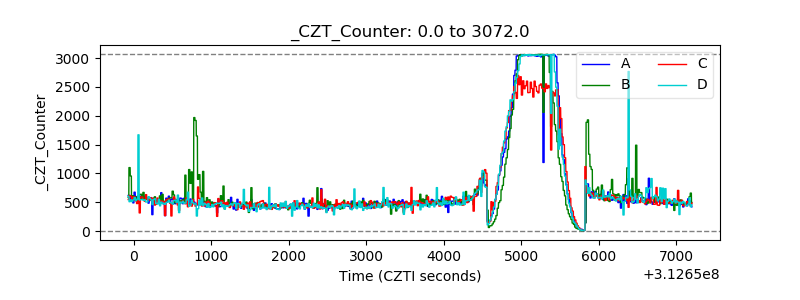

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

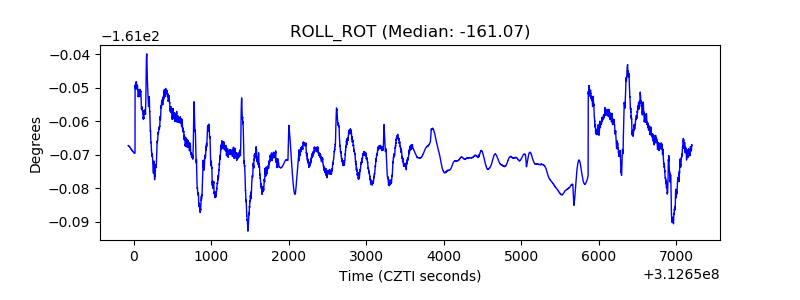

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
