| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_049T01_9000003344_22537cztM0_level2.evt | modeM0/AS1A07_049T01_9000003344_22537cztM0_level2_quad_clean.evt |
| Size (bytes) | 473,443,200 | 95,567,040 |
| Size | 451.5 MB | 91.1 MB |
| Events in quadrant A | 3,138,864 | 628,786 |
| Events in quadrant B | 3,458,416 | 641,213 |
| Events in quadrant C | 3,214,284 | 608,299 |
| Events in quadrant D | 4,104,728 | 582,109 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13158 | 2 |
| B | 0 | 14196 | 2 |
| C | 0 | 13228 | 2 |
| D | 0 | 16373 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6215 | 62 | 0.997586% |
| B | 6215 | 142 | 2.284795% |
| C | 6215 | 104 | 1.673371% |
| D | 6215 | 200 | 3.218021% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7540 | 6215 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7540 | 6215 | 26 | 26 | 0.34% | 0.42% |  |
| C | 7540 | 6215 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7539 | 6214 | 188 | 188 | 2.49% | 3.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10847 | 61.96 | 813 | 798 | 162.2 |
| A | 0 | 226 | 7169 | 39.28 | 813 | 798 | 162.2 |
| A | 3 | 137 | 6596 | 35.75 | 813 | 798 | 162.2 |
| B | 15 | 33 | 261842 | 1737.5 | 810 | 791 | 150.2 |
| B | 12 | 111 | 17218 | 109.33 | 810 | 791 | 150.2 |
| B | 11 | 111 | 15117 | 95.35 | 810 | 791 | 150.2 |
| C | 14 | 238 | 124942 | 681.6 | 785 | 791 | 182.1 |
| C | 0 | 10 | 18162 | 95.37 | 785 | 791 | 182.1 |
| C | 13 | 61 | 5354 | 25.05 | 785 | 791 | 182.1 |
| D | 1 | 52 | 713998 | 3714.56 | 794 | 774 | 192.0 |
| D | 12 | 227 | 267592 | 1389.62 | 794 | 774 | 192.0 |
| D | 5 | 32 | 92743 | 478.99 | 794 | 774 | 192.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

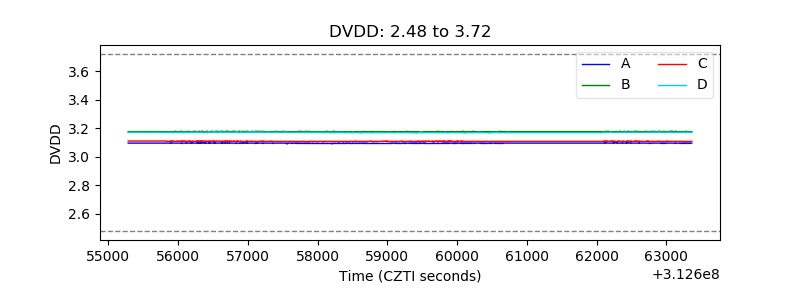

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

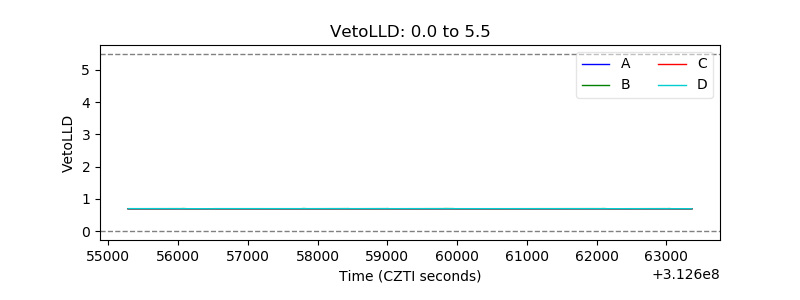

| Veto LLD |  |
| Alpha Counter |  |

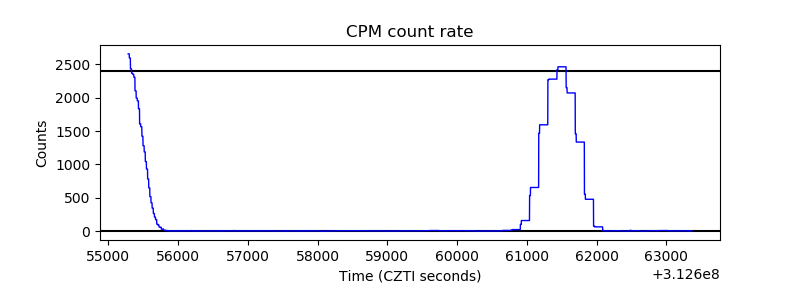

| _CPM_Rate |  |

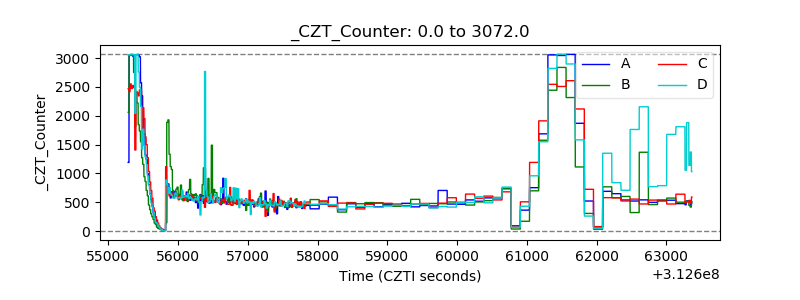

| CZT Counter |  |
| +2.5 Volts monitor |  |

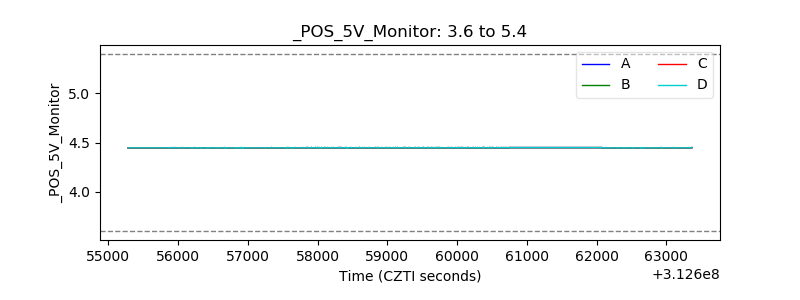

| +5 Volts monitor |  |

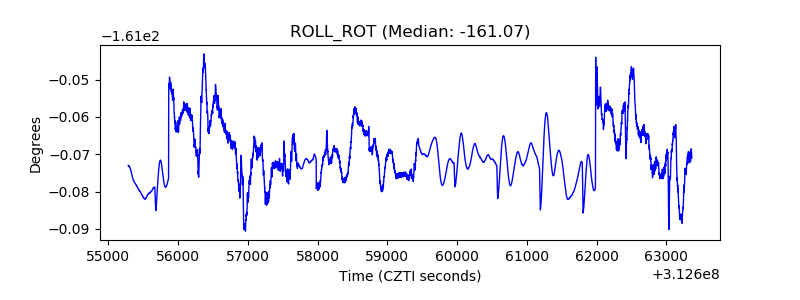

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

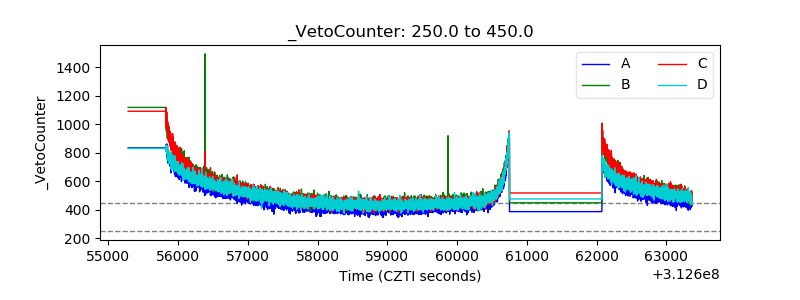

| Veto Counter |  |
