| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_148T05_9000003346_22546cztM0_level2.evt | modeM0/AS1A07_148T05_9000003346_22546cztM0_level2_quad_clean.evt |
| Size (bytes) | 455,460,480 | 81,601,920 |
| Size | 434.4 MB | 77.8 MB |
| Events in quadrant A | 2,966,907 | 514,323 |
| Events in quadrant B | 3,113,298 | 525,730 |
| Events in quadrant C | 3,133,244 | 504,794 |
| Events in quadrant D | 4,153,301 | 487,737 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12742 | 1 |
| B | 0 | 13077 | 1 |
| C | 0 | 13160 | 1 |
| D | 0 | 16463 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6278 | 59 | 0.939790% |
| B | 6279 | 74 | 1.178532% |
| C | 6279 | 90 | 1.433349% |
| D | 6279 | 403 | 6.418219% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7177 | 6277 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7178 | 6278 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7178 | 6278 | 15 | 15 | 0.21% | 0.24% |  |
| D | 7178 | 6278 | 317 | 317 | 4.42% | 5.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10259 | 61.77 | 768 | 751 | 153.9 |
| A | 3 | 137 | 6595 | 37.97 | 768 | 751 | 153.9 |
| A | 0 | 226 | 6564 | 37.76 | 768 | 751 | 153.9 |
| B | 15 | 33 | 109041 | 732.11 | 761 | 740 | 147.9 |
| B | 12 | 111 | 17891 | 115.94 | 761 | 740 | 147.9 |
| B | 11 | 111 | 16057 | 103.54 | 761 | 740 | 147.9 |
| C | 0 | 207 | 129307 | 739.74 | 735 | 740 | 173.8 |
| C | 14 | 238 | 115313 | 659.22 | 735 | 740 | 173.8 |
| C | 10 | 22 | 21662 | 120.38 | 735 | 740 | 173.8 |
| D | 1 | 52 | 1159659 | 6542.63 | 730 | 710 | 177.1 |
| D | 12 | 33 | 101877 | 571.12 | 730 | 710 | 177.1 |
| D | 7 | 223 | 72154 | 403.32 | 730 | 710 | 177.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

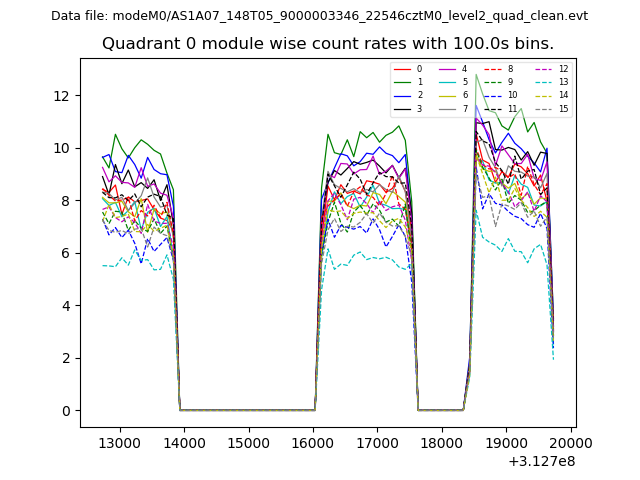

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

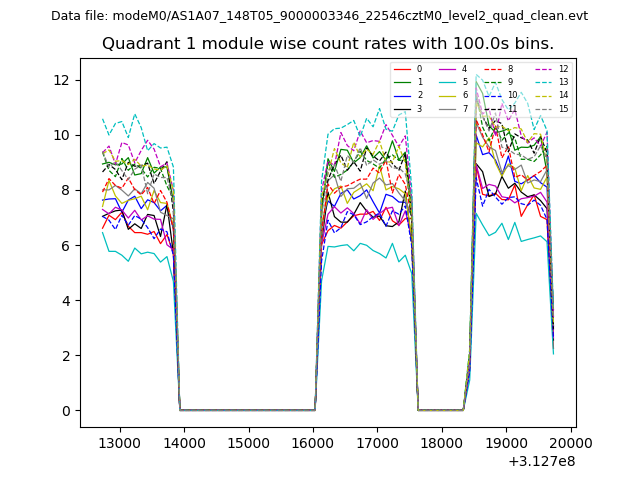

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

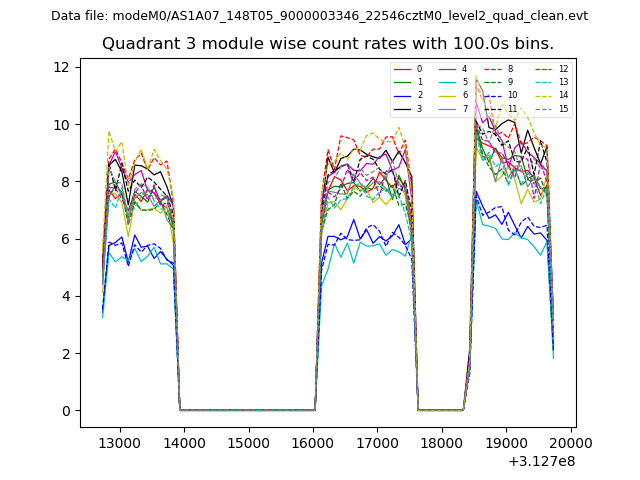

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

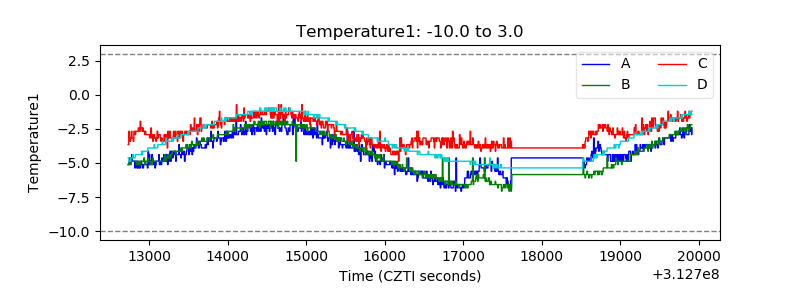

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

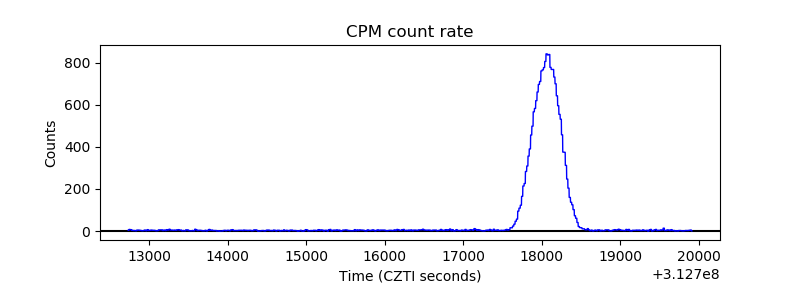

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

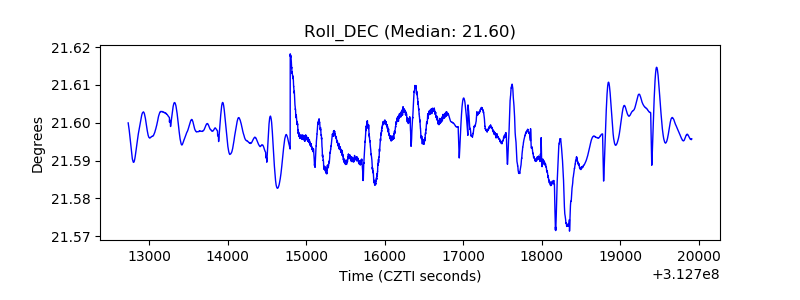

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
