| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_148T05_9000003346_22554cztM0_level2.evt | modeM0/AS1A07_148T05_9000003346_22554cztM0_level2_quad_clean.evt |
| Size (bytes) | 472,867,200 | 90,201,600 |
| Size | 451.0 MB | 86.0 MB |
| Events in quadrant A | 3,274,759 | 568,790 |
| Events in quadrant B | 3,553,870 | 580,743 |
| Events in quadrant C | 3,491,138 | 562,626 |
| Events in quadrant D | 3,543,886 | 550,488 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14006 | 2 |
| B | 0 | 14907 | 2 |
| C | 0 | 14609 | 2 |
| D | 0 | 15116 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6722 | 64 | 0.952098% |
| B | 6723 | 142 | 2.112152% |
| C | 6723 | 146 | 2.171650% |
| D | 6722 | 90 | 1.338887% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

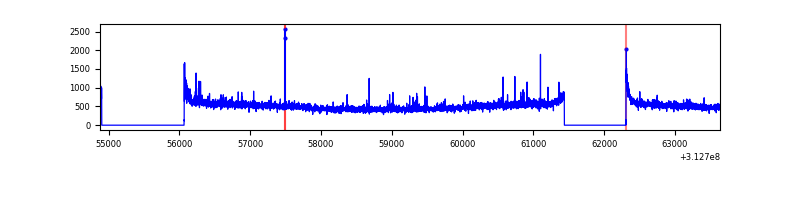

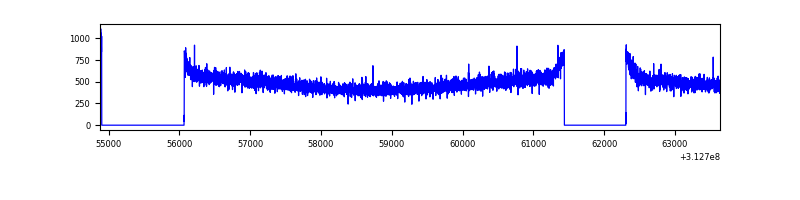

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8757 | 6724 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8758 | 6725 | 7 | 7 | 0.08% | 0.10% |  |
| C | 8758 | 6725 | 3 | 3 | 0.03% | 0.04% |  |
| D | 8757 | 6724 | 64 | 64 | 0.73% | 0.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11089 | 60.33 | 848 | 831 | 170.0 |
| A | 0 | 226 | 7423 | 38.77 | 848 | 831 | 170.0 |
| A | 3 | 137 | 7229 | 37.63 | 848 | 831 | 170.0 |
| B | 15 | 33 | 213791 | 1310.28 | 846 | 824 | 162.5 |
| B | 12 | 111 | 19231 | 113.25 | 846 | 824 | 162.5 |
| B | 11 | 111 | 17214 | 100.84 | 846 | 824 | 162.5 |
| C | 14 | 238 | 129459 | 672.18 | 821 | 829 | 191.4 |
| C | 0 | 207 | 116571 | 604.83 | 821 | 829 | 191.4 |
| C | 0 | 10 | 32415 | 165.06 | 821 | 829 | 191.4 |
| D | 13 | 172 | 273898 | 1343.68 | 832 | 809 | 203.2 |
| D | 13 | 249 | 82656 | 402.71 | 832 | 809 | 203.2 |
| D | 2 | 234 | 28656 | 137.02 | 832 | 809 | 203.2 |

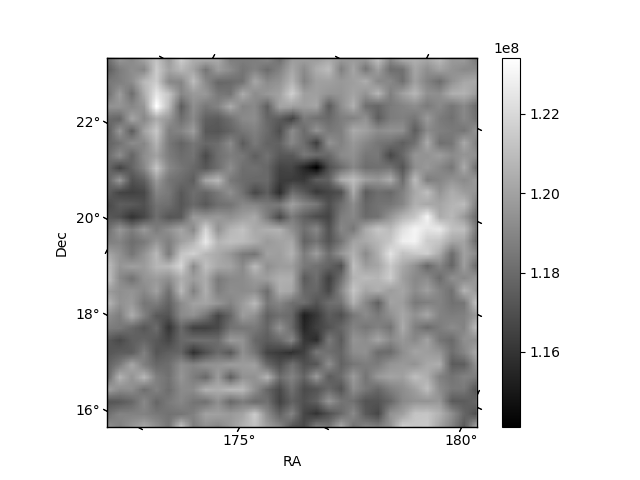

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

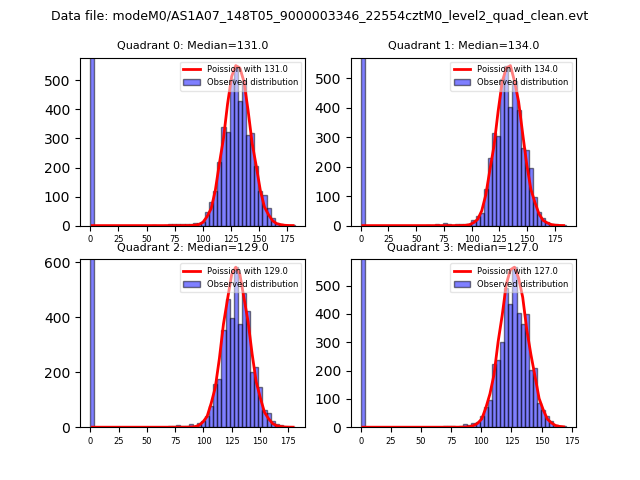

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

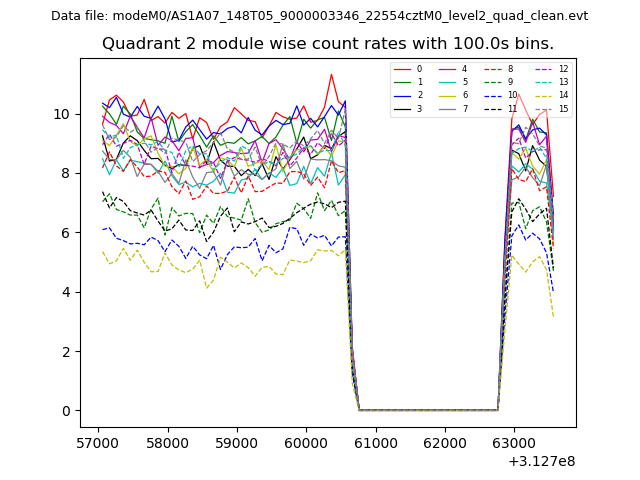

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

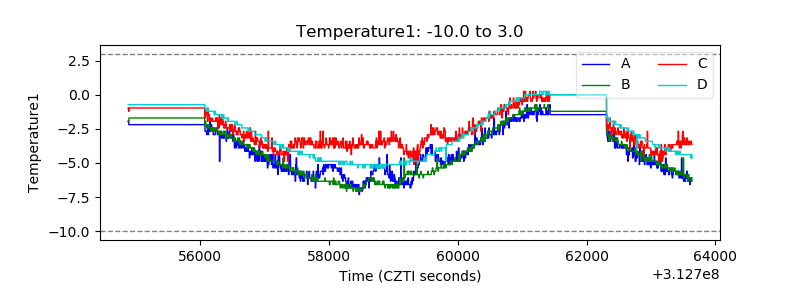

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

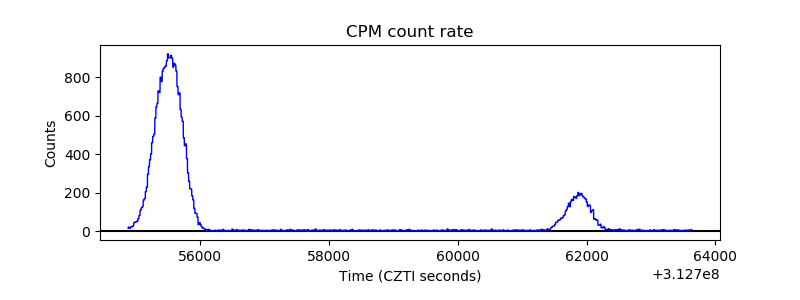

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

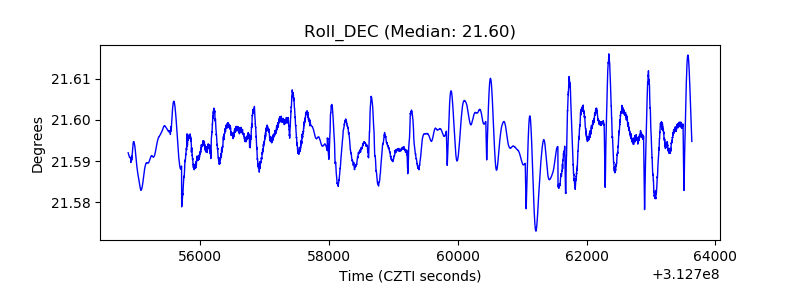

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
