| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_148T05_9000003346_22563cztM0_level2.evt | modeM0/AS1A07_148T05_9000003346_22563cztM0_level2_quad_clean.evt |
| Size (bytes) | 463,717,440 | 85,052,160 |
| Size | 442.2 MB | 81.1 MB |
| Events in quadrant A | 3,301,249 | 535,878 |
| Events in quadrant B | 3,330,914 | 546,267 |
| Events in quadrant C | 3,368,608 | 526,552 |
| Events in quadrant D | 3,601,544 | 513,501 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13813 | 2 |
| B | 0 | 13823 | 2 |
| C | 0 | 13953 | 2 |
| D | 0 | 14773 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6507 | 52 | 0.799139% |
| B | 6507 | 55 | 0.845244% |
| C | 6507 | 90 | 1.383126% |
| D | 6506 | 69 | 1.060559% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7632 | 6508 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7632 | 6508 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7632 | 6508 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7631 | 6507 | 25 | 25 | 0.33% | 0.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10711 | 57.84 | 855 | 838 | 170.7 |
| A | 0 | 226 | 7447 | 38.72 | 855 | 838 | 170.7 |
| A | 3 | 137 | 6996 | 36.07 | 855 | 838 | 170.7 |
| B | 12 | 111 | 19001 | 113.17 | 844 | 824 | 160.6 |
| B | 11 | 111 | 17124 | 101.49 | 844 | 824 | 160.6 |
| B | 0 | 190 | 14913 | 87.72 | 844 | 824 | 160.6 |
| C | 14 | 238 | 130654 | 676.92 | 824 | 831 | 191.8 |
| C | 10 | 22 | 12309 | 59.85 | 824 | 831 | 191.8 |
| C | 0 | 10 | 6752 | 30.87 | 824 | 831 | 191.8 |
| D | 1 | 52 | 304170 | 1489.3 | 836 | 813 | 203.7 |
| D | 7 | 223 | 56330 | 272.55 | 836 | 813 | 203.7 |
| D | 13 | 172 | 38198 | 183.54 | 836 | 813 | 203.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

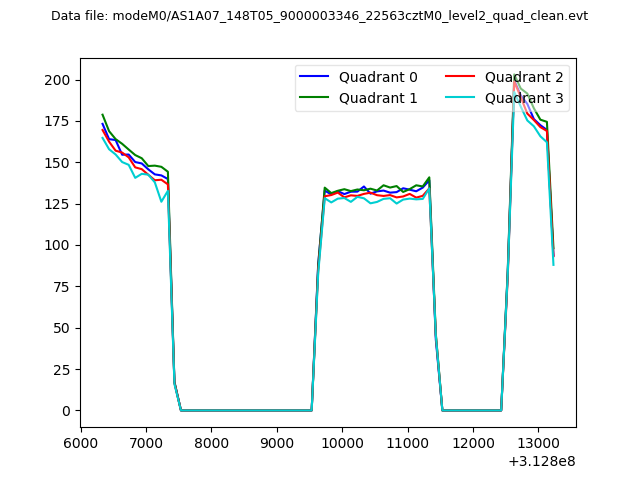

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

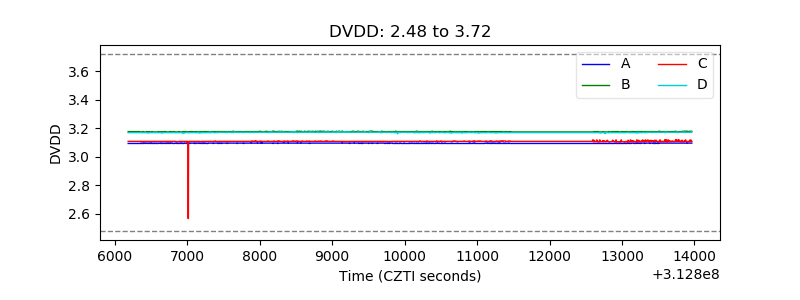

| D_VDD |  |

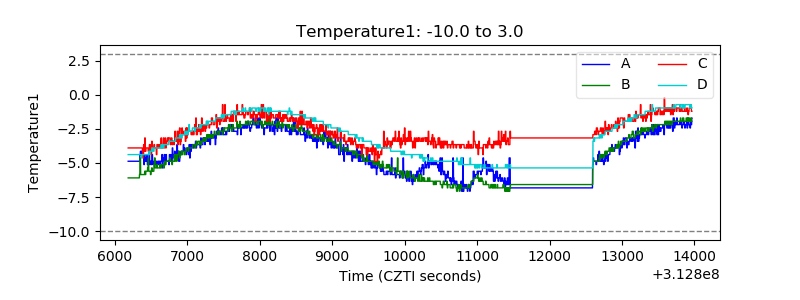

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

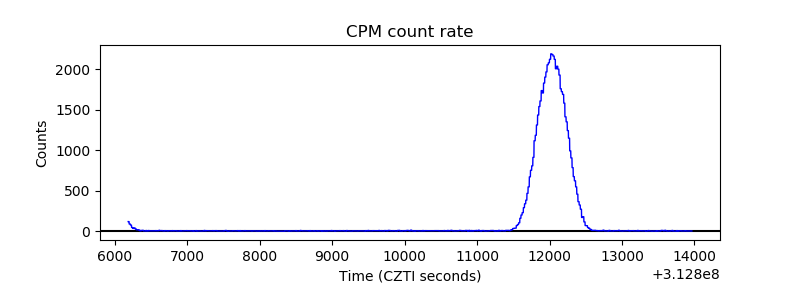

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

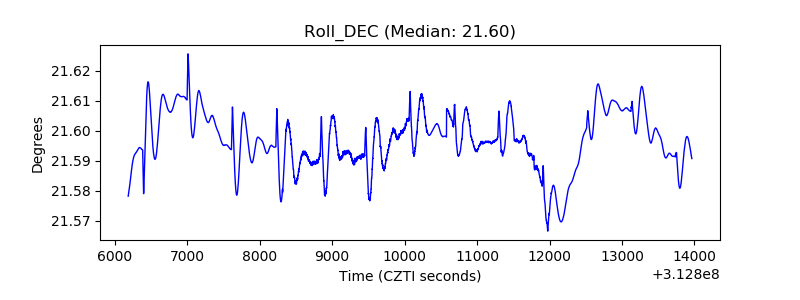

| _Roll_DEC |  |

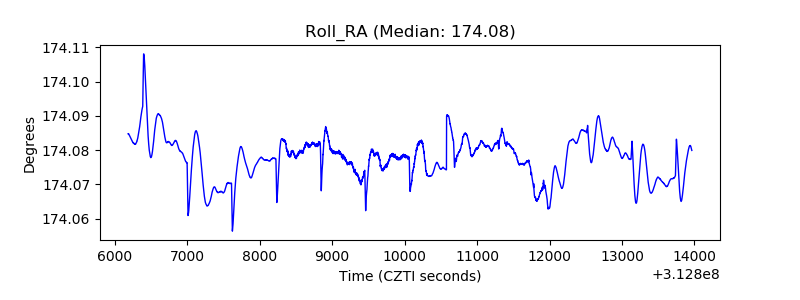

| _Roll_RA |  |
| Veto Counter |  |
