| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_054T01_9000003348_22568cztM0_level2.evt | modeM0/AS1A07_054T01_9000003348_22568cztM0_level2_quad_clean.evt |
| Size (bytes) | 268,496,640 | 66,470,400 |
| Size | 256.1 MB | 63.4 MB |
| Events in quadrant A | 1,938,075 | 438,865 |
| Events in quadrant B | 2,008,372 | 442,390 |
| Events in quadrant C | 1,920,136 | 433,084 |
| Events in quadrant D | 1,998,625 | 423,508 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 78 | 0 |
| B | 0 | 78 | 0 |
| C | 0 | 78 | 0 |
| D | 0 | 78 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8255 | 1 |
| B | 0 | 8488 | 1 |
| C | 0 | 8142 | 1 |
| D | 0 | 8499 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3900 | 26 | 0.666667% |
| B | 3900 | 98 | 2.512821% |
| C | 3900 | 79 | 2.025641% |
| D | 3900 | 71 | 1.820513% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4895 | 3901 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4895 | 3901 | 1 | 1 | 0.02% | 0.03% |  |
| C | 4895 | 3901 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4895 | 3901 | 25 | 25 | 0.51% | 0.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 34 | 73375 | 751.83 | 483 | 474 | 97.0 |
| A | 13 | 254 | 6815 | 65.39 | 483 | 474 | 97.0 |
| A | 0 | 226 | 4209 | 38.52 | 483 | 474 | 97.0 |
| B | 15 | 33 | 100712 | 1094.96 | 479 | 466 | 91.6 |
| B | 0 | 190 | 18645 | 198.56 | 479 | 466 | 91.6 |
| B | 12 | 111 | 10586 | 110.53 | 479 | 466 | 91.6 |
| C | 14 | 238 | 74316 | 687.35 | 465 | 468 | 107.4 |
| C | 10 | 222 | 22164 | 201.94 | 465 | 468 | 107.4 |
| C | 0 | 10 | 7706 | 67.37 | 465 | 468 | 107.4 |
| D | 1 | 52 | 89342 | 777.81 | 470 | 456 | 114.3 |
| D | 2 | 153 | 53116 | 460.81 | 470 | 456 | 114.3 |
| D | 7 | 223 | 24720 | 212.33 | 470 | 456 | 114.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

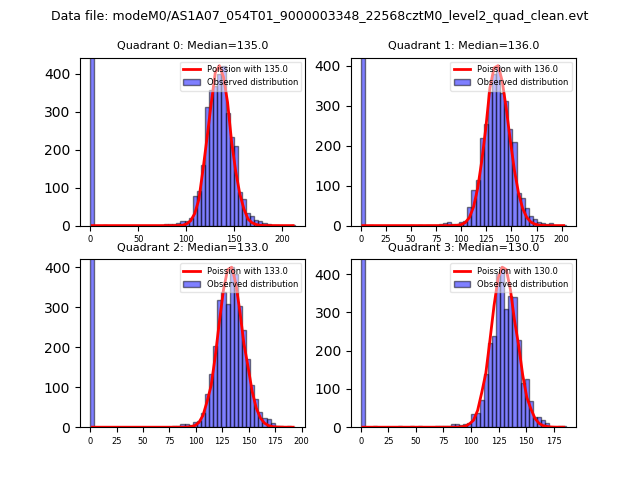

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

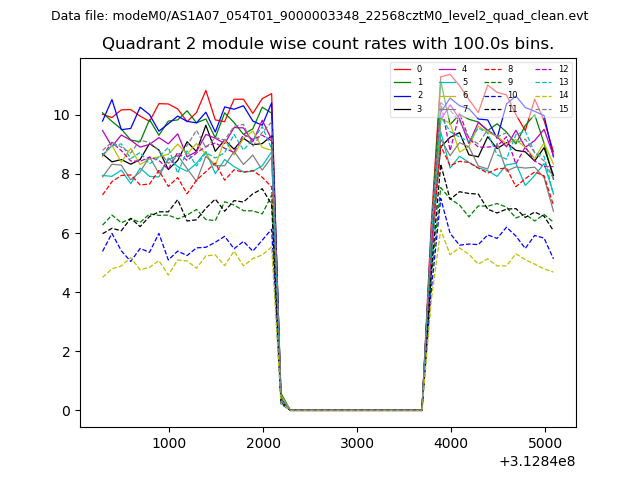

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

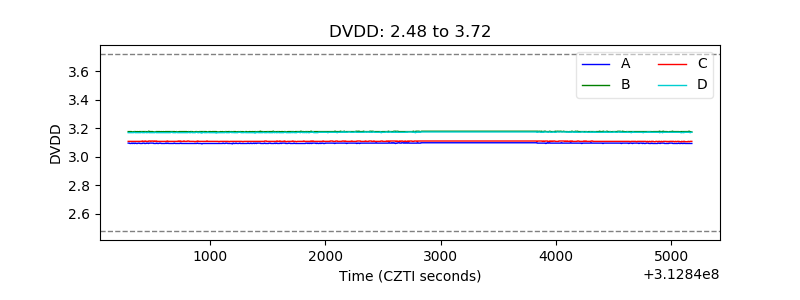

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

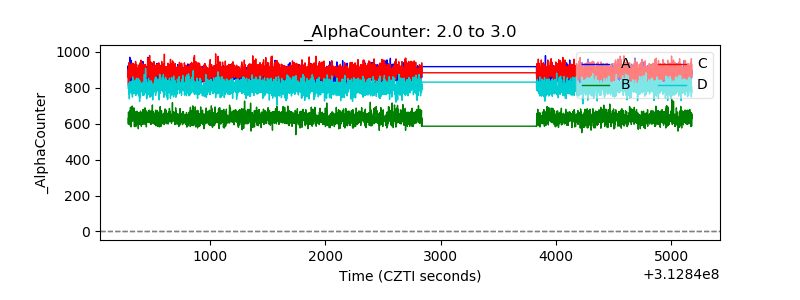

| Alpha Counter |  |
| _CPM_Rate |  |

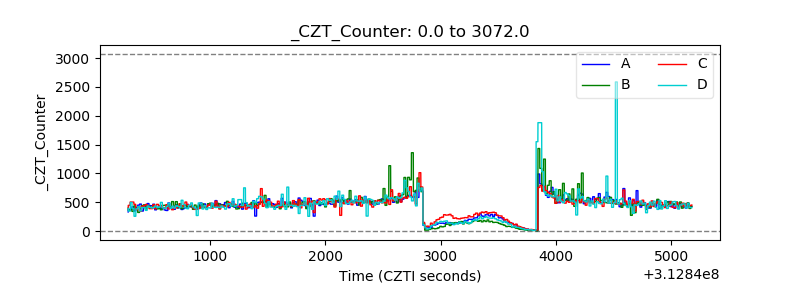

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

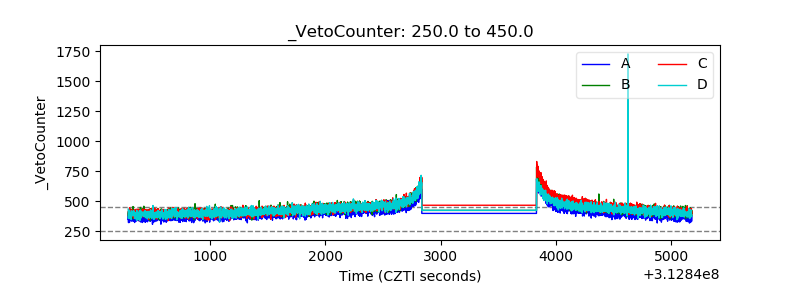

| Veto Counter |  |
