| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_054T01_9000003348_22580cztM0_level2.evt | modeM0/AS1A07_054T01_9000003348_22580cztM0_level2_quad_clean.evt |
| Size (bytes) | 440,026,560 | 116,547,840 |
| Size | 419.6 MB | 111.1 MB |
| Events in quadrant A | 3,030,273 | 794,277 |
| Events in quadrant B | 3,309,821 | 794,483 |
| Events in quadrant C | 3,199,665 | 771,338 |
| Events in quadrant D | 3,389,713 | 761,597 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12793 | 1 |
| B | 0 | 13874 | 1 |
| C | 0 | 13434 | 1 |
| D | 0 | 14107 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5837 | 60 | 1.027925% |
| B | 5838 | 110 | 1.884207% |
| C | 5838 | 118 | 2.021240% |
| D | 5838 | 83 | 1.421720% |

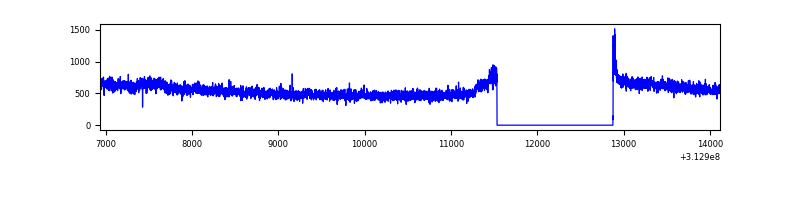

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7182 | 5838 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7183 | 5839 | 15 | 15 | 0.21% | 0.26% |  |
| C | 7183 | 5839 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7183 | 5839 | 33 | 33 | 0.46% | 0.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10135 | 60.09 | 784 | 771 | 155.8 |
| A | 0 | 226 | 6746 | 38.34 | 784 | 771 | 155.8 |
| A | 3 | 137 | 6072 | 34.02 | 784 | 771 | 155.8 |
| B | 15 | 33 | 174234 | 1213.4 | 779 | 762 | 143.0 |
| B | 0 | 245 | 37033 | 253.71 | 779 | 762 | 143.0 |
| B | 0 | 228 | 27631 | 187.94 | 779 | 762 | 143.0 |
| C | 14 | 238 | 123452 | 701.29 | 763 | 768 | 174.9 |
| C | 10 | 222 | 89805 | 508.96 | 763 | 768 | 174.9 |
| C | 0 | 10 | 9633 | 50.67 | 763 | 768 | 174.9 |
| D | 1 | 52 | 321619 | 1729.29 | 774 | 753 | 185.5 |
| D | 13 | 172 | 41579 | 220.03 | 774 | 753 | 185.5 |
| D | 12 | 33 | 31448 | 165.43 | 774 | 753 | 185.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

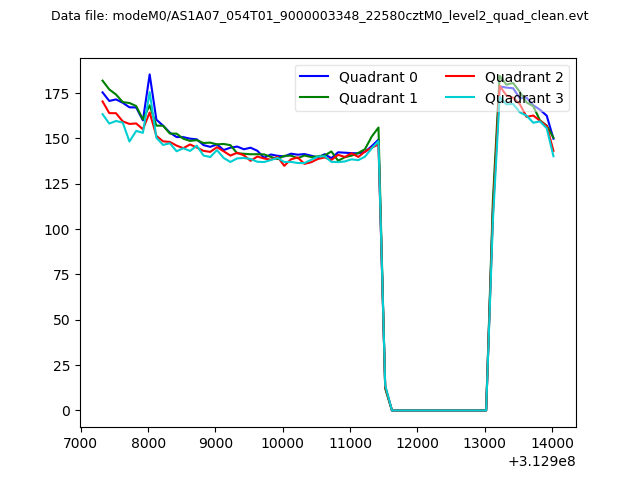

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

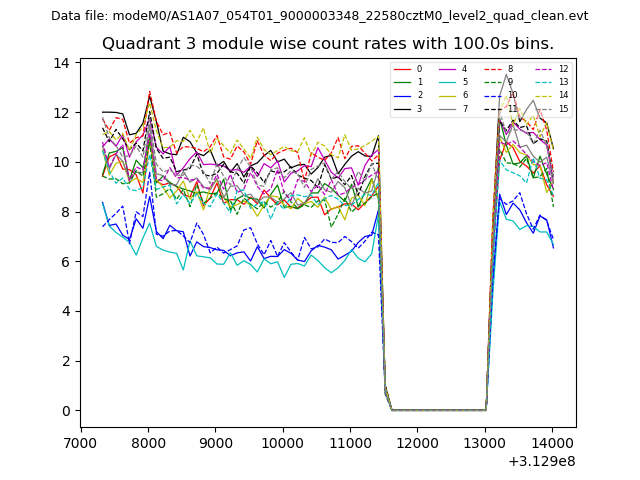

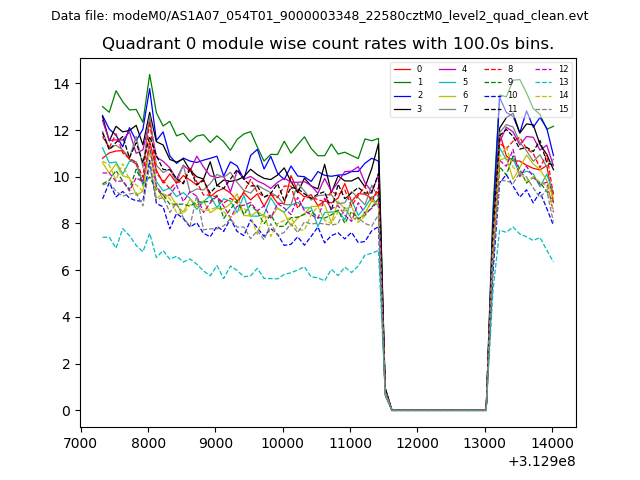

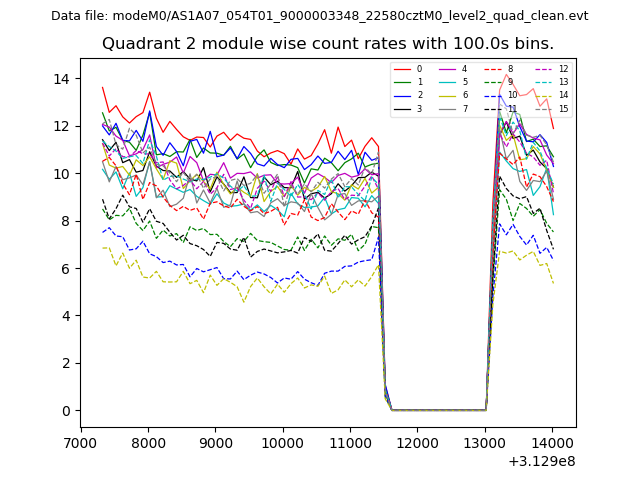

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

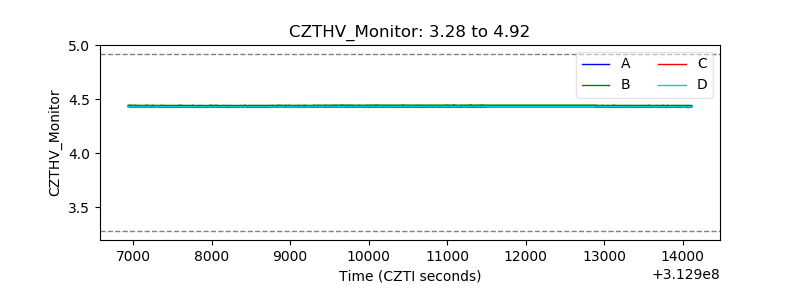

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

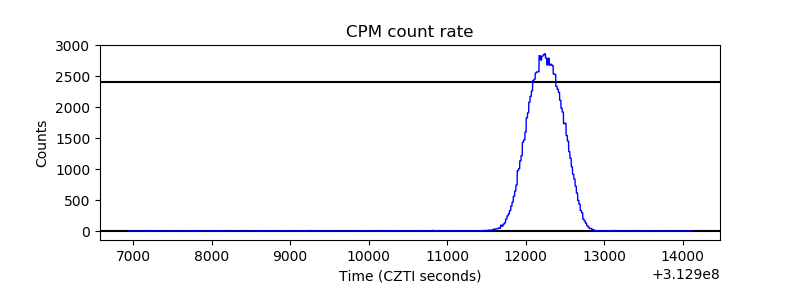

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

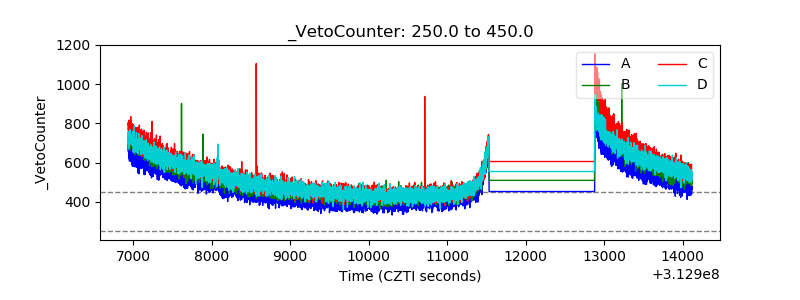

| Veto Counter |  |
