| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_001T01_9000003354_22598cztM0_level2.evt | modeM0/AS1C05_001T01_9000003354_22598cztM0_level2_quad_clean.evt |
| Size (bytes) | 434,664,000 | 125,991,360 |
| Size | 414.5 MB | 120.2 MB |
| Events in quadrant A | 2,988,359 | 864,746 |
| Events in quadrant B | 3,305,289 | 874,195 |
| Events in quadrant C | 3,018,916 | 823,891 |
| Events in quadrant D | 3,415,594 | 806,389 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13148 | 2 |
| B | 0 | 14050 | 2 |
| C | 0 | 13153 | 2 |
| D | 0 | 14514 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6407 | 19 | 0.296551% |
| B | 6407 | 47 | 0.733573% |
| C | 6407 | 52 | 0.811612% |
| D | 6407 | 54 | 0.842828% |

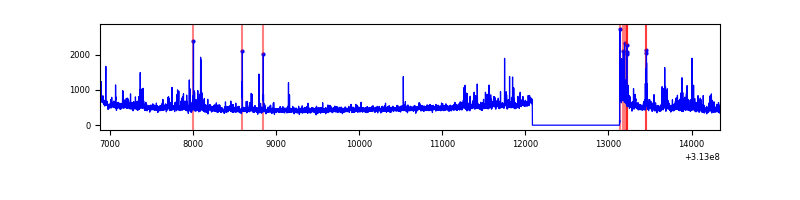

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7457 | 6408 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7457 | 6408 | 11 | 11 | 0.15% | 0.17% |  |
| C | 7457 | 6408 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7457 | 6408 | 41 | 41 | 0.55% | 0.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12078 | 73.31 | 767 | 754 | 154.5 |
| A | 14 | 238 | 12050 | 73.13 | 767 | 754 | 154.5 |
| A | 0 | 226 | 6759 | 38.88 | 767 | 754 | 154.5 |
| B | 0 | 190 | 91362 | 634.95 | 769 | 752 | 142.7 |
| B | 0 | 228 | 71162 | 493.39 | 769 | 752 | 142.7 |
| B | 10 | 247 | 52384 | 361.81 | 769 | 752 | 142.7 |
| C | 14 | 238 | 116640 | 685.57 | 726 | 729 | 169.1 |
| C | 10 | 222 | 40513 | 235.31 | 726 | 729 | 169.1 |
| C | 0 | 10 | 21392 | 122.21 | 726 | 729 | 169.1 |
| D | 1 | 52 | 217063 | 1215.12 | 733 | 712 | 178.0 |
| D | 13 | 249 | 92578 | 515.96 | 733 | 712 | 178.0 |
| D | 2 | 136 | 91943 | 512.39 | 733 | 712 | 178.0 |

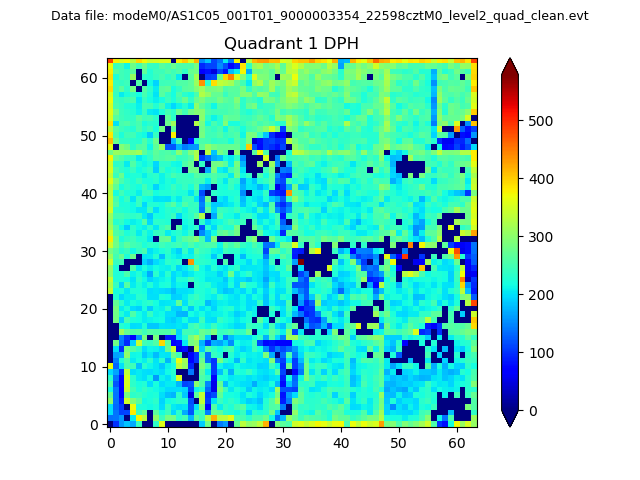

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

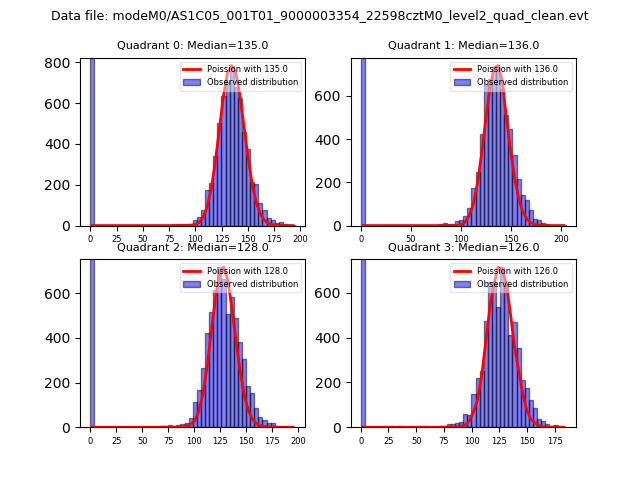

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

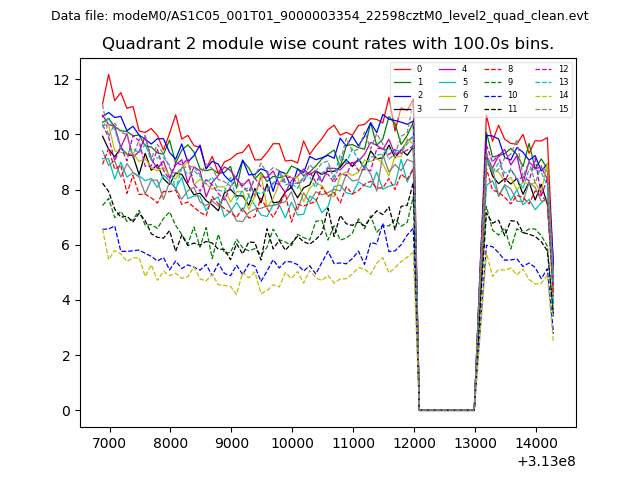

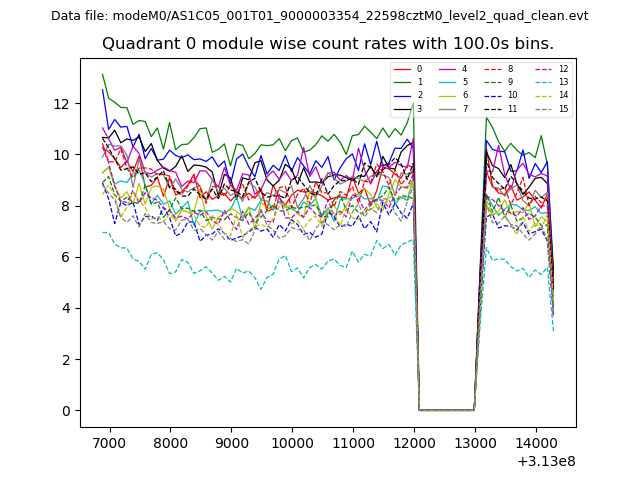

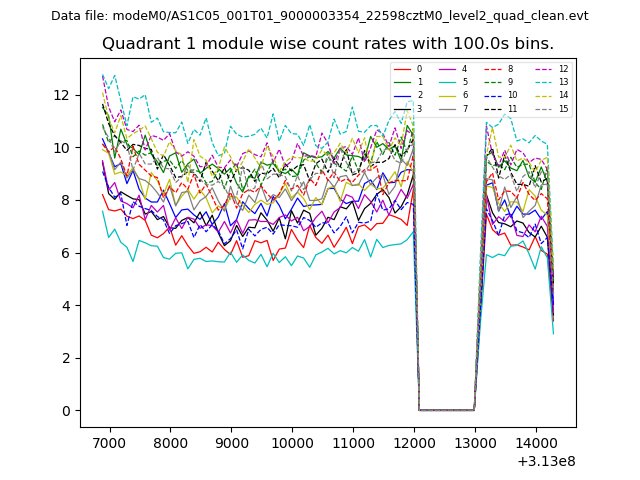

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

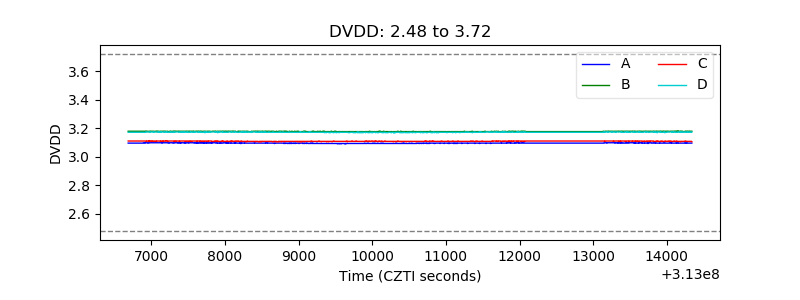

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

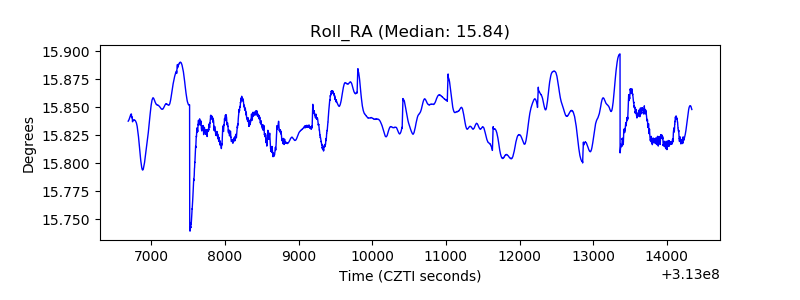

| _Roll_RA |  |
| Veto Counter |  |
