| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_049T01_9000003358_22609cztM0_level2.evt | modeM0/AS1A07_049T01_9000003358_22609cztM0_level2_quad_clean.evt |
| Size (bytes) | 479,404,800 | 108,815,040 |
| Size | 457.2 MB | 103.8 MB |
| Events in quadrant A | 3,374,186 | 734,412 |
| Events in quadrant B | 3,502,341 | 744,007 |
| Events in quadrant C | 3,362,742 | 688,531 |
| Events in quadrant D | 3,842,291 | 679,321 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13967 | 2 |
| B | 0 | 14411 | 2 |
| C | 0 | 13848 | 2 |
| D | 0 | 15463 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6438 | 82 | 1.273687% |
| B | 6438 | 90 | 1.397950% |
| C | 6438 | 101 | 1.568810% |
| D | 6437 | 123 | 1.910828% |

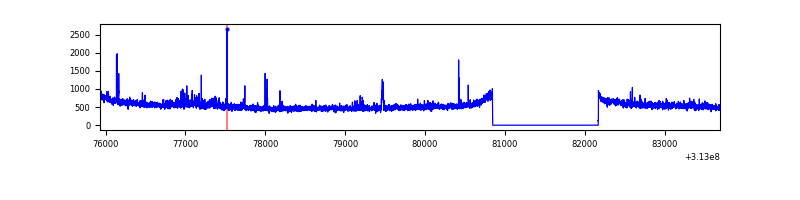

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7763 | 6439 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7763 | 6439 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7763 | 6439 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7762 | 6438 | 46 | 46 | 0.59% | 0.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10520 | 55.5 | 874 | 860 | 174.1 |
| A | 0 | 226 | 7733 | 39.49 | 874 | 860 | 174.1 |
| A | 3 | 137 | 7046 | 35.54 | 874 | 860 | 174.1 |
| B | 0 | 229 | 49415 | 303.14 | 864 | 845 | 160.2 |
| B | 0 | 230 | 27760 | 167.98 | 864 | 845 | 160.2 |
| B | 12 | 111 | 17946 | 106.73 | 864 | 845 | 160.2 |
| C | 14 | 238 | 132160 | 698.04 | 819 | 827 | 188.1 |
| C | 10 | 22 | 21969 | 112.37 | 819 | 827 | 188.1 |
| C | 0 | 10 | 8620 | 41.42 | 819 | 827 | 188.1 |
| D | 1 | 52 | 360166 | 1760.89 | 846 | 823 | 204.1 |
| D | 12 | 227 | 204897 | 1000.02 | 846 | 823 | 204.1 |
| D | 13 | 249 | 35836 | 171.57 | 846 | 823 | 204.1 |

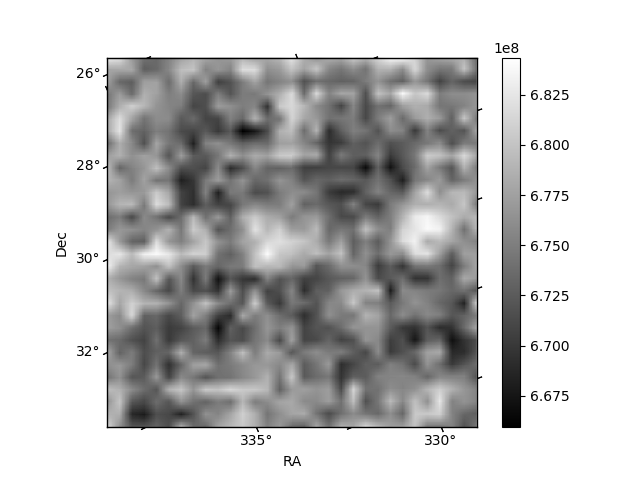

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

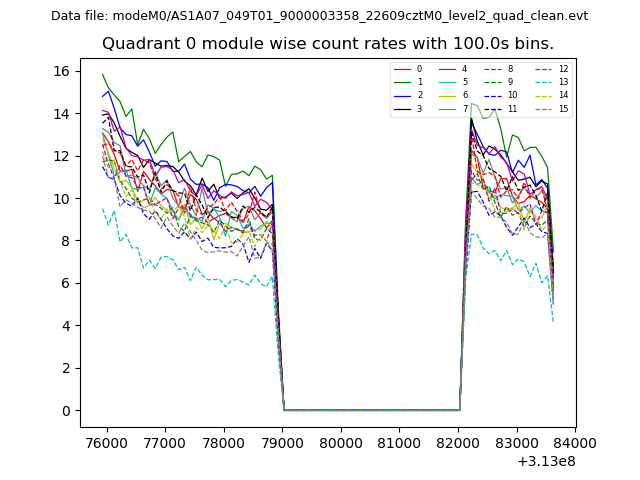

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

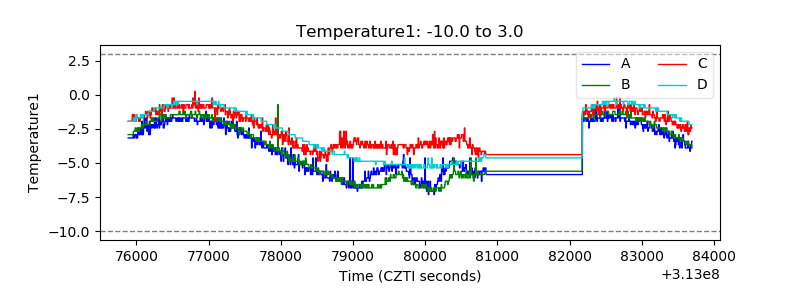

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

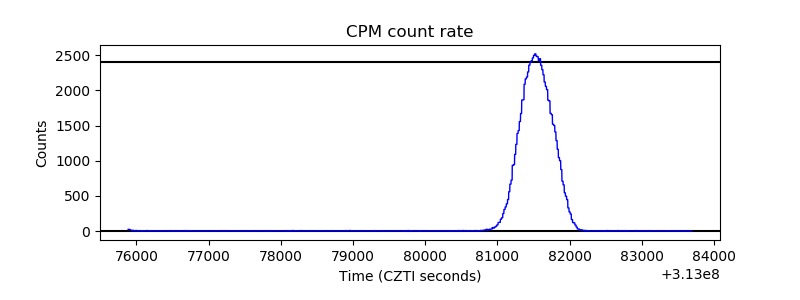

| _CPM_Rate |  |

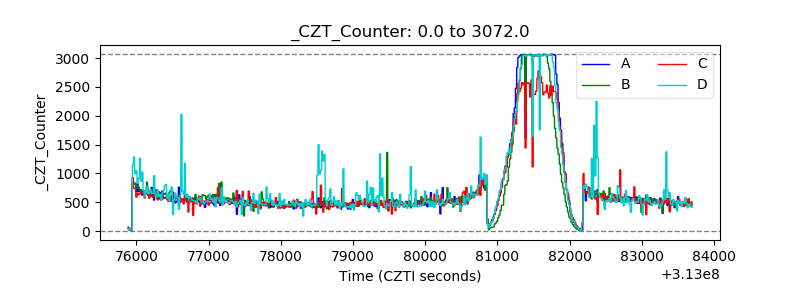

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

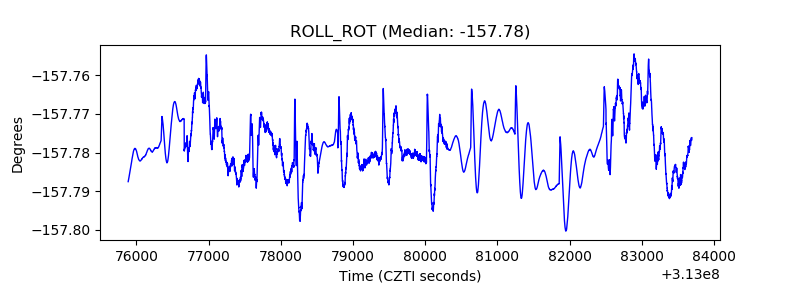

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

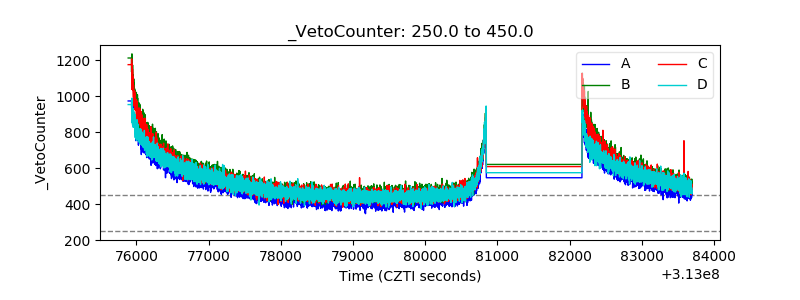

| Veto Counter |  |
