| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_049T01_9000003358_22610cztM0_level2.evt | modeM0/AS1A07_049T01_9000003358_22610cztM0_level2_quad_clean.evt |
| Size (bytes) | 461,952,000 | 100,054,080 |
| Size | 440.6 MB | 95.4 MB |
| Events in quadrant A | 3,291,749 | 659,881 |
| Events in quadrant B | 3,427,319 | 670,773 |
| Events in quadrant C | 3,338,875 | 629,219 |
| Events in quadrant D | 3,491,184 | 617,317 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13783 | 2 |
| B | 0 | 14188 | 2 |
| C | 0 | 13800 | 2 |
| D | 0 | 14576 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6494 | 86 | 1.324299% |
| B | 6494 | 98 | 1.509085% |
| C | 6494 | 111 | 1.709270% |
| D | 6494 | 115 | 1.770865% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7789 | 6495 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7789 | 6495 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7789 | 6495 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7789 | 6495 | 44 | 44 | 0.56% | 0.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10789 | 58.58 | 853 | 835 | 169.9 |
| A | 0 | 226 | 7365 | 38.43 | 853 | 835 | 169.9 |
| A | 3 | 137 | 6945 | 35.96 | 853 | 835 | 169.9 |
| B | 0 | 228 | 30508 | 185.21 | 851 | 830 | 160.2 |
| B | 12 | 111 | 18088 | 107.7 | 851 | 830 | 160.2 |
| B | 0 | 230 | 17782 | 105.79 | 851 | 830 | 160.2 |
| C | 14 | 238 | 131235 | 690.58 | 814 | 820 | 188.8 |
| C | 0 | 10 | 15272 | 76.53 | 814 | 820 | 188.8 |
| C | 10 | 22 | 15108 | 75.66 | 814 | 820 | 188.8 |
| D | 1 | 52 | 163106 | 810.25 | 834 | 812 | 200.3 |
| D | 7 | 38 | 157674 | 783.13 | 834 | 812 | 200.3 |
| D | 2 | 234 | 25586 | 123.68 | 834 | 812 | 200.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

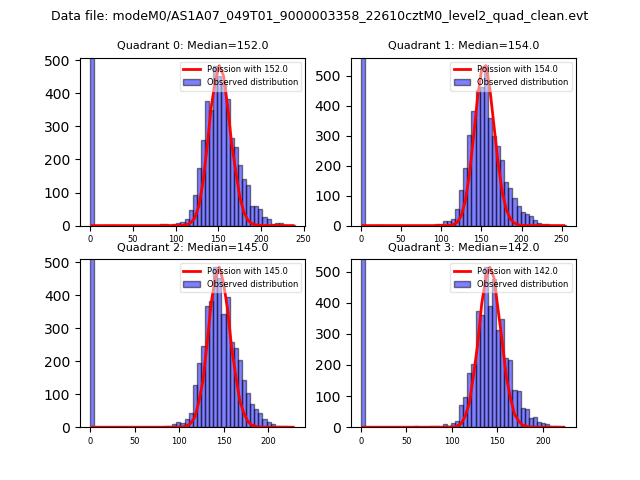

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

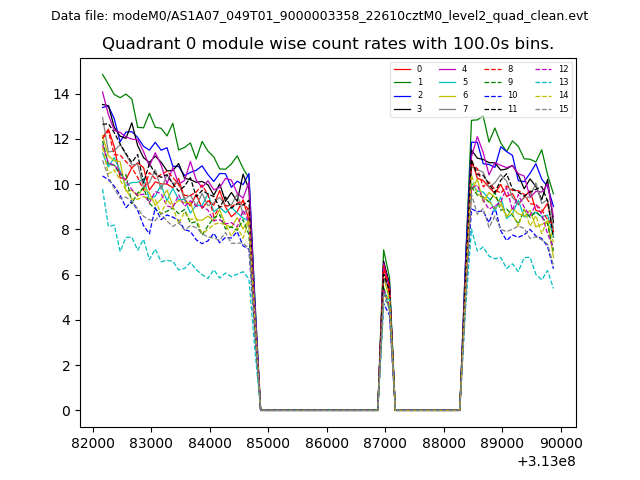

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

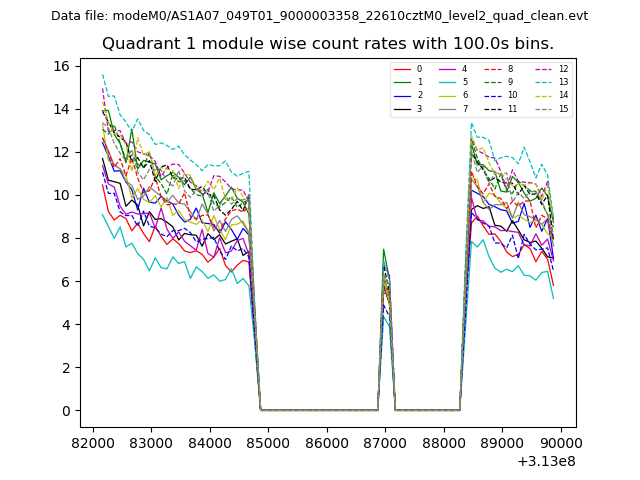

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
