| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_112T01_9000003360_22621cztM0_level2.evt | modeM0/AS1A07_112T01_9000003360_22621cztM0_level2_quad_clean.evt |
| Size (bytes) | 155,767,680 | 46,707,840 |
| Size | 148.6 MB | 44.5 MB |
| Events in quadrant A | 1,122,288 | 321,393 |
| Events in quadrant B | 1,123,207 | 327,347 |
| Events in quadrant C | 1,148,258 | 311,077 |
| Events in quadrant D | 1,182,008 | 305,789 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4558 | 1 |
| B | 0 | 4531 | 1 |
| C | 0 | 4672 | 1 |
| D | 0 | 4837 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 42 | 0 |
| B | 0 | 42 | 0 |
| C | 0 | 42 | 0 |
| D | 0 | 42 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2052 | 52 | 2.534113% |
| B | 2052 | 55 | 2.680312% |
| C | 2051 | 56 | 2.730375% |
| D | 2051 | 47 | 2.291565% |

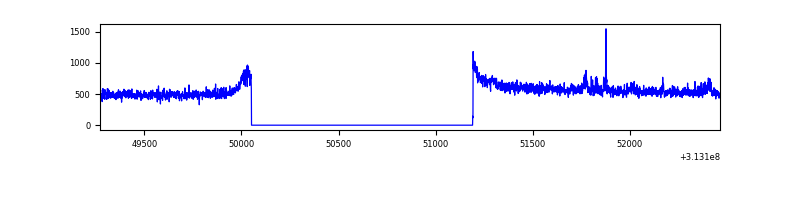

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3192 | 2053 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3192 | 2053 | 0 | 0 | 0.00% | 0.00% |  |
| C | 3191 | 2052 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3191 | 2052 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 2903 | 44.04 | 291 | 285 | 59.4 |
| A | 0 | 226 | 2548 | 38.07 | 291 | 285 | 59.4 |
| A | 3 | 137 | 2338 | 34.54 | 291 | 285 | 59.4 |
| B | 12 | 111 | 6584 | 113.49 | 286 | 280 | 55.5 |
| B | 11 | 111 | 5754 | 98.55 | 286 | 280 | 55.5 |
| B | 14 | 111 | 5294 | 90.26 | 286 | 280 | 55.5 |
| C | 14 | 238 | 43934 | 671.02 | 276 | 277 | 65.1 |
| C | 10 | 22 | 19848 | 300.81 | 276 | 277 | 65.1 |
| C | 10 | 222 | 5875 | 86.04 | 276 | 277 | 65.1 |
| D | 2 | 136 | 54183 | 776.84 | 281 | 272 | 69.4 |
| D | 12 | 227 | 52813 | 757.1 | 281 | 272 | 69.4 |
| D | 7 | 223 | 6835 | 94.57 | 281 | 272 | 69.4 |

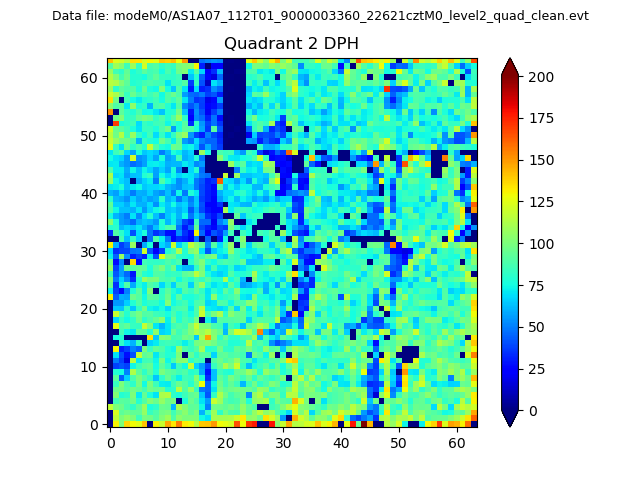

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

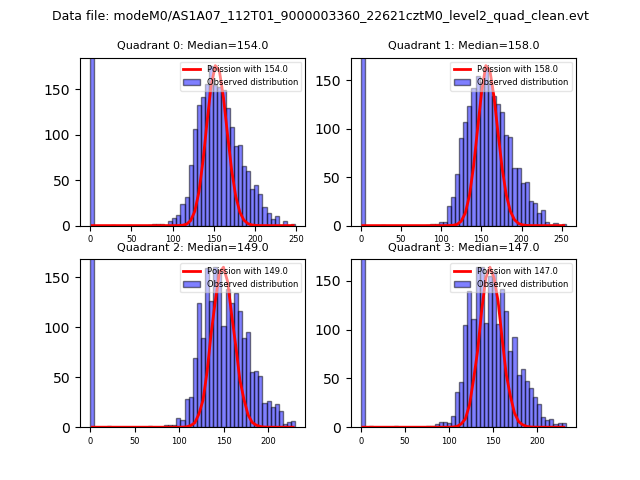

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

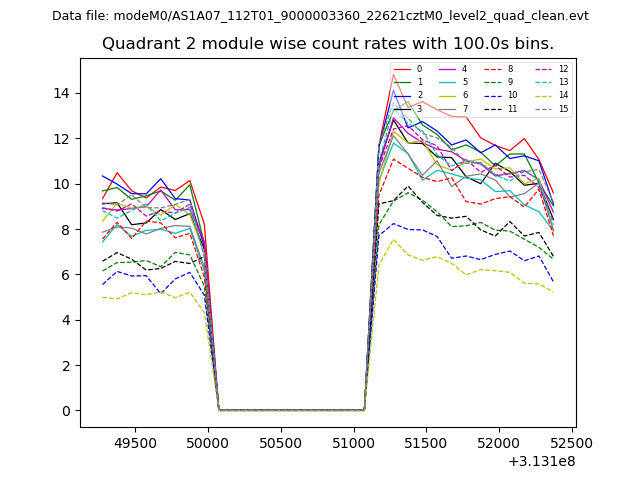

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

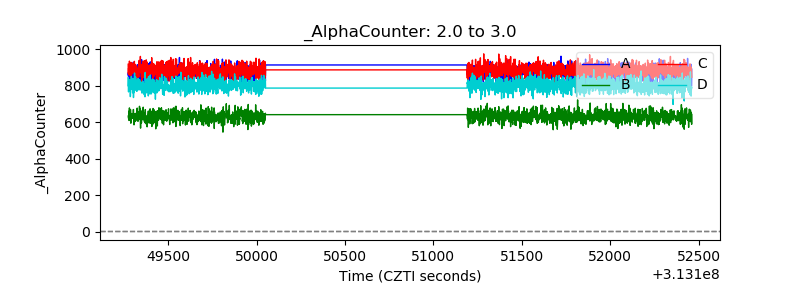

| Alpha Counter |  |
| _CPM_Rate |  |

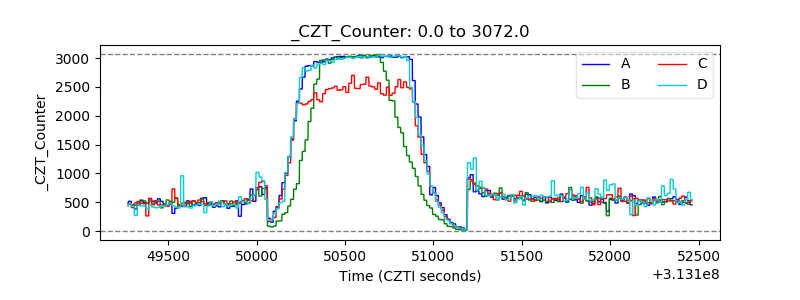

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

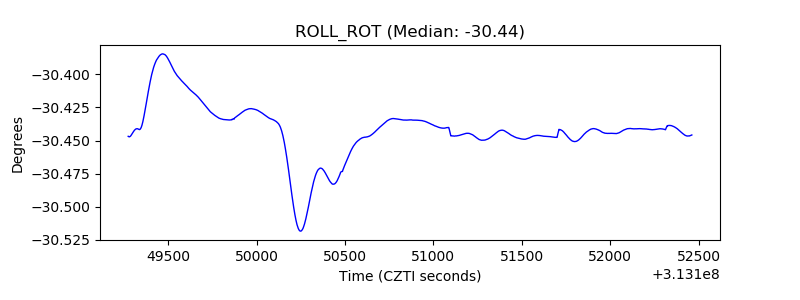

| _ROLL_ROT |  |

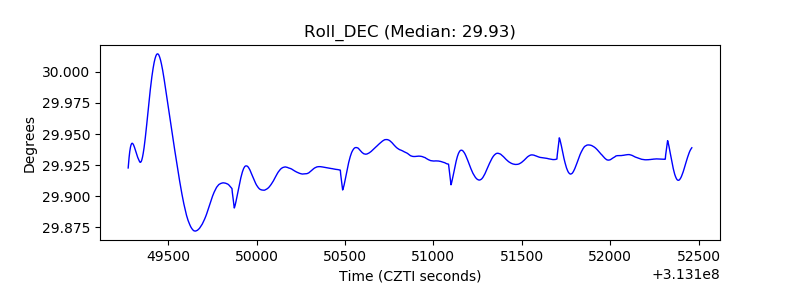

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
