| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_007T01_9000003362_22641cztM0_level2.evt | modeM0/AS1A08_007T01_9000003362_22641cztM0_level2_quad_clean.evt |
| Size (bytes) | 490,115,520 | 95,705,280 |
| Size | 467.4 MB | 91.3 MB |
| Events in quadrant A | 3,345,891 | 615,390 |
| Events in quadrant B | 4,077,865 | 618,517 |
| Events in quadrant C | 3,345,199 | 595,588 |
| Events in quadrant D | 3,606,916 | 589,363 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14291 | 2 |
| B | 0 | 16546 | 2 |
| C | 0 | 14234 | 2 |
| D | 0 | 15472 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6873 | 84 | 1.222174% |
| B | 6873 | 235 | 3.419176% |
| C | 6873 | 105 | 1.527717% |
| D | 6873 | 106 | 1.542267% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7658 | 6874 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7658 | 6874 | 99 | 99 | 1.29% | 1.44% |  |
| C | 7658 | 6874 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7658 | 6874 | 36 | 36 | 0.47% | 0.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 47 | 47195 | 271.1 | 852 | 832 | 171.0 |
| A | 13 | 254 | 11737 | 63.77 | 852 | 832 | 171.0 |
| A | 4 | 2 | 7757 | 40.49 | 852 | 832 | 171.0 |
| B | 0 | 228 | 378858 | 2387.09 | 842 | 825 | 158.4 |
| B | 0 | 190 | 178824 | 1123.98 | 842 | 825 | 158.4 |
| B | 15 | 33 | 101006 | 632.59 | 842 | 825 | 158.4 |
| C | 14 | 238 | 129448 | 681.24 | 814 | 819 | 188.8 |
| C | 0 | 10 | 25242 | 129.35 | 814 | 819 | 188.8 |
| C | 0 | 239 | 6962 | 32.53 | 814 | 819 | 188.8 |
| D | 12 | 233 | 293954 | 1443.81 | 827 | 802 | 203.0 |
| D | 1 | 52 | 68165 | 331.77 | 827 | 802 | 203.0 |
| D | 2 | 136 | 33149 | 159.31 | 827 | 802 | 203.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

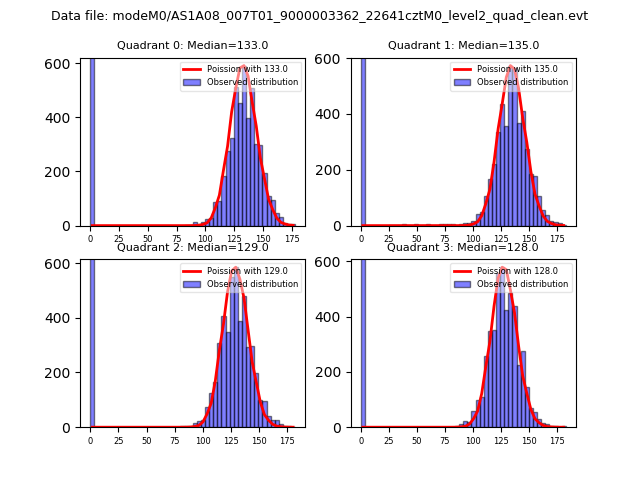

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

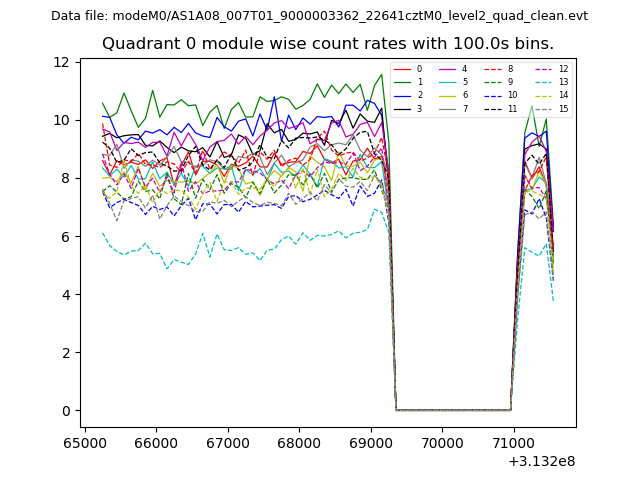

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

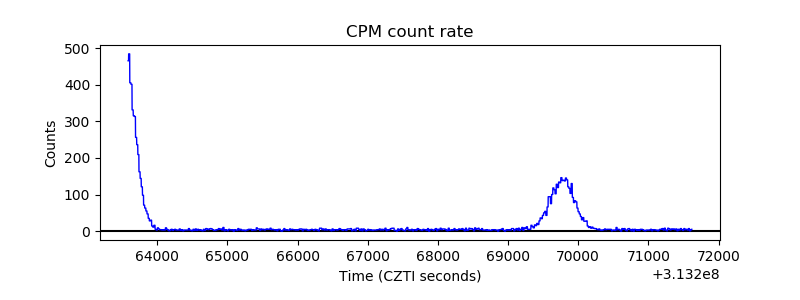

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

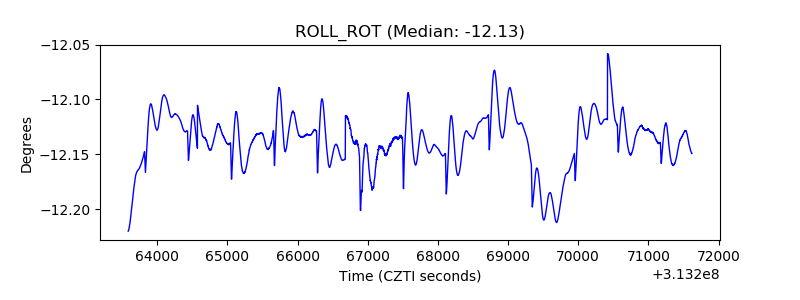

| _ROLL_ROT |  |
| _Roll_DEC |  |

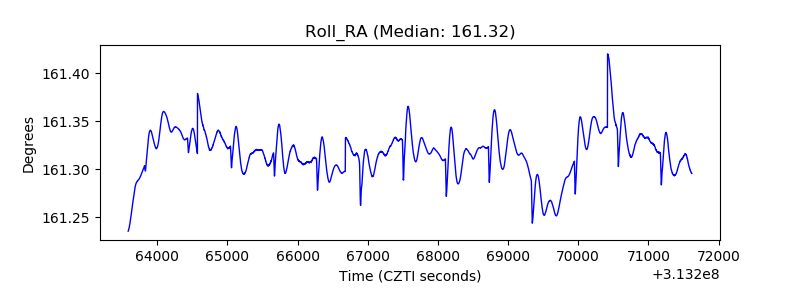

| _Roll_RA |  |
| Veto Counter |  |
