| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_007T01_9000003362_22653cztM0_level2.evt | modeM0/AS1A08_007T01_9000003362_22653cztM0_level2_quad_clean.evt |
| Size (bytes) | 549,218,880 | 85,032,000 |
| Size | 523.8 MB | 81.1 MB |
| Events in quadrant A | 3,568,606 | 548,688 |
| Events in quadrant B | 3,863,489 | 552,391 |
| Events in quadrant C | 3,540,103 | 516,089 |
| Events in quadrant D | 5,220,647 | 504,304 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14691 | 2 |
| B | 0 | 15853 | 2 |
| C | 0 | 14505 | 3 |
| D | 0 | 19981 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6499 | 99 | 1.523311% |
| B | 6500 | 117 | 1.800000% |
| C | 6499 | 148 | 2.277273% |
| D | 6499 | 241 | 3.708263% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7829 | 6500 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7830 | 6501 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7829 | 6500 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7829 | 6500 | 108 | 108 | 1.38% | 1.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11415 | 58.0 | 924 | 911 | 181.1 |
| A | 0 | 226 | 8168 | 40.07 | 924 | 911 | 181.1 |
| A | 3 | 1 | 7132 | 34.35 | 924 | 911 | 181.1 |
| B | 0 | 229 | 118728 | 706.32 | 911 | 893 | 166.8 |
| B | 0 | 228 | 73054 | 432.54 | 911 | 893 | 166.8 |
| B | 0 | 245 | 35579 | 207.91 | 911 | 893 | 166.8 |
| C | 14 | 238 | 141400 | 718.76 | 862 | 869 | 195.5 |
| C | 0 | 10 | 16237 | 78.6 | 862 | 869 | 195.5 |
| C | 0 | 239 | 9171 | 42.46 | 862 | 869 | 195.5 |
| D | 7 | 238 | 1291974 | 6151.84 | 882 | 858 | 209.9 |
| D | 1 | 52 | 184161 | 873.39 | 882 | 858 | 209.9 |
| D | 12 | 227 | 161811 | 766.9 | 882 | 858 | 209.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

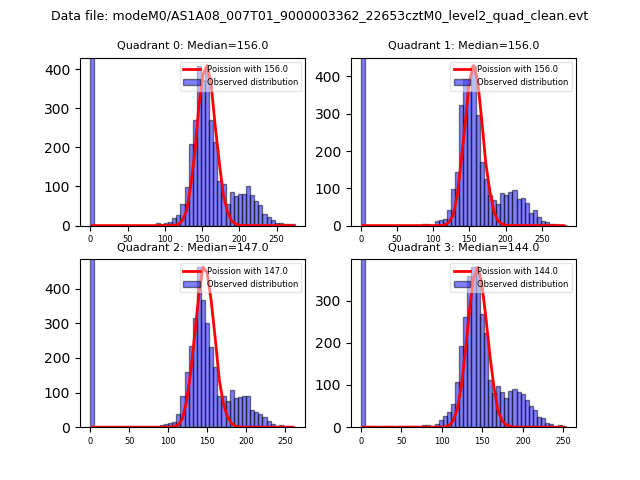

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

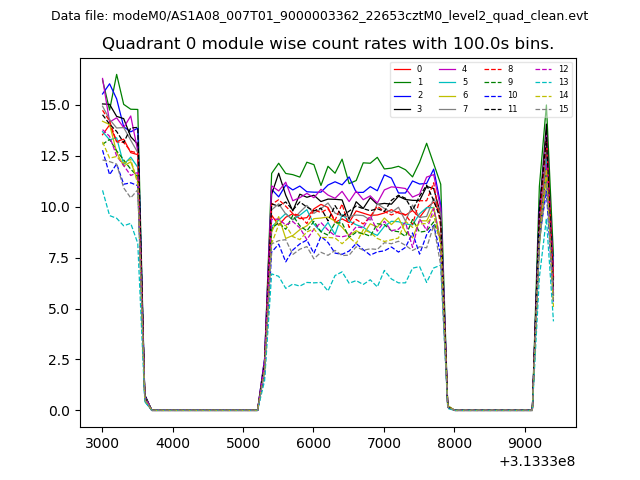

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

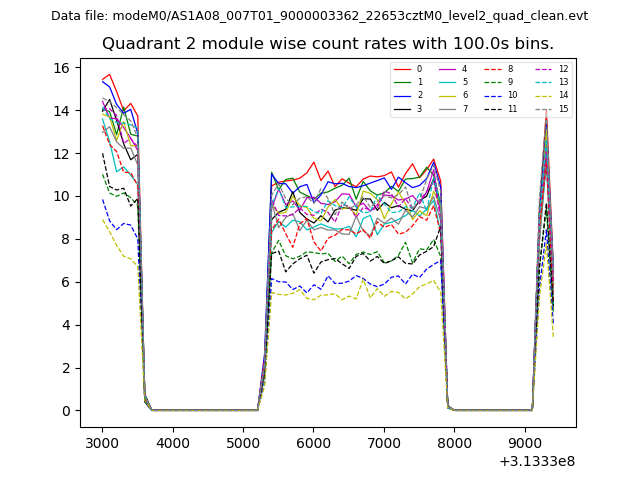

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
