| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_007T01_9000003362_22654cztM0_level2.evt | modeM0/AS1A08_007T01_9000003362_22654cztM0_level2_quad_clean.evt |
| Size (bytes) | 479,724,480 | 77,276,160 |
| Size | 457.5 MB | 73.7 MB |
| Events in quadrant A | 3,410,539 | 485,475 |
| Events in quadrant B | 3,582,337 | 489,005 |
| Events in quadrant C | 3,384,003 | 456,752 |
| Events in quadrant D | 3,712,472 | 457,750 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14076 | 1 |
| B | 0 | 14794 | 1 |
| C | 0 | 13958 | 1 |
| D | 0 | 15225 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6469 | 123 | 1.901376% |
| B | 6469 | 132 | 2.040501% |
| C | 6469 | 149 | 2.303293% |
| D | 6469 | 127 | 1.963209% |

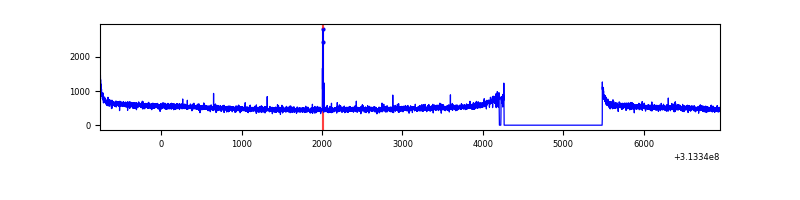

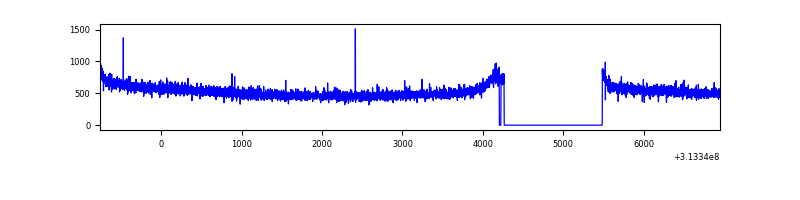

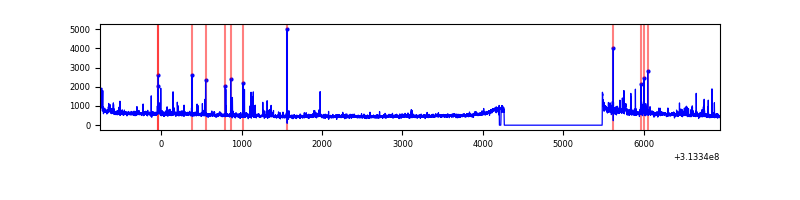

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7709 | 6471 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7709 | 6471 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7709 | 6471 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7709 | 6471 | 12 | 12 | 0.16% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11850 | 62.94 | 882 | 865 | 174.5 |
| A | 3 | 1 | 9730 | 50.79 | 882 | 865 | 174.5 |
| A | 0 | 226 | 7878 | 40.18 | 882 | 865 | 174.5 |
| B | 0 | 229 | 62264 | 378.49 | 872 | 854 | 162.2 |
| B | 0 | 190 | 41027 | 247.6 | 872 | 854 | 162.2 |
| B | 0 | 230 | 39721 | 239.55 | 872 | 854 | 162.2 |
| C | 14 | 238 | 135227 | 711.54 | 826 | 830 | 188.9 |
| C | 0 | 10 | 14607 | 72.94 | 826 | 830 | 188.9 |
| C | 10 | 22 | 12693 | 62.8 | 826 | 830 | 188.9 |
| D | 12 | 227 | 158971 | 778.75 | 848 | 824 | 203.1 |
| D | 1 | 52 | 138820 | 679.52 | 848 | 824 | 203.1 |
| D | 2 | 136 | 54513 | 264.37 | 848 | 824 | 203.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

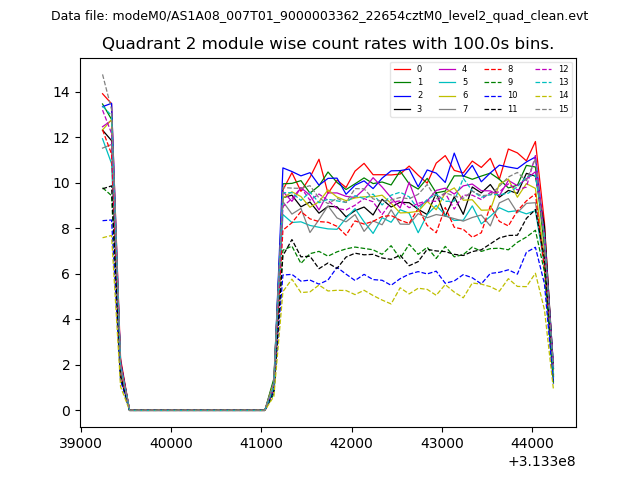

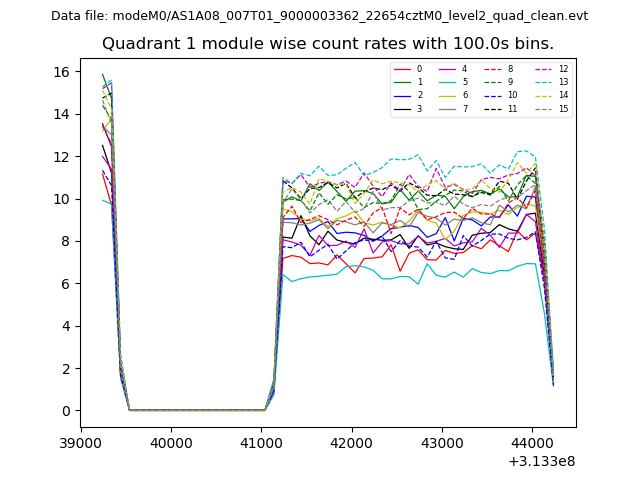

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

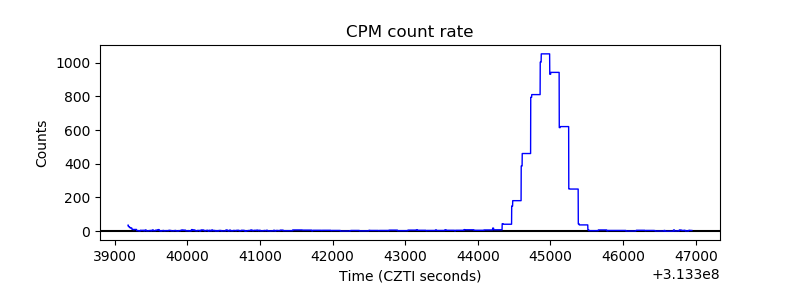

| _CPM_Rate |  |

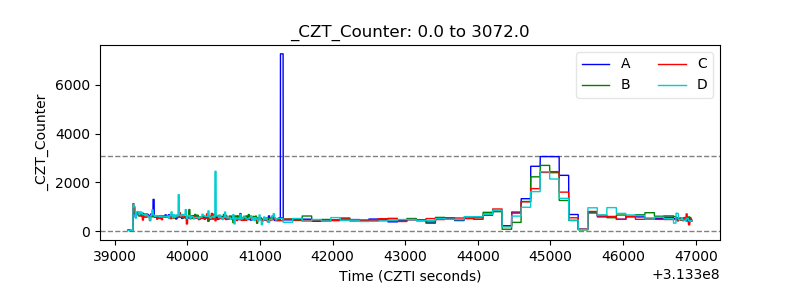

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

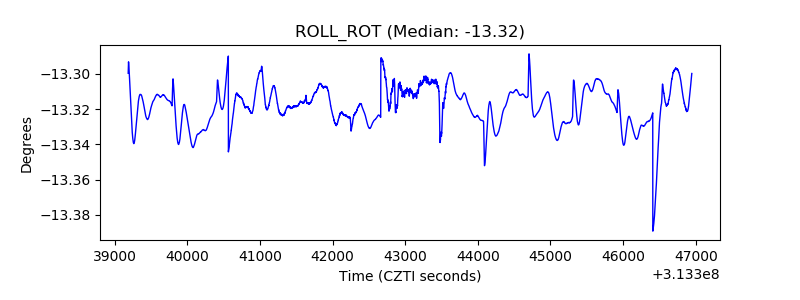

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
