| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_007T01_9000003362_22669cztM0_level2.evt | modeM0/AS1A08_007T01_9000003362_22669cztM0_level2_quad_clean.evt |
| Size (bytes) | 555,877,440 | 74,157,120 |
| Size | 530.1 MB | 70.7 MB |
| Events in quadrant A | 3,219,103 | 464,826 |
| Events in quadrant B | 3,587,339 | 466,061 |
| Events in quadrant C | 3,220,882 | 439,608 |
| Events in quadrant D | 6,377,064 | 431,560 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13332 | 1 |
| B | 0 | 14784 | 1 |
| C | 0 | 13326 | 1 |
| D | 0 | 23230 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6348 | 86 | 1.354757% |
| B | 6349 | 116 | 1.827059% |
| C | 6349 | 116 | 1.827059% |
| D | 6349 | 895 | 14.096708% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7483 | 6349 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7484 | 6350 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7484 | 6350 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7484 | 6350 | 663 | 663 | 8.86% | 10.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11989 | 67.18 | 834 | 818 | 166.3 |
| A | 0 | 226 | 7425 | 39.73 | 834 | 818 | 166.3 |
| A | 3 | 137 | 6320 | 33.09 | 834 | 818 | 166.3 |
| B | 0 | 230 | 163101 | 1072.0 | 827 | 810 | 151.4 |
| B | 0 | 219 | 61258 | 399.28 | 827 | 810 | 151.4 |
| B | 0 | 190 | 50555 | 328.59 | 827 | 810 | 151.4 |
| C | 14 | 238 | 127102 | 702.81 | 786 | 790 | 179.7 |
| C | 0 | 239 | 22644 | 121.6 | 786 | 790 | 179.7 |
| C | 13 | 61 | 5618 | 26.86 | 786 | 790 | 179.7 |
| D | 1 | 52 | 2162928 | 11670.9 | 761 | 741 | 185.3 |
| D | 12 | 227 | 702259 | 3786.6 | 761 | 741 | 185.3 |
| D | 12 | 233 | 265152 | 1427.22 | 761 | 741 | 185.3 |

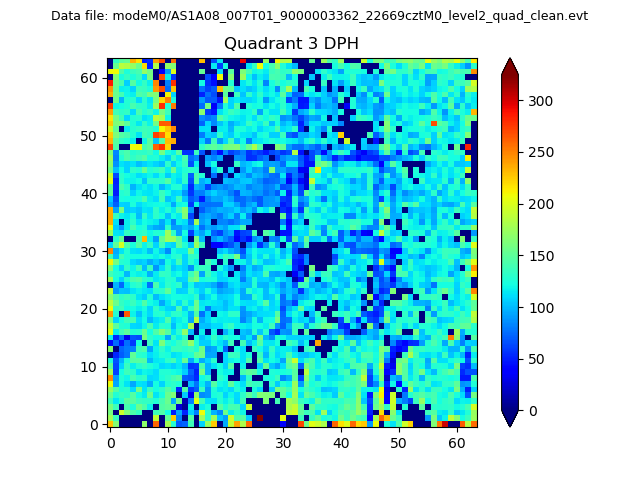

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

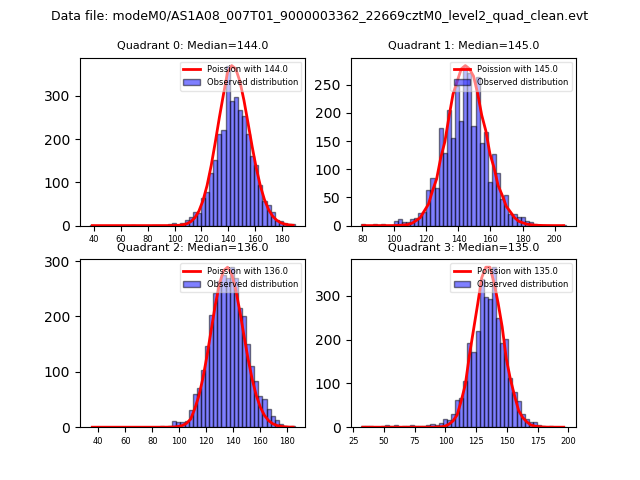

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

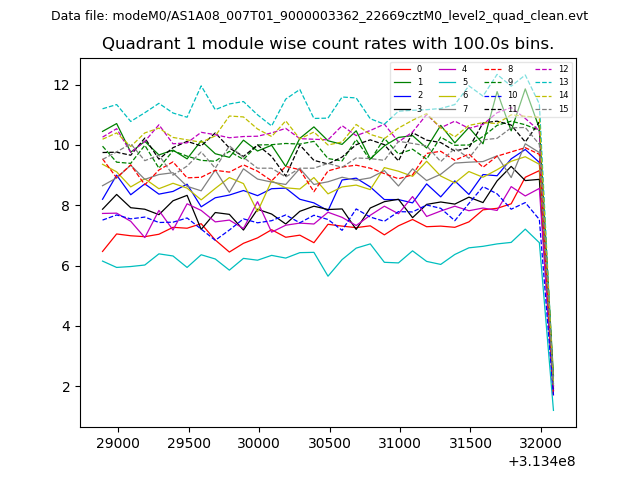

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

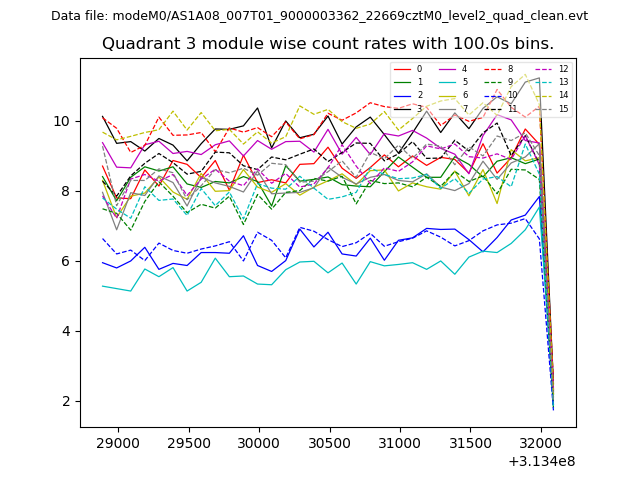

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

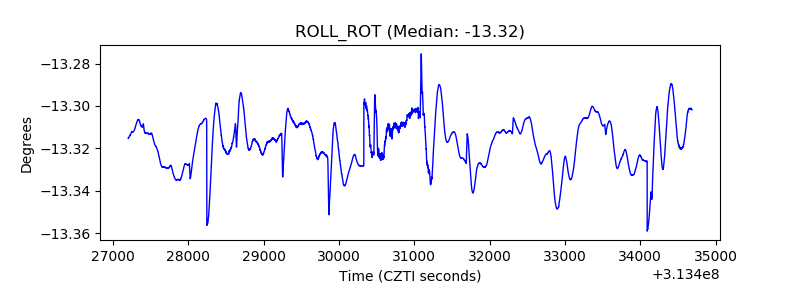

| _ROLL_ROT |  |

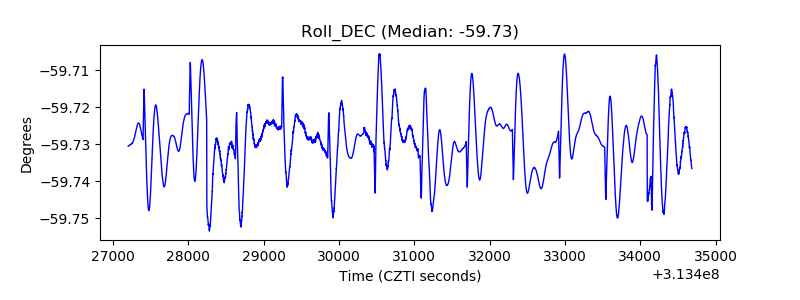

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
