| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_007T01_9000003362_22681cztM0_level2.evt | modeM0/AS1A08_007T01_9000003362_22681cztM0_level2_quad_clean.evt |
| Size (bytes) | 492,448,320 | 84,257,280 |
| Size | 469.6 MB | 80.4 MB |
| Events in quadrant A | 3,180,587 | 553,793 |
| Events in quadrant B | 3,354,461 | 557,007 |
| Events in quadrant C | 3,160,150 | 525,814 |
| Events in quadrant D | 4,821,285 | 505,258 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13014 | 1 |
| B | 0 | 13667 | 1 |
| C | 0 | 12964 | 1 |
| D | 0 | 18476 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5865 | 61 | 1.040068% |
| B | 5865 | 56 | 0.954817% |
| C | 5865 | 77 | 1.312873% |
| D | 5865 | 275 | 4.688832% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

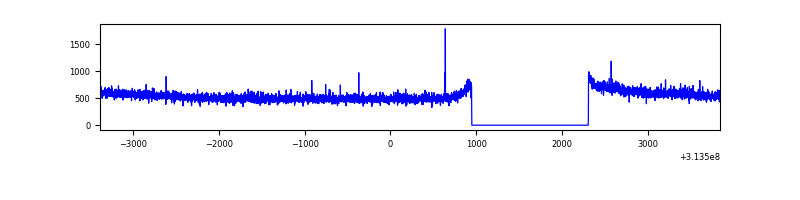

| A | 7225 | 5866 | 0 | 0 | 0.00% | 0.00% |  |

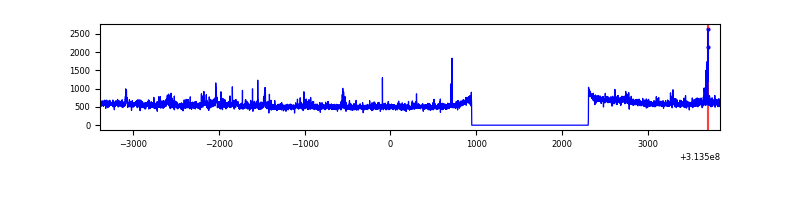

| B | 7225 | 5866 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7225 | 5866 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7225 | 5866 | 206 | 206 | 2.85% | 3.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10694 | 60.99 | 823 | 810 | 162.1 |
| A | 0 | 226 | 7434 | 40.87 | 823 | 810 | 162.1 |
| A | 12 | 194 | 6055 | 32.36 | 823 | 810 | 162.1 |
| B | 0 | 190 | 40464 | 267.13 | 808 | 795 | 148.5 |
| B | 0 | 219 | 40280 | 265.89 | 808 | 795 | 148.5 |
| B | 0 | 228 | 32970 | 216.67 | 808 | 795 | 148.5 |
| C | 14 | 238 | 124544 | 700.48 | 776 | 784 | 176.7 |
| C | 3 | 233 | 6806 | 34.08 | 776 | 784 | 176.7 |
| C | 13 | 61 | 5452 | 26.42 | 776 | 784 | 176.7 |
| D | 2 | 136 | 468479 | 2464.76 | 791 | 768 | 189.8 |
| D | 1 | 52 | 381542 | 2006.62 | 791 | 768 | 189.8 |
| D | 12 | 235 | 322089 | 1693.31 | 791 | 768 | 189.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

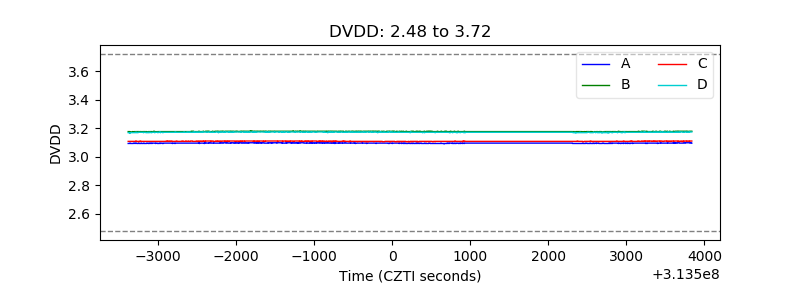

| D_VDD |  |

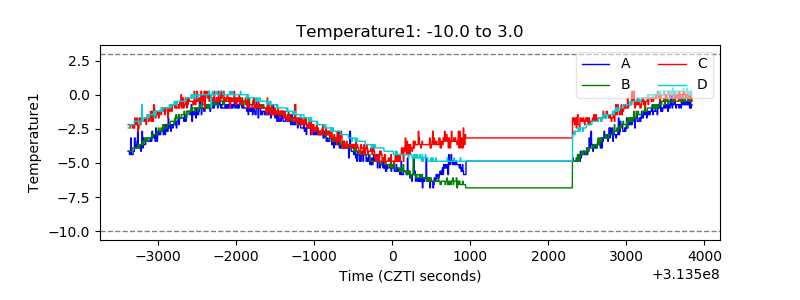

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

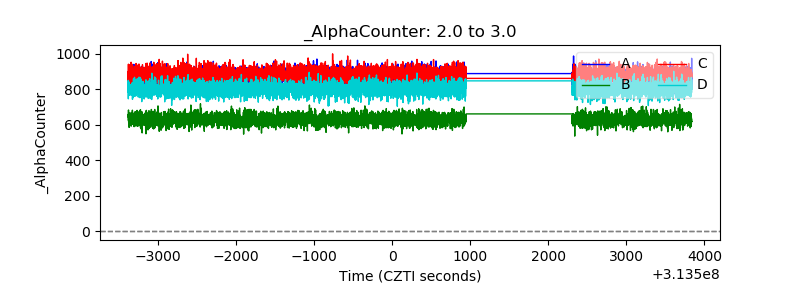

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

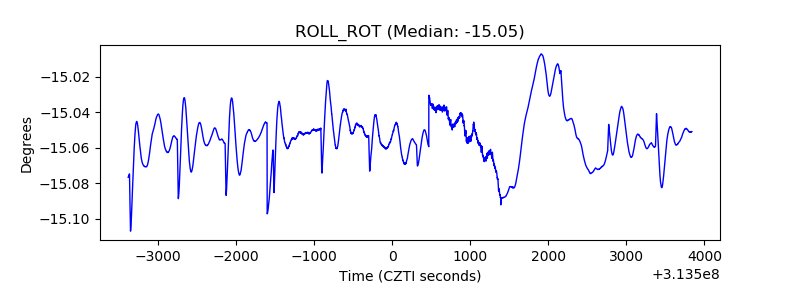

| _ROLL_ROT |  |

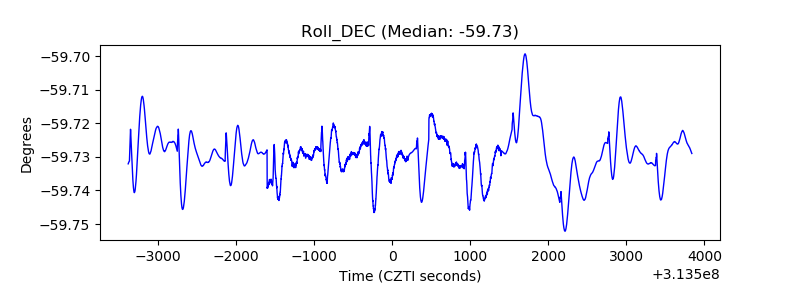

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
