| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_007T01_9000003362_22683cztM0_level2.evt | modeM0/AS1A08_007T01_9000003362_22683cztM0_level2_quad_clean.evt |
| Size (bytes) | 497,963,520 | 67,046,400 |
| Size | 474.9 MB | 63.9 MB |
| Events in quadrant A | 3,126,094 | 416,172 |
| Events in quadrant B | 3,354,095 | 414,535 |
| Events in quadrant C | 3,095,650 | 391,897 |
| Events in quadrant D | 5,096,469 | 386,701 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12817 | 1 |
| B | 0 | 13650 | 1 |
| C | 0 | 12716 | 1 |
| D | 0 | 19378 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6019 | 115 | 1.910616% |
| B | 6019 | 132 | 2.193055% |
| C | 6019 | 130 | 2.159827% |
| D | 6018 | 271 | 4.503157% |

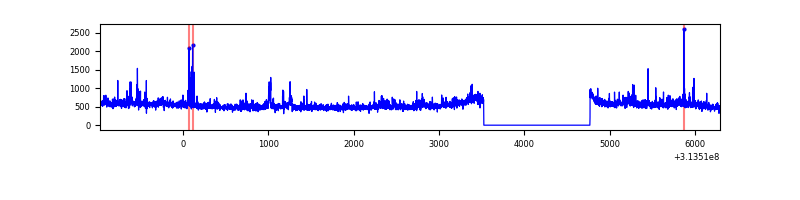

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7264 | 6020 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7264 | 6020 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7264 | 6020 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7263 | 6019 | 137 | 137 | 1.89% | 2.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11418 | 66.45 | 808 | 794 | 159.9 |
| A | 0 | 226 | 7339 | 40.93 | 808 | 794 | 159.9 |
| A | 12 | 194 | 5931 | 32.13 | 808 | 794 | 159.9 |
| B | 0 | 219 | 47419 | 317.25 | 798 | 783 | 147.0 |
| B | 0 | 190 | 47261 | 316.17 | 798 | 783 | 147.0 |
| B | 15 | 33 | 45539 | 304.46 | 798 | 783 | 147.0 |
| C | 14 | 238 | 121581 | 694.39 | 758 | 766 | 174.0 |
| C | 10 | 22 | 10792 | 57.62 | 758 | 766 | 174.0 |
| C | 0 | 239 | 6610 | 33.59 | 758 | 766 | 174.0 |
| D | 12 | 235 | 849716 | 4590.5 | 769 | 747 | 184.9 |
| D | 9 | 1 | 362200 | 1954.43 | 769 | 747 | 184.9 |
| D | 7 | 238 | 293325 | 1582.01 | 769 | 747 | 184.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

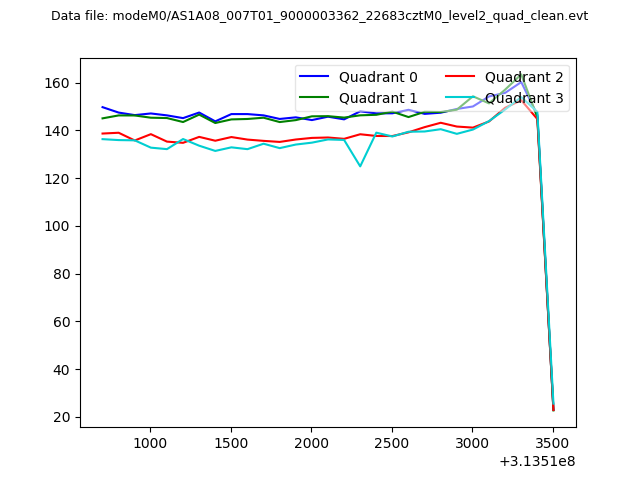

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

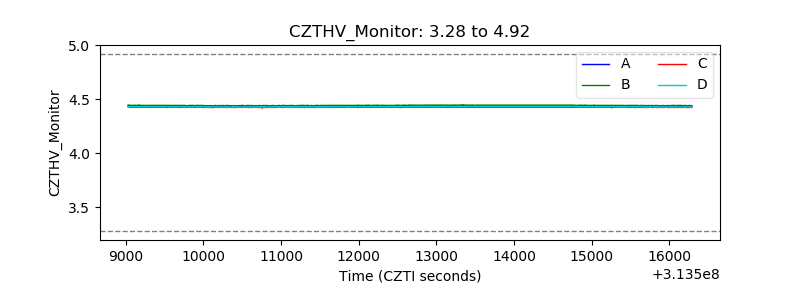

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

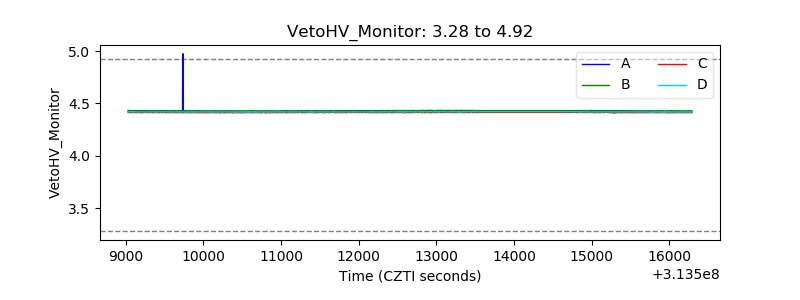

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

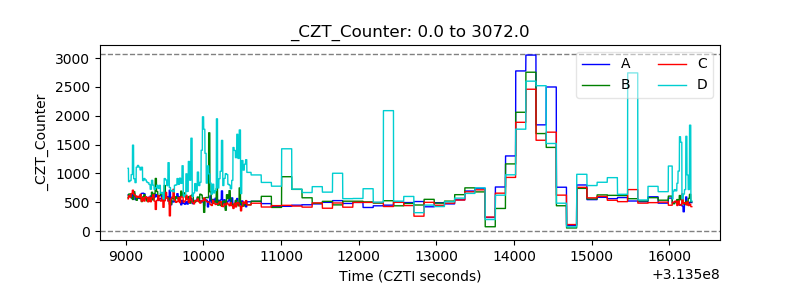

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

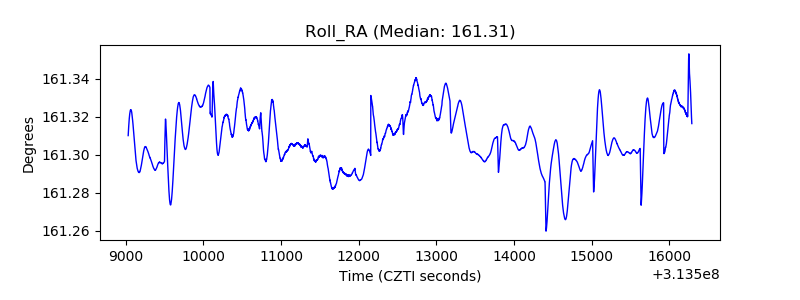

| _Roll_RA |  |
| Veto Counter |  |
