| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_007T01_9000003362_22686cztM0_level2.evt | modeM0/AS1A08_007T01_9000003362_22686cztM0_level2_quad_clean.evt |
| Size (bytes) | 548,395,200 | 98,389,440 |
| Size | 523.0 MB | 93.8 MB |
| Events in quadrant A | 3,488,636 | 633,919 |
| Events in quadrant B | 3,729,717 | 635,369 |
| Events in quadrant C | 3,506,534 | 607,359 |
| Events in quadrant D | 5,381,159 | 587,915 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15235 | 1 |
| B | 0 | 15768 | 1 |
| C | 0 | 15259 | 1 |
| D | 0 | 20907 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7406 | 79 | 1.066703% |
| B | 7406 | 108 | 1.458277% |
| C | 7406 | 98 | 1.323251% |
| D | 7406 | 427 | 5.765595% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7586 | 7407 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7586 | 7407 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7586 | 7407 | 3 | 3 | 0.04% | 0.04% |  |
| D | 7586 | 7407 | 285 | 285 | 3.76% | 3.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 13695 | 70.45 | 901 | 879 | 181.9 |
| A | 0 | 226 | 8073 | 39.54 | 901 | 879 | 181.9 |
| A | 3 | 137 | 7188 | 34.68 | 901 | 879 | 181.9 |
| B | 0 | 190 | 52462 | 303.88 | 897 | 874 | 169.8 |
| B | 3 | 64 | 52228 | 302.5 | 897 | 874 | 169.8 |
| B | 0 | 219 | 50709 | 293.55 | 897 | 874 | 169.8 |
| C | 14 | 238 | 135053 | 674.85 | 855 | 862 | 198.8 |
| C | 9 | 54 | 23344 | 113.06 | 855 | 862 | 198.8 |
| C | 10 | 91 | 7189 | 31.82 | 855 | 862 | 198.8 |
| D | 2 | 136 | 658009 | 3170.85 | 855 | 830 | 207.3 |
| D | 1 | 52 | 399207 | 1922.15 | 855 | 830 | 207.3 |
| D | 9 | 1 | 388529 | 1870.63 | 855 | 830 | 207.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

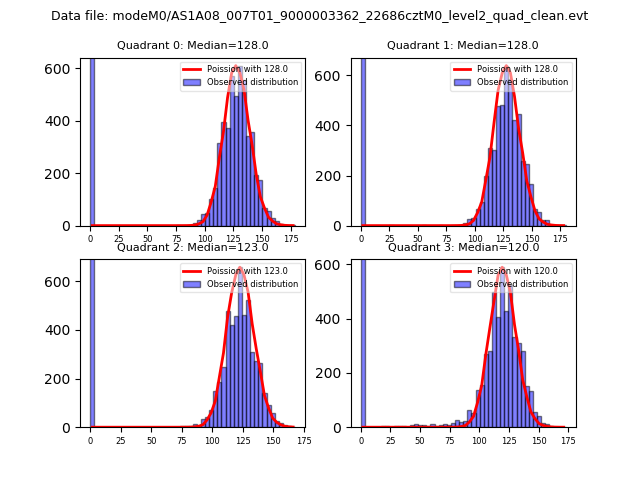

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

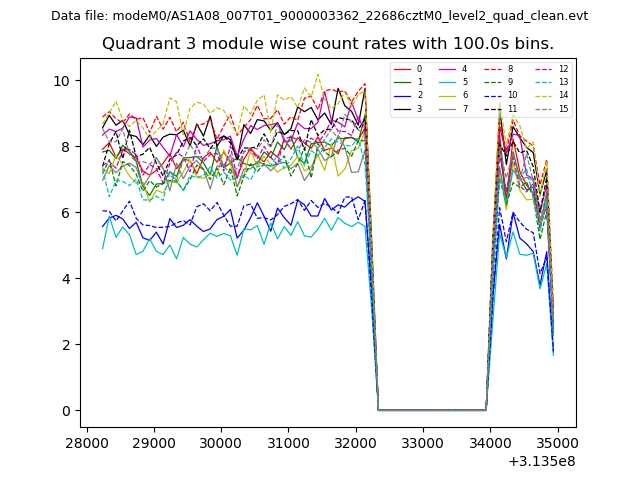

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

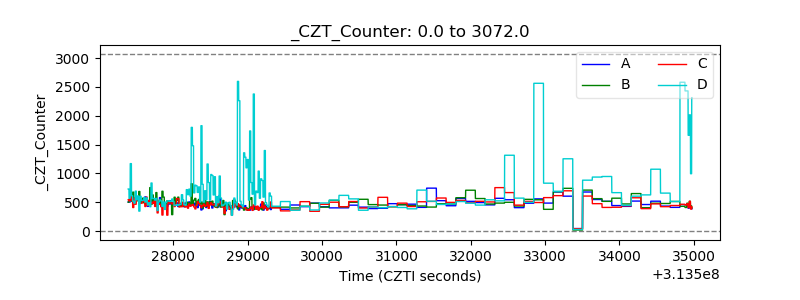

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

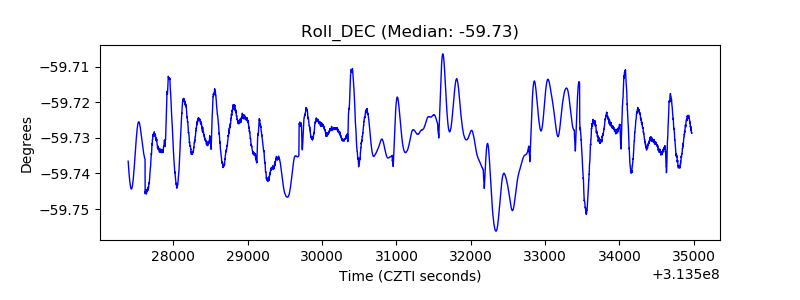

| _Roll_DEC |  |

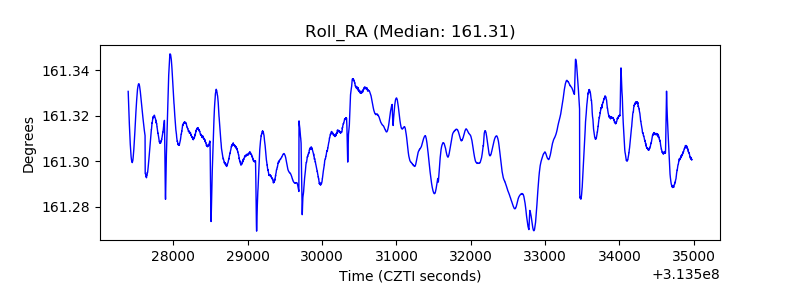

| _Roll_RA |  |
| Veto Counter |  |
