| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_007T01_9000003362_22698cztM0_level2.evt | modeM0/AS1A08_007T01_9000003362_22698cztM0_level2_quad_clean.evt |
| Size (bytes) | 506,347,200 | 71,818,560 |
| Size | 482.9 MB | 68.5 MB |
| Events in quadrant A | 3,293,481 | 444,562 |
| Events in quadrant B | 3,483,893 | 444,543 |
| Events in quadrant C | 3,255,620 | 421,065 |
| Events in quadrant D | 4,863,607 | 413,997 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13569 | 1 |
| B | 0 | 14177 | 1 |
| C | 0 | 13564 | 1 |
| D | 0 | 18760 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6454 | 109 | 1.688875% |
| B | 6455 | 117 | 1.812548% |
| C | 6454 | 118 | 1.828324% |
| D | 6454 | 365 | 5.655407% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

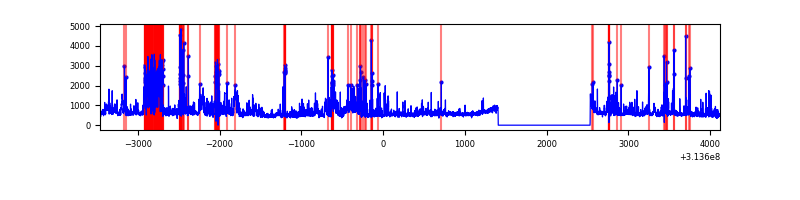

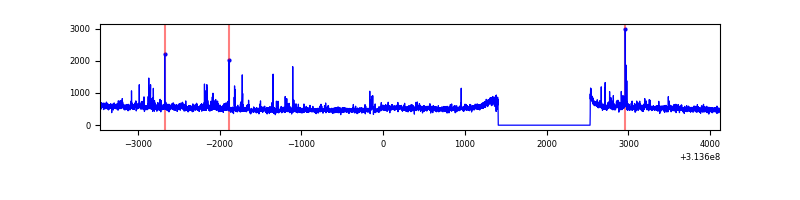

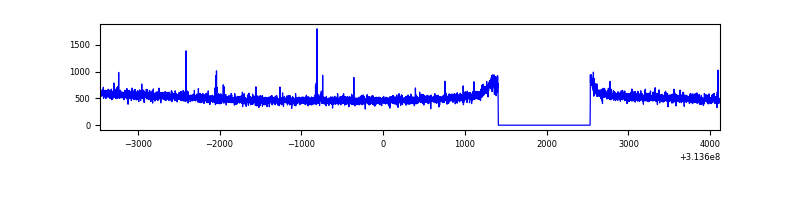

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7579 | 6455 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7580 | 6456 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7579 | 6455 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7579 | 6454 | 198 | 198 | 2.61% | 3.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11952 | 66.16 | 850 | 834 | 168.1 |
| A | 4 | 2 | 8261 | 44.19 | 850 | 834 | 168.1 |
| A | 0 | 226 | 7463 | 39.44 | 850 | 834 | 168.1 |
| B | 0 | 228 | 47907 | 300.63 | 840 | 822 | 156.6 |
| B | 0 | 190 | 45832 | 287.38 | 840 | 822 | 156.6 |
| B | 0 | 245 | 36103 | 225.26 | 840 | 822 | 156.6 |
| C | 14 | 238 | 128682 | 699.4 | 799 | 804 | 182.8 |
| C | 10 | 22 | 11310 | 57.46 | 799 | 804 | 182.8 |
| C | 13 | 61 | 5791 | 27.27 | 799 | 804 | 182.8 |
| D | 1 | 52 | 1039503 | 5352.36 | 803 | 781 | 194.1 |
| D | 12 | 227 | 148980 | 763.64 | 803 | 781 | 194.1 |
| D | 12 | 233 | 132054 | 676.43 | 803 | 781 | 194.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

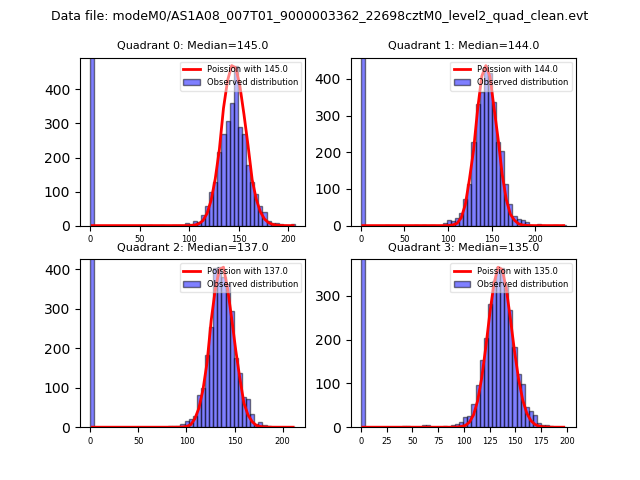

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

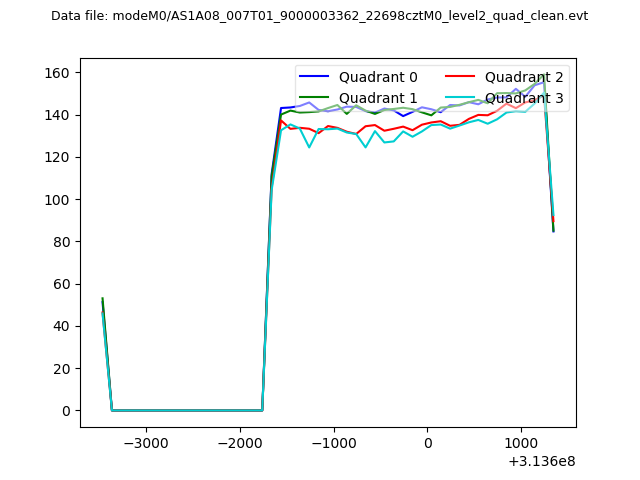

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

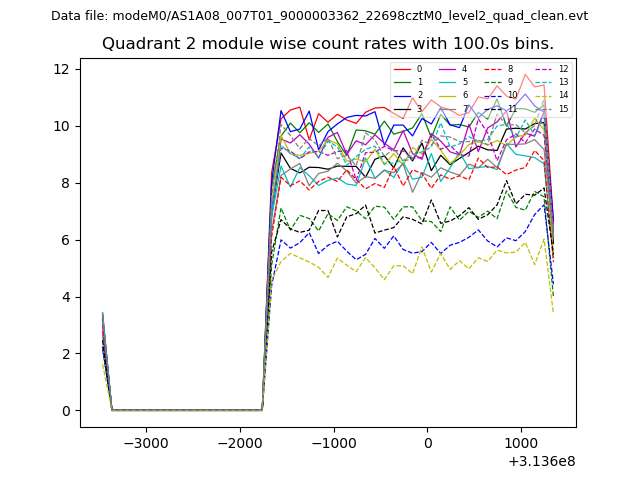

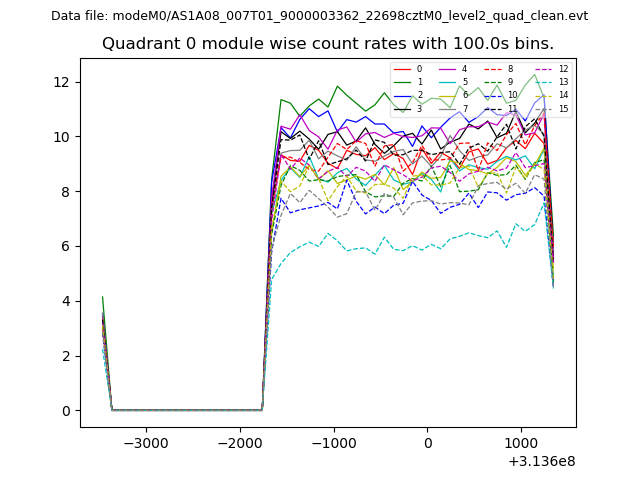

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

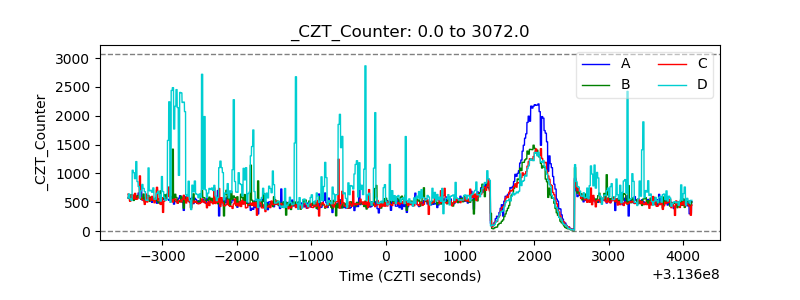

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
