| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_007T01_9000003362_22702cztM0_level2.evt | modeM0/AS1A08_007T01_9000003362_22702cztM0_level2_quad_clean.evt |
| Size (bytes) | 545,886,720 | 108,803,520 |
| Size | 520.6 MB | 103.8 MB |
| Events in quadrant A | 3,467,178 | 710,560 |
| Events in quadrant B | 3,620,316 | 714,782 |
| Events in quadrant C | 3,568,606 | 682,447 |
| Events in quadrant D | 5,366,485 | 664,773 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15324 | 2 |
| B | 0 | 15647 | 1 |
| C | 0 | 15484 | 1 |
| D | 0 | 20909 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7512 | 30 | 0.399361% |
| B | 7513 | 60 | 0.798616% |
| C | 7513 | 90 | 1.197924% |
| D | 7513 | 323 | 4.299215% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7877 | 7513 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7878 | 7514 | 4 | 4 | 0.05% | 0.05% |  |
| C | 7878 | 7514 | 9 | 9 | 0.11% | 0.12% |  |
| D | 7878 | 7514 | 213 | 213 | 2.70% | 2.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 13574 | 69.5 | 895 | 877 | 182.7 |
| A | 0 | 226 | 8014 | 39.07 | 895 | 877 | 182.7 |
| A | 3 | 1 | 7997 | 38.97 | 895 | 877 | 182.7 |
| B | 0 | 245 | 27149 | 154.28 | 895 | 873 | 170.3 |
| B | 0 | 230 | 21430 | 120.7 | 895 | 873 | 170.3 |
| B | 0 | 190 | 21032 | 118.36 | 895 | 873 | 170.3 |
| C | 14 | 238 | 134973 | 669.25 | 853 | 857 | 200.4 |
| C | 10 | 22 | 62899 | 309.6 | 853 | 857 | 200.4 |
| C | 10 | 23 | 28421 | 137.55 | 853 | 857 | 200.4 |
| D | 1 | 52 | 1094761 | 5242.0 | 855 | 831 | 208.7 |
| D | 12 | 227 | 398295 | 1904.61 | 855 | 831 | 208.7 |
| D | 12 | 233 | 385577 | 1843.66 | 855 | 831 | 208.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

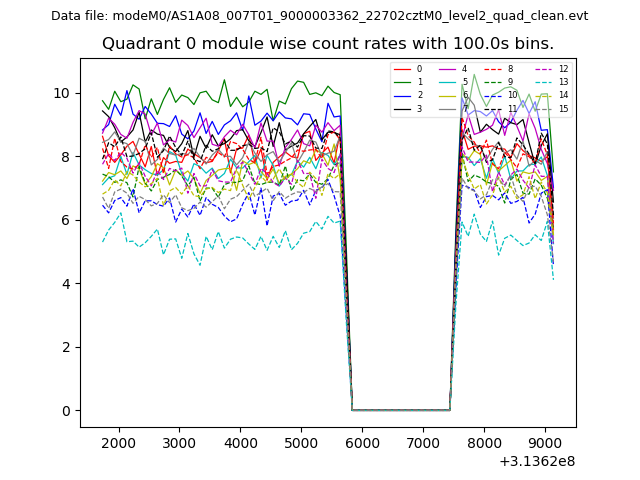

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

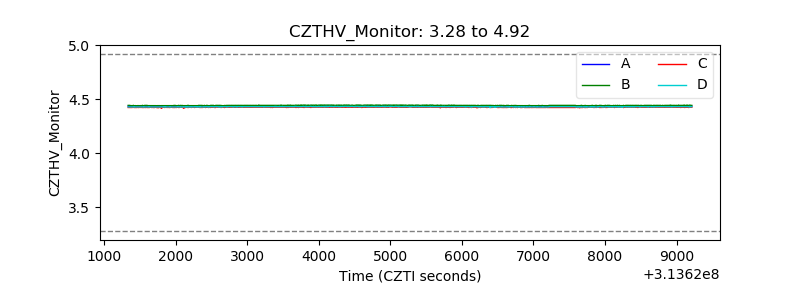

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

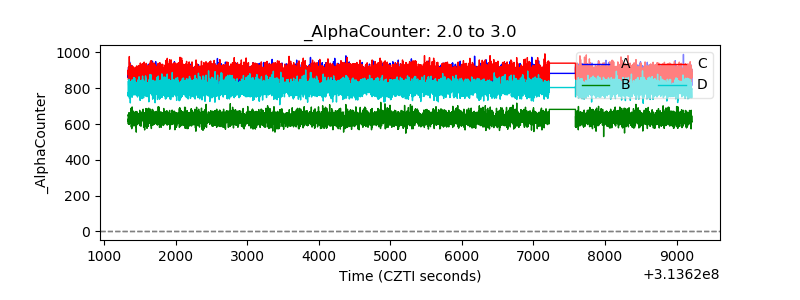

| Alpha Counter |  |

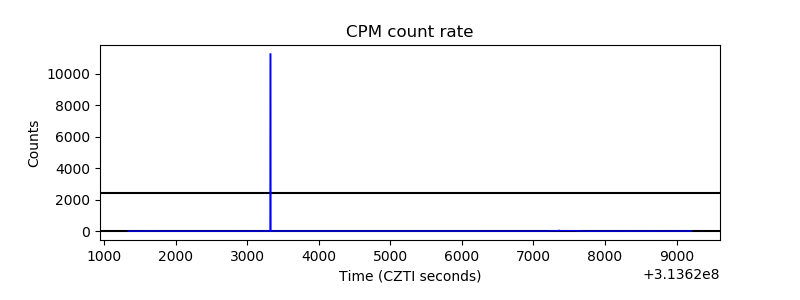

| _CPM_Rate |  |

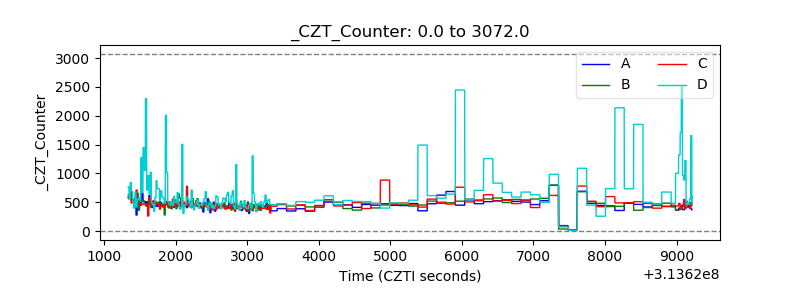

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

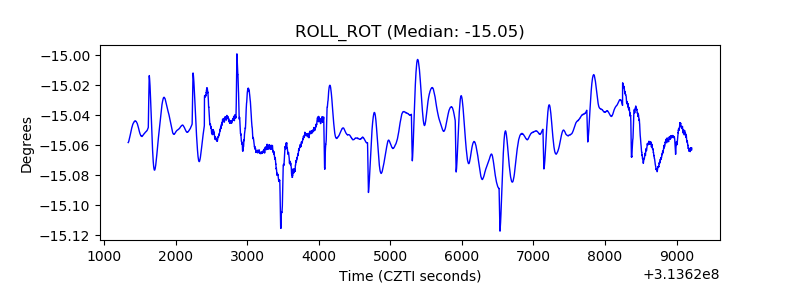

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
