| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_007T01_9000003362_22727cztM0_level2.evt | modeM0/AS1A08_007T01_9000003362_22727cztM0_level2_quad_clean.evt |
| Size (bytes) | 496,200,960 | 79,410,240 |
| Size | 473.2 MB | 75.7 MB |
| Events in quadrant A | 3,427,615 | 497,699 |
| Events in quadrant B | 3,560,959 | 500,753 |
| Events in quadrant C | 3,452,799 | 473,681 |
| Events in quadrant D | 4,133,989 | 468,290 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14249 | 82 |
| B | 0 | 14606 | 75 |
| C | 0 | 14378 | 76 |
| D | 0 | 16674 | 84 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6654 | 126 | 1.893598% |
| B | 6657 | 141 | 2.118071% |
| C | 6657 | 182 | 2.733964% |
| D | 6653 | 154 | 2.314745% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7818 | 6661 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7818 | 6665 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7818 | 6663 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7818 | 6659 | 64 | 64 | 0.82% | 0.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11783 | 62.57 | 886 | 870 | 174.4 |
| A | 10 | 17 | 10808 | 56.98 | 886 | 870 | 174.4 |
| A | 0 | 226 | 7859 | 40.07 | 886 | 870 | 174.4 |
| B | 0 | 197 | 46692 | 281.75 | 874 | 854 | 162.7 |
| B | 0 | 228 | 34479 | 206.68 | 874 | 854 | 162.7 |
| B | 0 | 190 | 28562 | 170.31 | 874 | 854 | 162.7 |
| C | 14 | 238 | 135449 | 699.98 | 837 | 844 | 192.3 |
| C | 10 | 23 | 43715 | 222.94 | 837 | 844 | 192.3 |
| C | 10 | 22 | 7286 | 33.5 | 837 | 844 | 192.3 |
| D | 1 | 52 | 554457 | 2697.37 | 857 | 834 | 205.2 |
| D | 12 | 233 | 197734 | 959.34 | 857 | 834 | 205.2 |
| D | 2 | 153 | 43352 | 207.16 | 857 | 834 | 205.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

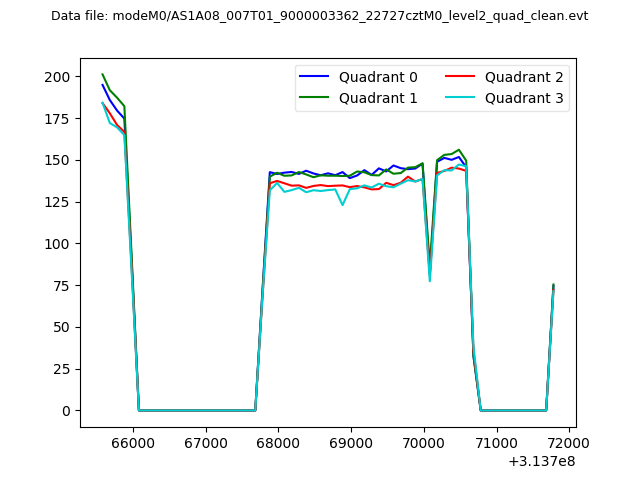

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

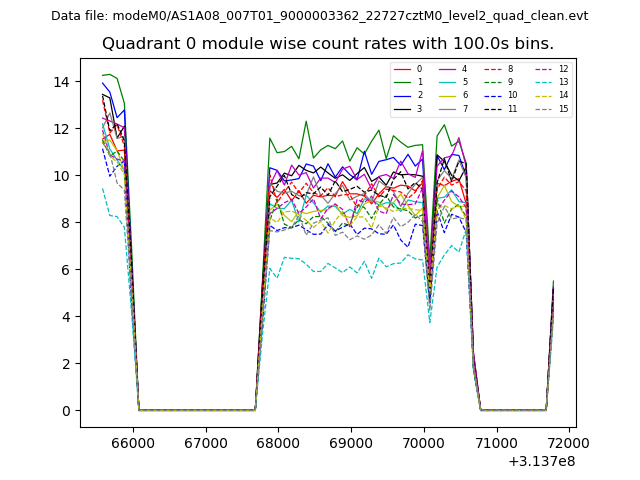

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

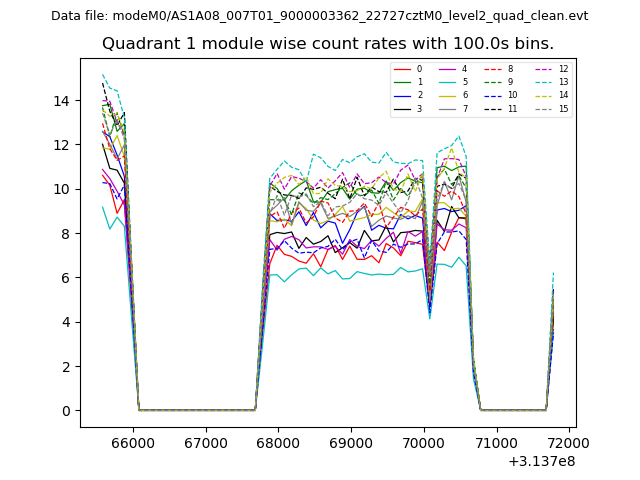

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
