| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_007T01_9000003362_22738cztM0_level2.evt | modeM0/AS1A08_007T01_9000003362_22738cztM0_level2_quad_clean.evt |
| Size (bytes) | 466,539,840 | 96,304,320 |
| Size | 444.9 MB | 91.8 MB |
| Events in quadrant A | 2,982,222 | 639,728 |
| Events in quadrant B | 3,061,002 | 647,556 |
| Events in quadrant C | 3,071,794 | 622,593 |
| Events in quadrant D | 4,622,970 | 603,925 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12324 | 1 |
| B | 0 | 12529 | 1 |
| C | 0 | 12622 | 1 |
| D | 0 | 17406 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5760 | 38 | 0.659722% |
| B | 5761 | 38 | 0.659608% |
| C | 5761 | 81 | 1.406006% |
| D | 5761 | 417 | 7.238327% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

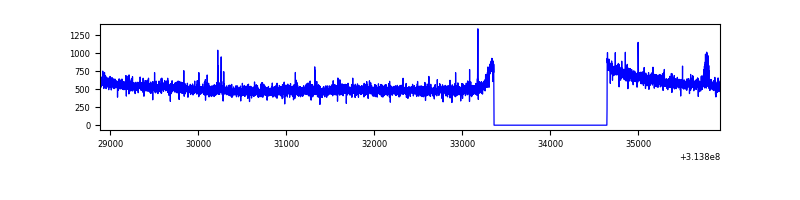

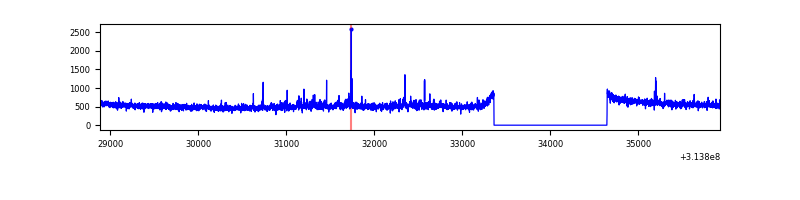

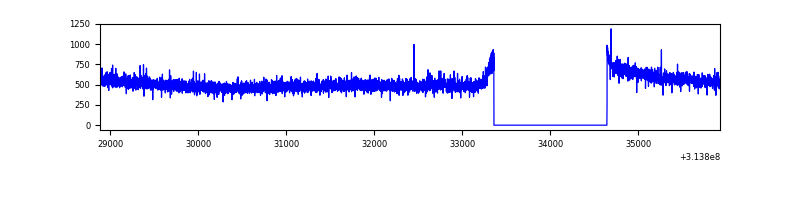

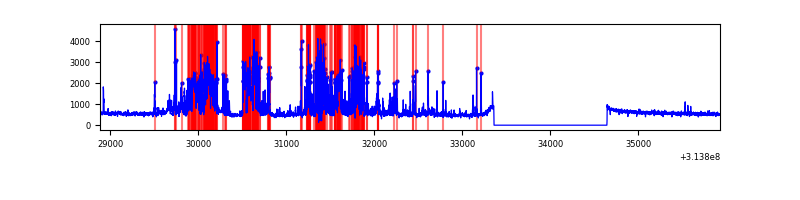

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7045 | 5761 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7046 | 5762 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7045 | 5761 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7045 | 5761 | 372 | 372 | 5.28% | 6.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9526 | 57.4 | 772 | 757 | 152.8 |
| A | 0 | 226 | 7006 | 40.9 | 772 | 757 | 152.8 |
| A | 3 | 137 | 5775 | 32.85 | 772 | 757 | 152.8 |
| B | 0 | 197 | 41958 | 291.17 | 762 | 744 | 141.5 |
| B | 0 | 245 | 19947 | 135.66 | 762 | 744 | 141.5 |
| B | 0 | 228 | 16508 | 111.37 | 762 | 744 | 141.5 |
| C | 14 | 238 | 118673 | 690.37 | 748 | 756 | 170.8 |
| C | 10 | 22 | 22794 | 129.03 | 748 | 756 | 170.8 |
| C | 0 | 207 | 10961 | 59.75 | 748 | 756 | 170.8 |
| D | 1 | 52 | 1172807 | 6536.18 | 747 | 726 | 179.3 |
| D | 12 | 233 | 484471 | 2697.63 | 747 | 726 | 179.3 |
| D | 7 | 238 | 33374 | 182.06 | 747 | 726 | 179.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

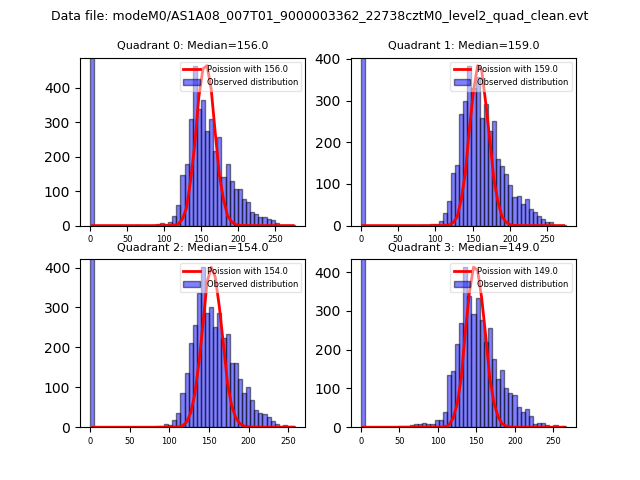

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

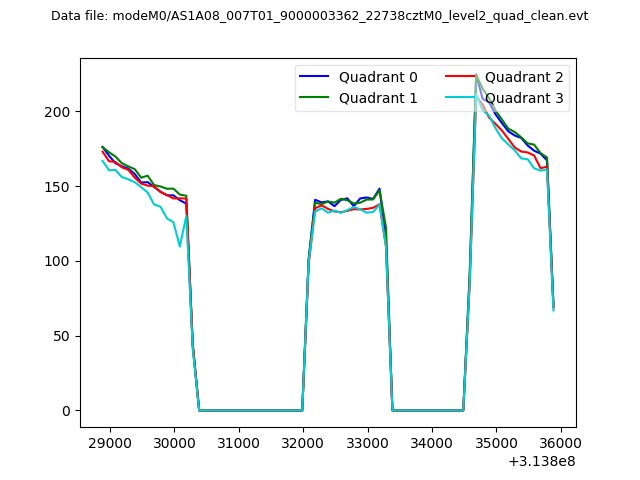

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

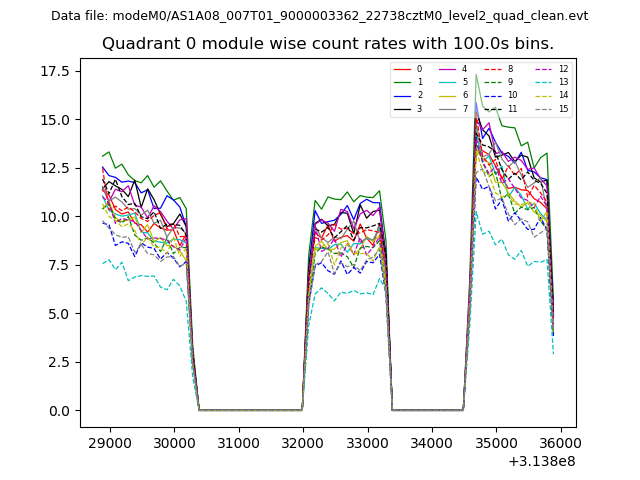

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

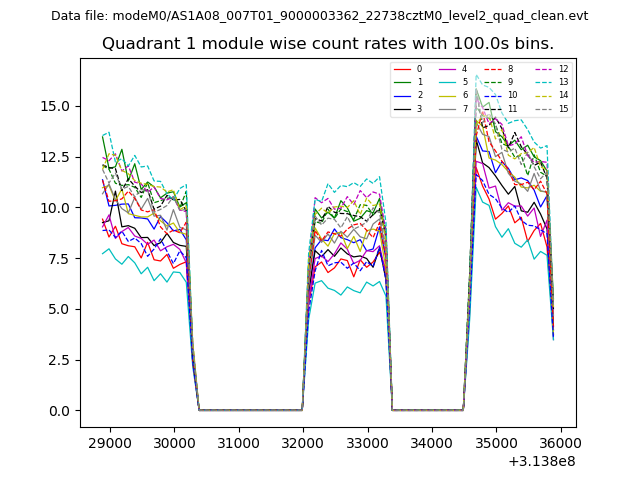

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

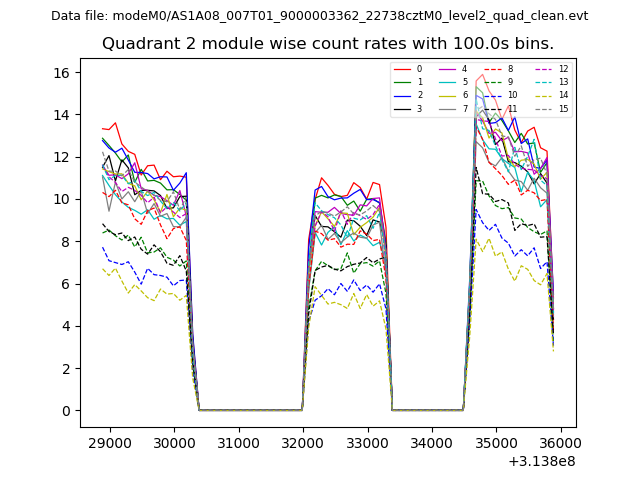

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

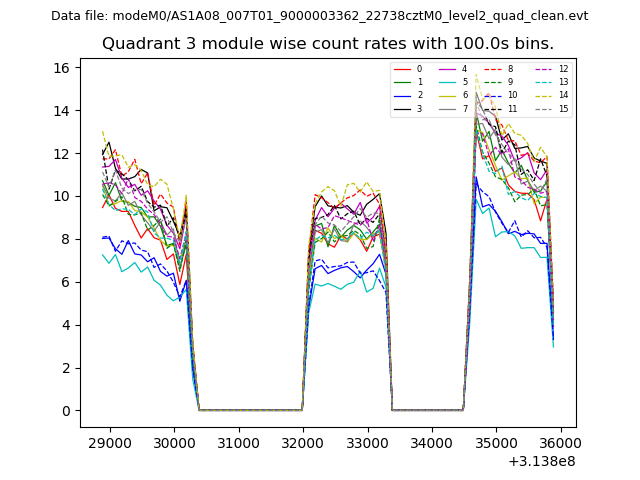

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

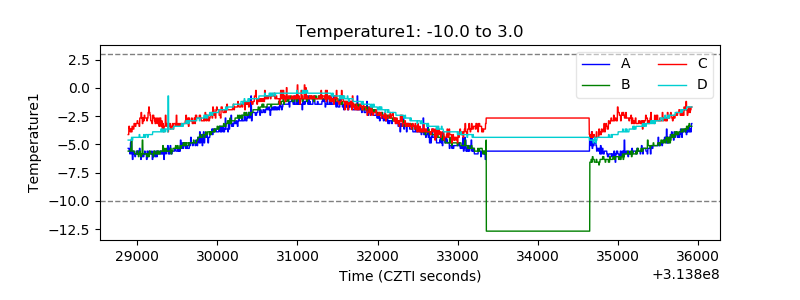

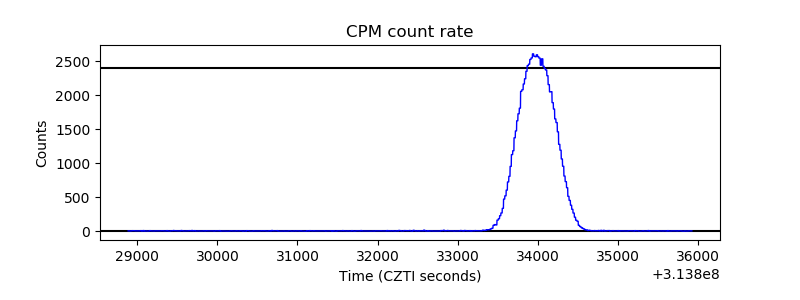

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

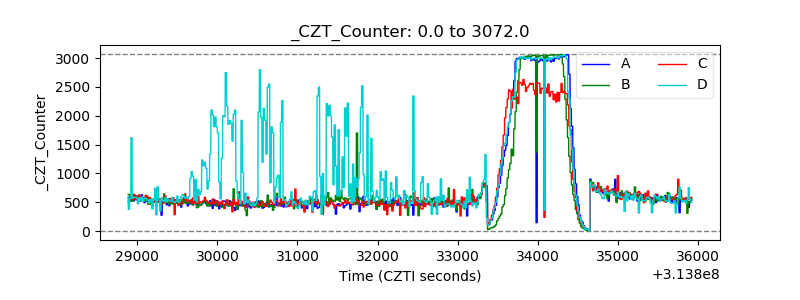

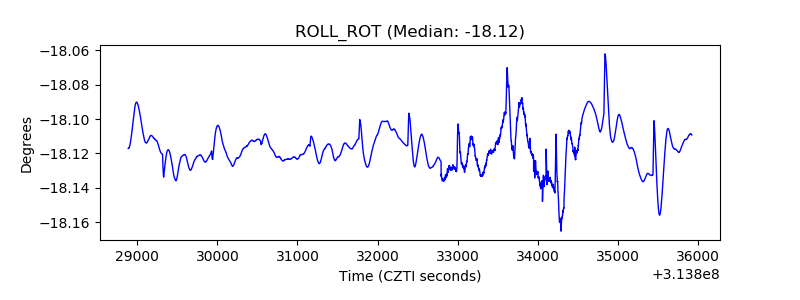

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

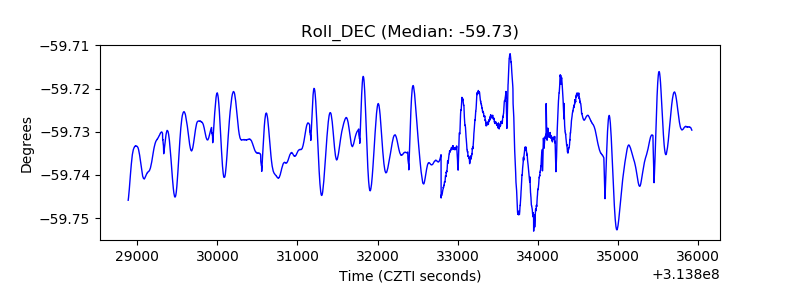

| _Roll_DEC |  |
| _Roll_RA |  |

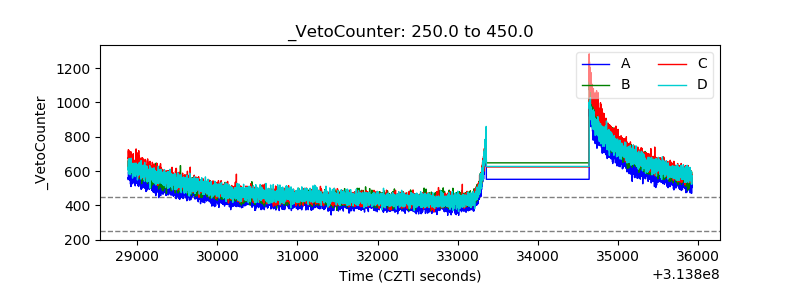

| Veto Counter |  |
