| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_007T01_9000003362_22744cztM0_level2.evt | modeM0/AS1A08_007T01_9000003362_22744cztM0_level2_quad_clean.evt |
| Size (bytes) | 534,021,120 | 93,012,480 |
| Size | 509.3 MB | 88.7 MB |
| Events in quadrant A | 3,511,986 | 587,069 |
| Events in quadrant B | 3,730,455 | 590,643 |
| Events in quadrant C | 3,519,063 | 566,378 |
| Events in quadrant D | 4,907,667 | 556,152 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 2 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15364 | 68 |
| B | 0 | 15821 | 74 |
| C | 0 | 15340 | 70 |
| D | 0 | 19551 | 67 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7420 | 68 | 0.916442% |
| B | 7418 | 106 | 1.428957% |
| C | 7420 | 96 | 1.293801% |
| D | 7422 | 203 | 2.735112% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7695 | 7430 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7695 | 7425 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7696 | 7430 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7696 | 7427 | 100 | 100 | 1.30% | 1.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 13453 | 68.58 | 909 | 891 | 183.2 |
| A | 0 | 226 | 7964 | 38.61 | 909 | 891 | 183.2 |
| A | 3 | 137 | 7543 | 36.32 | 909 | 891 | 183.2 |
| B | 0 | 197 | 57968 | 333.95 | 902 | 880 | 170.9 |
| B | 0 | 228 | 52482 | 301.85 | 902 | 880 | 170.9 |
| B | 0 | 190 | 29050 | 164.79 | 902 | 880 | 170.9 |
| C | 14 | 238 | 136299 | 672.88 | 865 | 872 | 201.3 |
| C | 13 | 61 | 6118 | 26.07 | 865 | 872 | 201.3 |
| C | 10 | 22 | 5967 | 25.31 | 865 | 872 | 201.3 |
| D | 12 | 227 | 653589 | 3068.01 | 878 | 853 | 212.8 |
| D | 1 | 52 | 341486 | 1601.06 | 878 | 853 | 212.8 |
| D | 12 | 233 | 261636 | 1225.74 | 878 | 853 | 212.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

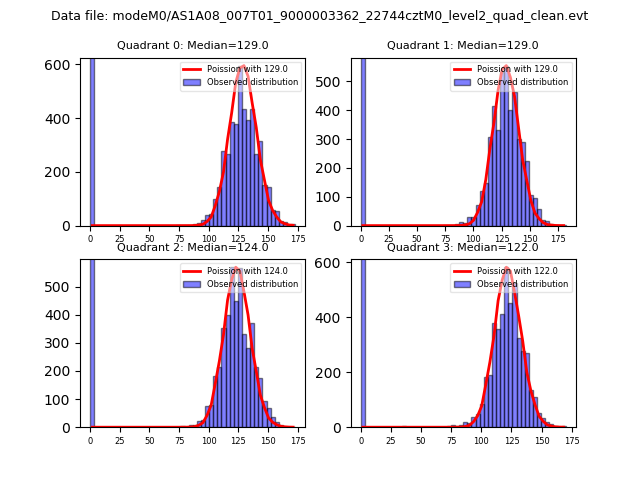

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

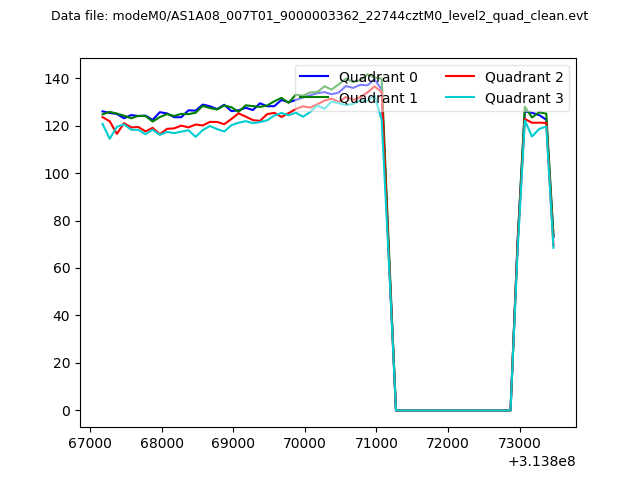

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

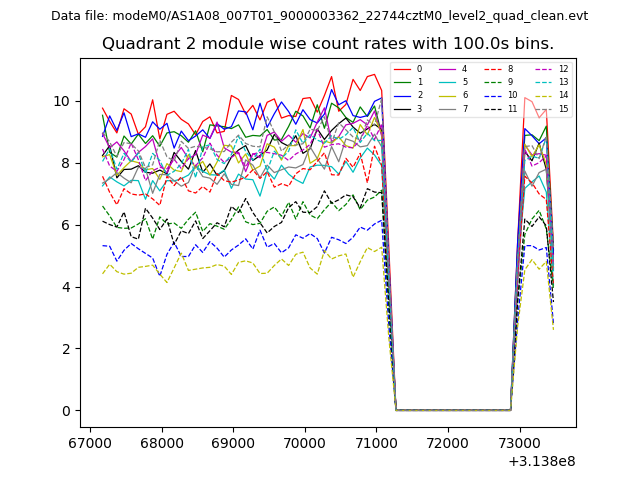

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

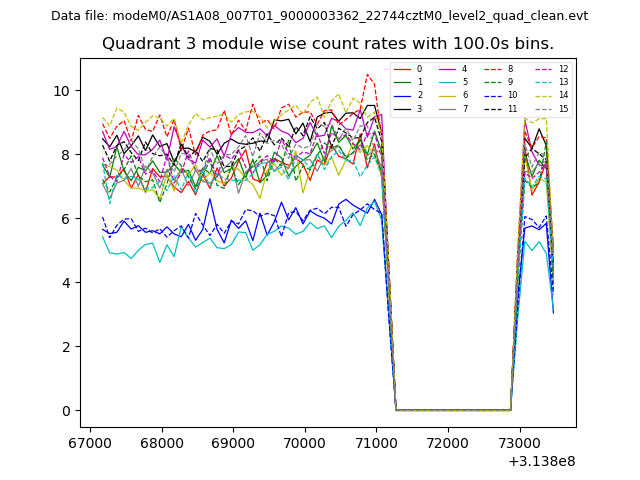

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
