| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_001T01_9000003366_22763cztM0_level2.evt | modeM0/AS1C05_001T01_9000003366_22763cztM0_level2_quad_clean.evt |
| Size (bytes) | 452,232,000 | 131,526,720 |
| Size | 431.3 MB | 125.4 MB |
| Events in quadrant A | 3,167,344 | 895,973 |
| Events in quadrant B | 3,286,032 | 903,617 |
| Events in quadrant C | 3,270,026 | 860,384 |
| Events in quadrant D | 3,506,065 | 845,884 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13895 | 2 |
| B | 0 | 14067 | 2 |
| C | 0 | 14062 | 2 |
| D | 0 | 15094 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6858 | 44 | 0.641586% |
| B | 6858 | 51 | 0.743657% |
| C | 6858 | 82 | 1.195684% |
| D | 6858 | 86 | 1.254010% |

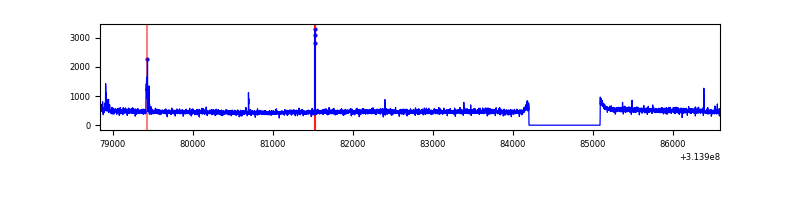

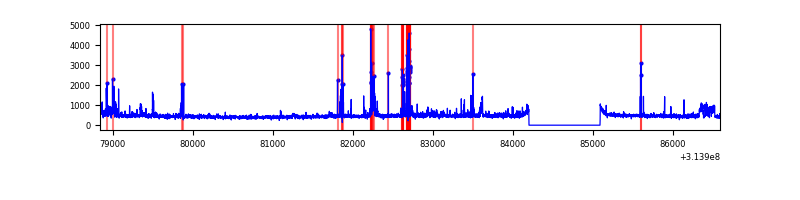

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7748 | 6859 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7748 | 6859 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7748 | 6859 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7748 | 6859 | 45 | 45 | 0.58% | 0.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12209 | 69.54 | 819 | 802 | 164.0 |
| A | 0 | 226 | 7181 | 38.89 | 819 | 802 | 164.0 |
| A | 3 | 137 | 6930 | 37.36 | 819 | 802 | 164.0 |
| B | 0 | 230 | 32661 | 205.69 | 821 | 801 | 154.9 |
| B | 12 | 111 | 18288 | 112.9 | 821 | 801 | 154.9 |
| B | 11 | 111 | 15988 | 98.05 | 821 | 801 | 154.9 |
| C | 14 | 238 | 127276 | 683.01 | 792 | 796 | 185.2 |
| C | 10 | 22 | 54215 | 288.47 | 792 | 796 | 185.2 |
| C | 13 | 61 | 5507 | 25.44 | 792 | 796 | 185.2 |
| D | 1 | 52 | 178069 | 914.16 | 797 | 773 | 193.9 |
| D | 12 | 233 | 104146 | 533.01 | 797 | 773 | 193.9 |
| D | 7 | 238 | 79318 | 404.99 | 797 | 773 | 193.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

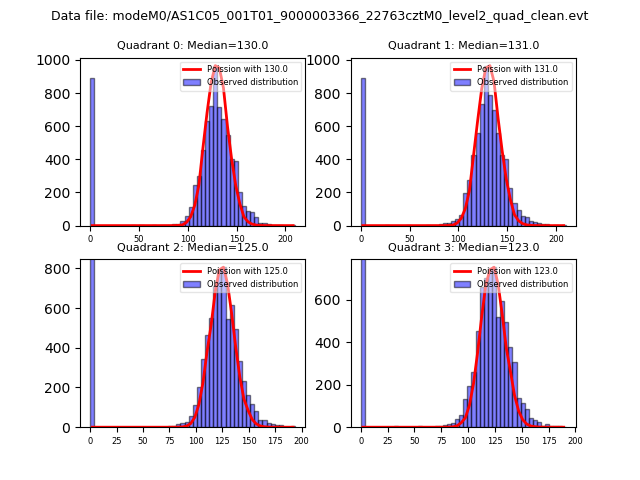

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

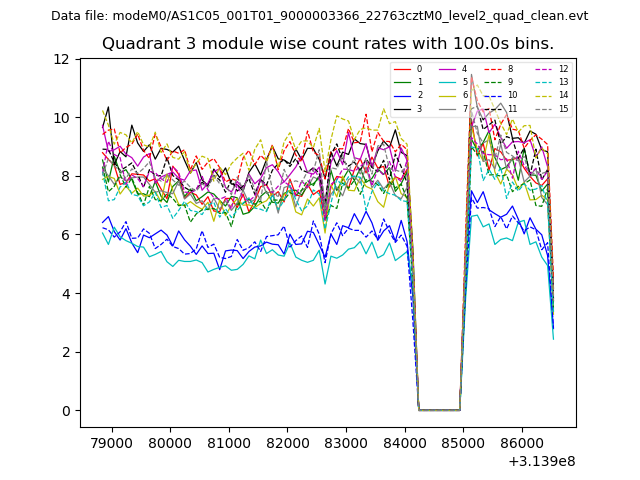

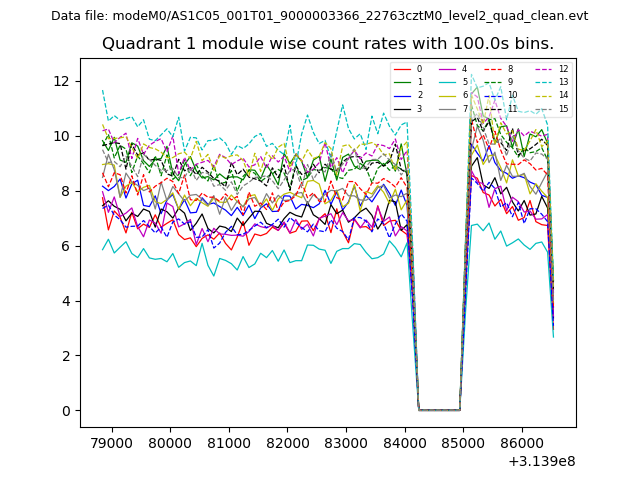

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

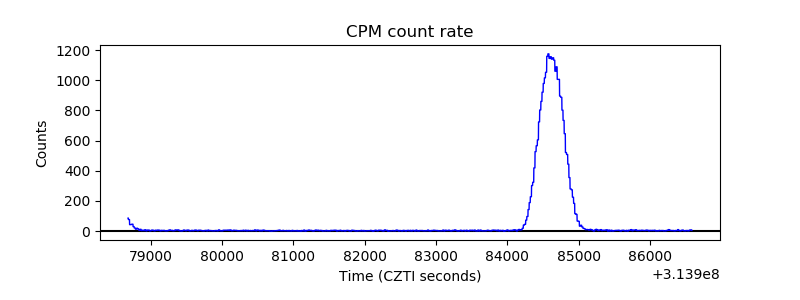

| _CPM_Rate |  |

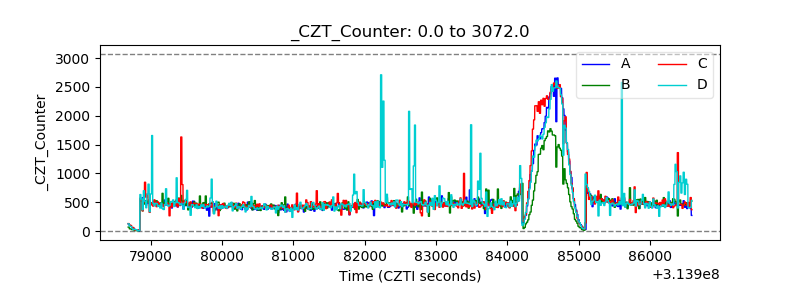

| CZT Counter |  |

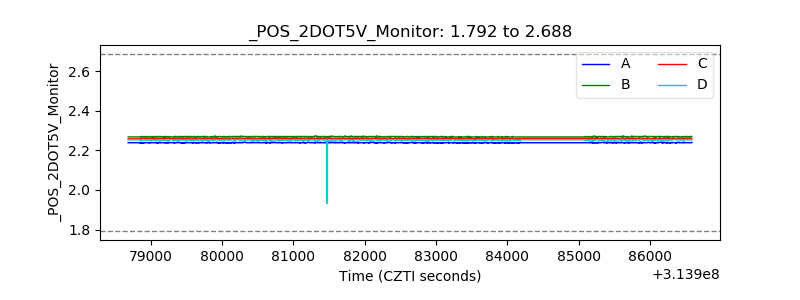

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
