| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_001T01_9000003366_22766cztM0_level2.evt | modeM0/AS1C05_001T01_9000003366_22766cztM0_level2_quad_clean.evt |
| Size (bytes) | 455,901,120 | 130,731,840 |
| Size | 434.8 MB | 124.7 MB |
| Events in quadrant A | 3,043,870 | 902,429 |
| Events in quadrant B | 3,161,880 | 914,320 |
| Events in quadrant C | 3,116,947 | 875,009 |
| Events in quadrant D | 4,070,921 | 842,881 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12918 | 1 |
| B | 0 | 13212 | 1 |
| C | 0 | 13177 | 1 |
| D | 0 | 16017 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6093 | 58 | 0.951912% |
| B | 6093 | 72 | 1.181684% |
| C | 6093 | 96 | 1.575579% |
| D | 6092 | 277 | 4.546947% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7278 | 6094 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7278 | 6094 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7278 | 6094 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7277 | 6093 | 200 | 200 | 2.75% | 3.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10936 | 64.93 | 788 | 773 | 156.5 |
| A | 0 | 226 | 6734 | 38.08 | 788 | 773 | 156.5 |
| A | 3 | 137 | 6134 | 34.25 | 788 | 773 | 156.5 |
| B | 0 | 228 | 22721 | 152.75 | 784 | 765 | 143.7 |
| B | 0 | 230 | 19055 | 127.24 | 784 | 765 | 143.7 |
| B | 0 | 190 | 18139 | 120.87 | 784 | 765 | 143.7 |
| C | 14 | 238 | 124760 | 712.36 | 762 | 768 | 174.1 |
| C | 10 | 22 | 16141 | 88.32 | 762 | 768 | 174.1 |
| C | 13 | 61 | 5368 | 26.43 | 762 | 768 | 174.1 |
| D | 12 | 233 | 824319 | 4483.54 | 764 | 742 | 183.7 |
| D | 1 | 52 | 208521 | 1131.15 | 764 | 742 | 183.7 |
| D | 7 | 238 | 42690 | 228.36 | 764 | 742 | 183.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

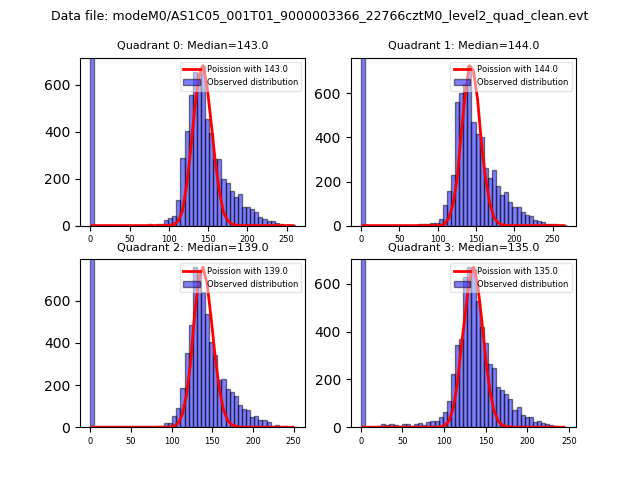

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

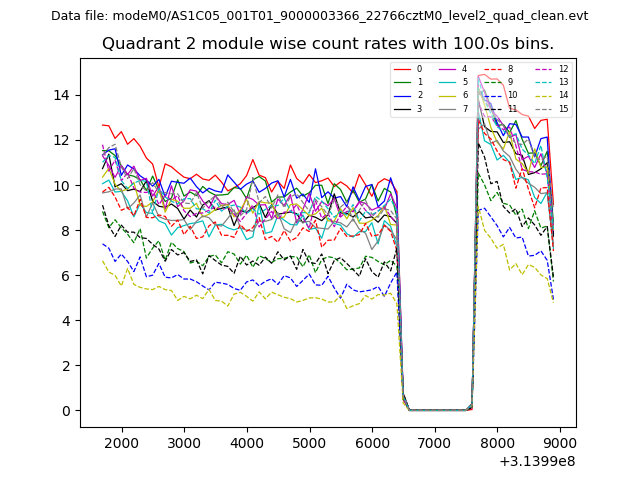

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

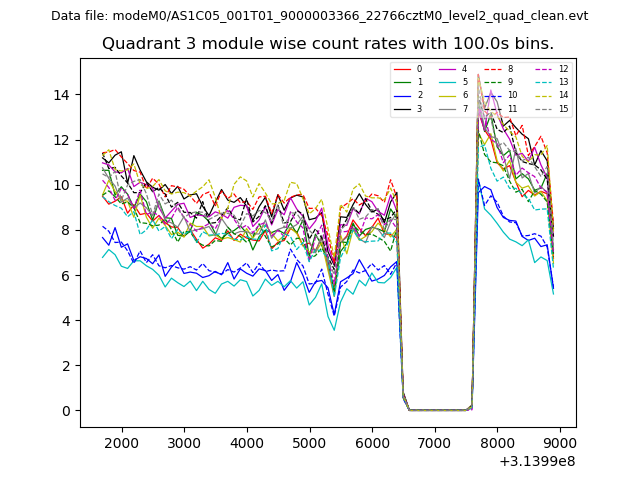

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

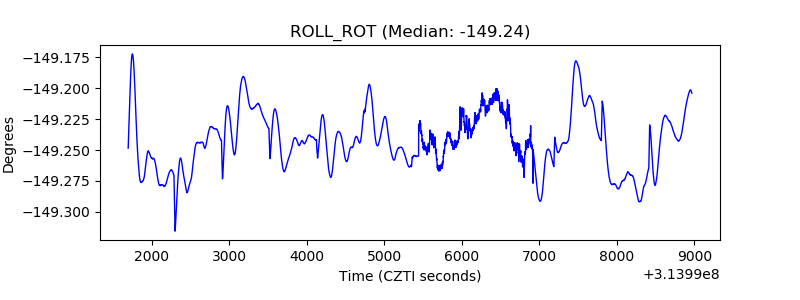

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

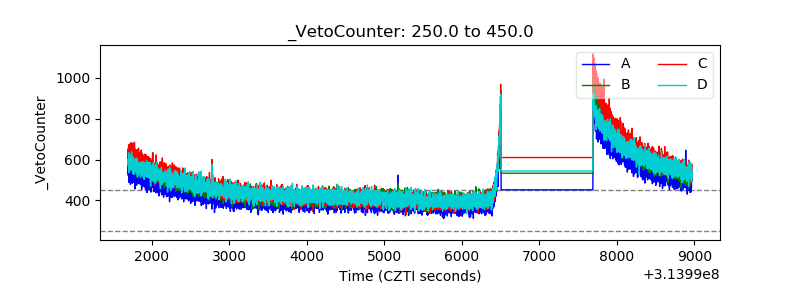

| Veto Counter |  |
