| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_001T01_9000003366_22768cztM0_level2.evt | modeM0/AS1C05_001T01_9000003366_22768cztM0_level2_quad_clean.evt |
| Size (bytes) | 525,948,480 | 151,519,680 |
| Size | 501.6 MB | 144.5 MB |
| Events in quadrant A | 3,477,506 | 1,065,749 |
| Events in quadrant B | 3,520,258 | 1,077,815 |
| Events in quadrant C | 3,511,567 | 1,022,392 |
| Events in quadrant D | 4,993,495 | 985,517 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14422 | 2 |
| B | 0 | 14522 | 2 |
| C | 0 | 14698 | 2 |
| D | 0 | 19334 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6274 | 103 | 1.641696% |
| B | 6274 | 143 | 2.279248% |
| C | 6274 | 209 | 3.331208% |
| D | 6273 | 315 | 5.021521% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7579 | 6275 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7579 | 6275 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7579 | 6275 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7578 | 6274 | 173 | 173 | 2.28% | 2.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10974 | 57.72 | 901 | 886 | 174.8 |
| A | 0 | 226 | 7808 | 39.61 | 901 | 886 | 174.8 |
| A | 10 | 17 | 6718 | 33.37 | 901 | 886 | 174.8 |
| B | 12 | 111 | 17451 | 103.28 | 887 | 870 | 160.5 |
| B | 0 | 190 | 15798 | 92.98 | 887 | 870 | 160.5 |
| B | 11 | 111 | 15148 | 88.94 | 887 | 870 | 160.5 |
| C | 14 | 238 | 142156 | 733.16 | 855 | 863 | 192.7 |
| C | 10 | 22 | 30048 | 151.44 | 855 | 863 | 192.7 |
| C | 13 | 61 | 5935 | 26.32 | 855 | 863 | 192.7 |
| D | 1 | 52 | 1454189 | 7071.05 | 865 | 842 | 205.5 |
| D | 12 | 233 | 129649 | 626.69 | 865 | 842 | 205.5 |
| D | 12 | 33 | 52940 | 253.48 | 865 | 842 | 205.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

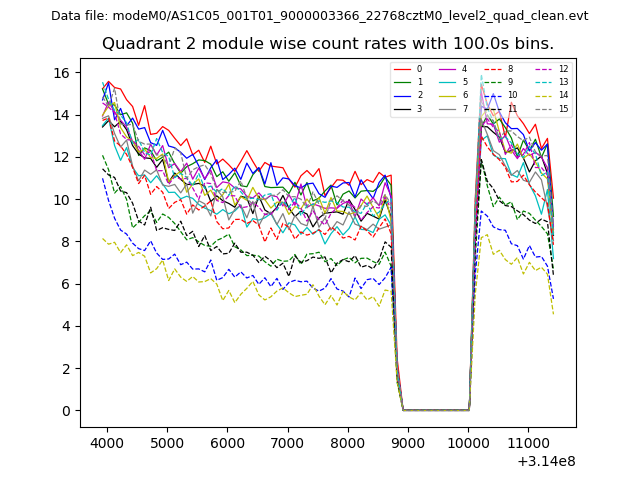

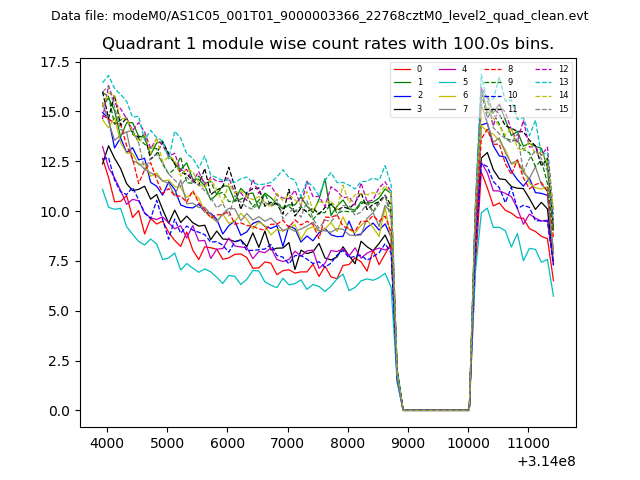

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

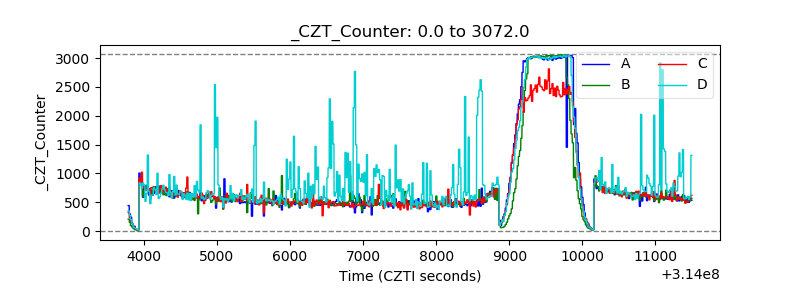

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

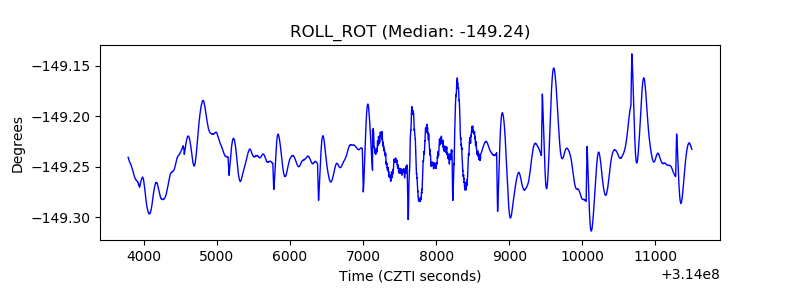

| _ROLL_ROT |  |

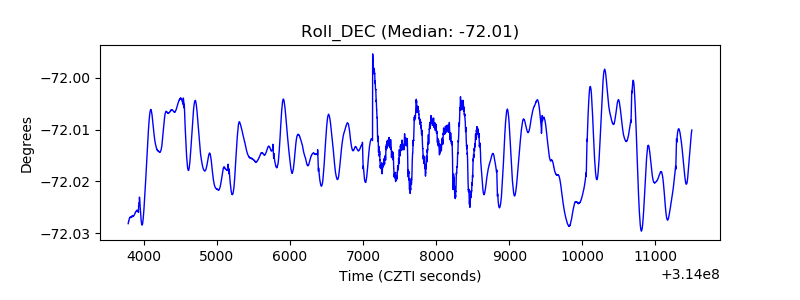

| _Roll_DEC |  |
| _Roll_RA |  |

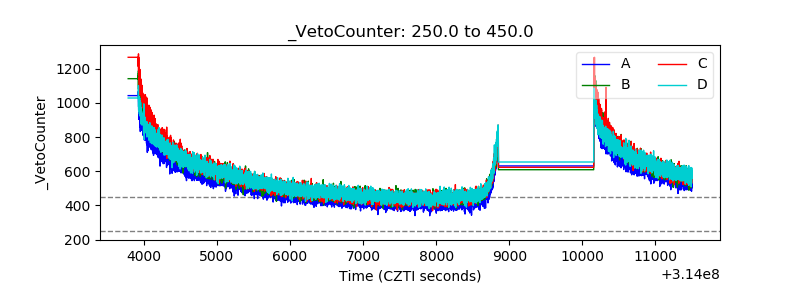

| Veto Counter |  |
