| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_168T01_9000003368_22796cztM0_level2.evt | modeM0/AS1T03_168T01_9000003368_22796cztM0_level2_quad_clean.evt |
| Size (bytes) | 605,517,120 | 143,674,560 |
| Size | 577.5 MB | 137.0 MB |
| Events in quadrant A | 3,344,747 | 1,012,309 |
| Events in quadrant B | 3,436,375 | 1,029,753 |
| Events in quadrant C | 3,546,143 | 984,139 |
| Events in quadrant D | 7,585,793 | 886,702 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13884 | 2 |
| B | 0 | 14148 | 2 |
| C | 0 | 14617 | 2 |
| D | 0 | 26876 | 5 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6281 | 81 | 1.289604% |
| B | 6281 | 80 | 1.273683% |
| C | 6281 | 152 | 2.419997% |
| D | 6280 | 1079 | 17.181529% |

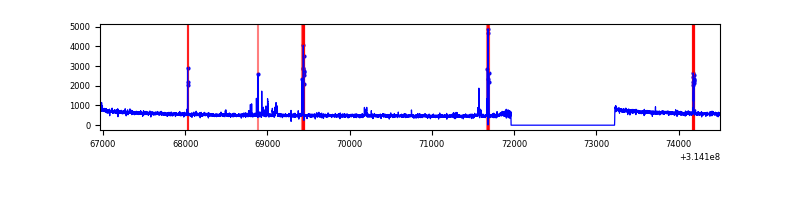

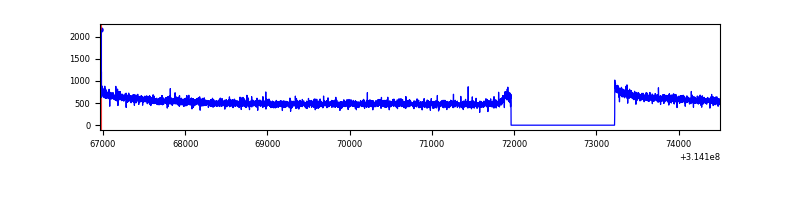

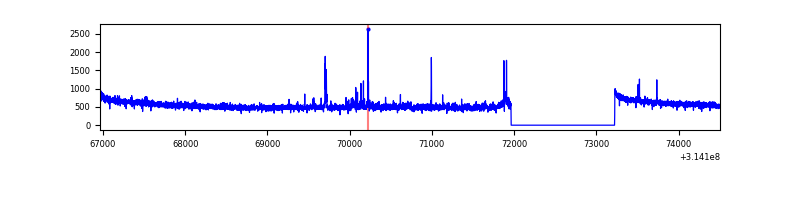

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7541 | 6282 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7541 | 6282 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7541 | 6282 | 28 | 28 | 0.37% | 0.45% |  |
| D | 7540 | 6281 | 867 | 867 | 11.50% | 13.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11947 | 65.76 | 863 | 847 | 168.8 |
| A | 0 | 175 | 9624 | 52.0 | 863 | 847 | 168.8 |
| A | 11 | 47 | 7933 | 41.98 | 863 | 847 | 168.8 |
| B | 0 | 228 | 32201 | 200.75 | 858 | 839 | 156.2 |
| B | 0 | 190 | 26682 | 165.42 | 858 | 839 | 156.2 |
| B | 12 | 111 | 17472 | 106.47 | 858 | 839 | 156.2 |
| C | 10 | 22 | 142094 | 746.39 | 834 | 845 | 189.2 |
| C | 14 | 238 | 136731 | 718.05 | 834 | 845 | 189.2 |
| C | 2 | 16 | 11651 | 57.1 | 834 | 845 | 189.2 |
| D | 1 | 52 | 4242632 | 21816.09 | 807 | 784 | 194.4 |
| D | 5 | 222 | 188880 | 967.39 | 807 | 784 | 194.4 |
| D | 2 | 152 | 48389 | 244.84 | 807 | 784 | 194.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

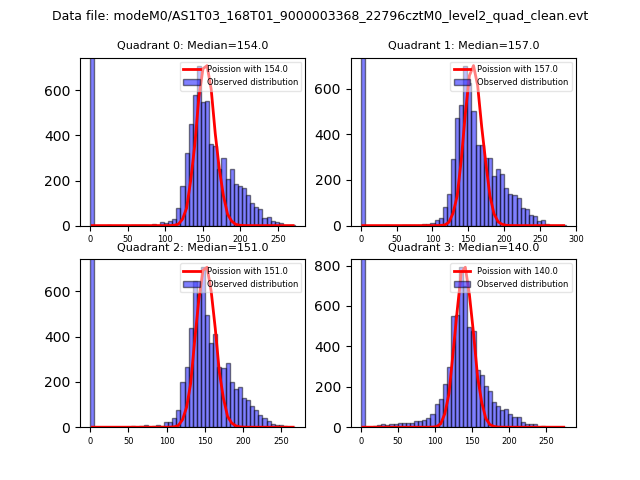

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

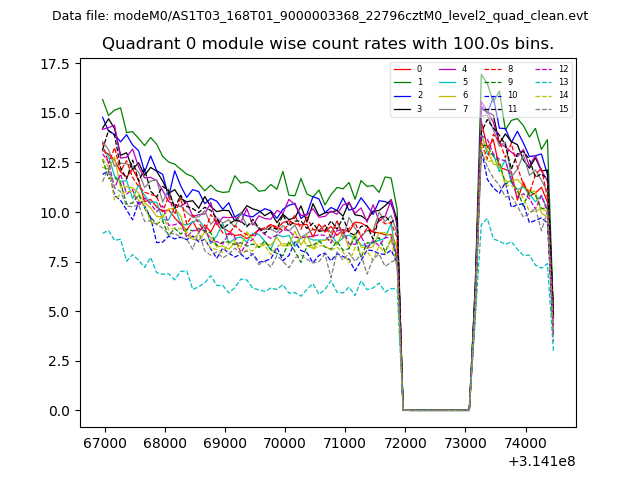

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

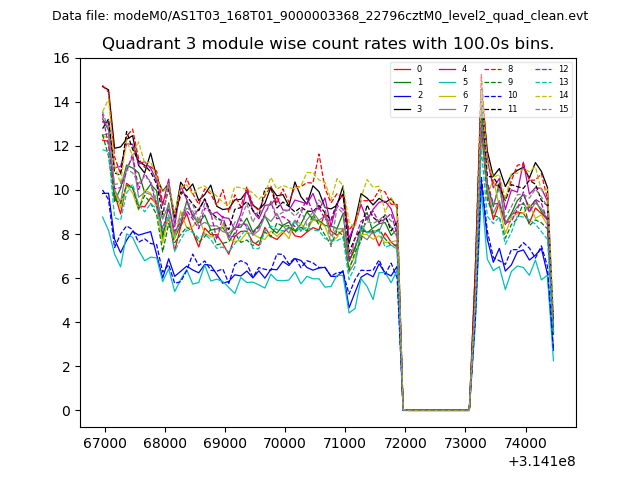

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

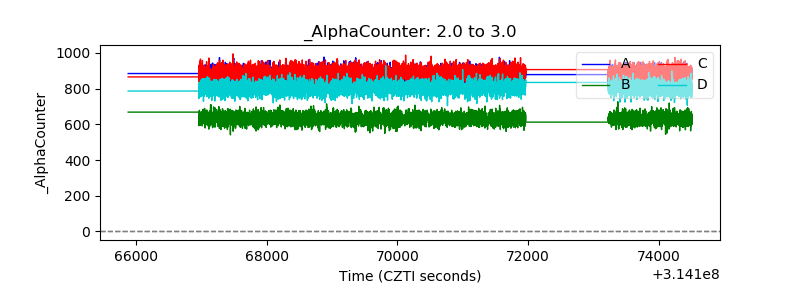

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

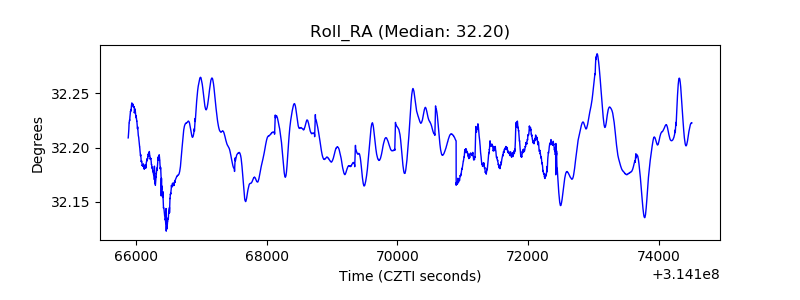

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
