| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_012T02_9000003372_22826cztM0_level2.evt | modeM0/AS1C05_012T02_9000003372_22826cztM0_level2_quad_clean.evt |
| Size (bytes) | 435,409,920 | 107,412,480 |
| Size | 415.2 MB | 102.4 MB |
| Events in quadrant A | 3,056,019 | 736,350 |
| Events in quadrant B | 2,888,347 | 749,131 |
| Events in quadrant C | 2,843,335 | 687,910 |
| Events in quadrant D | 4,002,313 | 671,739 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12652 | 1 |
| B | 0 | 12080 | 1 |
| C | 0 | 11997 | 1 |
| D | 0 | 15818 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5834 | 22 | 0.377100% |
| B | 5835 | 22 | 0.377035% |
| C | 5835 | 33 | 0.565553% |
| D | 5835 | 64 | 1.096829% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7184 | 5835 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7185 | 5836 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7185 | 5836 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7185 | 5836 | 44 | 44 | 0.61% | 0.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 47 | 175429 | 1181.38 | 747 | 733 | 147.9 |
| A | 13 | 254 | 10009 | 62.73 | 747 | 733 | 147.9 |
| A | 0 | 226 | 6630 | 39.88 | 747 | 733 | 147.9 |
| B | 12 | 111 | 15720 | 109.78 | 737 | 720 | 136.6 |
| B | 11 | 111 | 14140 | 98.22 | 737 | 720 | 136.6 |
| B | 14 | 111 | 12627 | 87.14 | 737 | 720 | 136.6 |
| C | 14 | 238 | 117642 | 733.71 | 697 | 701 | 159.4 |
| C | 13 | 61 | 4836 | 25.94 | 697 | 701 | 159.4 |
| C | 2 | 16 | 4216 | 22.05 | 697 | 701 | 159.4 |
| D | 7 | 238 | 539725 | 3208.71 | 707 | 689 | 168.0 |
| D | 1 | 52 | 463743 | 2756.41 | 707 | 689 | 168.0 |
| D | 12 | 227 | 249486 | 1481.01 | 707 | 689 | 168.0 |

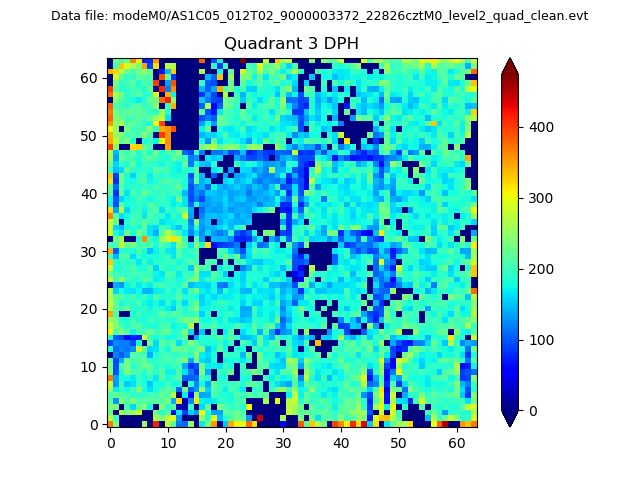

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

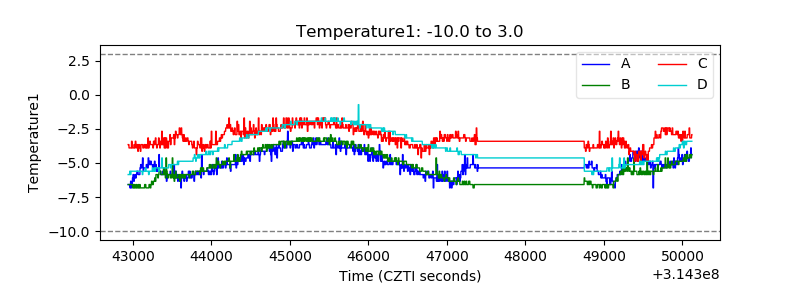

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

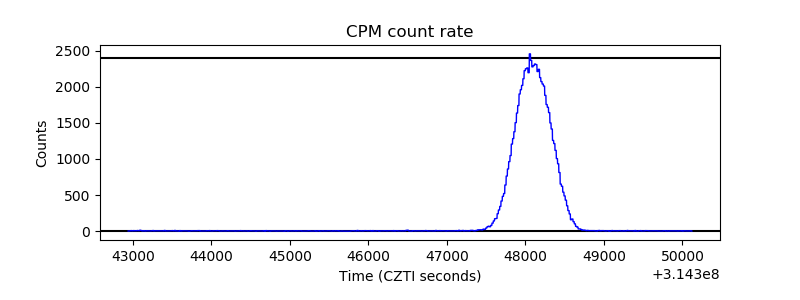

| _CPM_Rate |  |

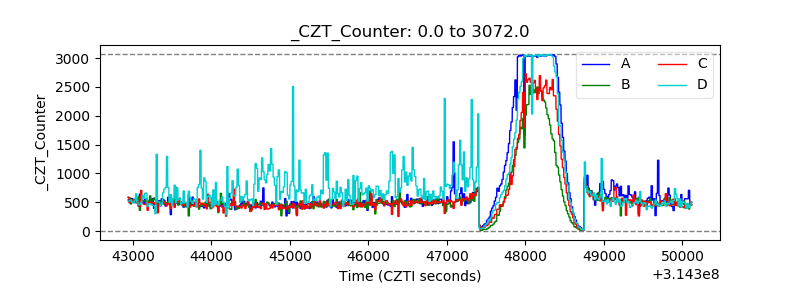

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

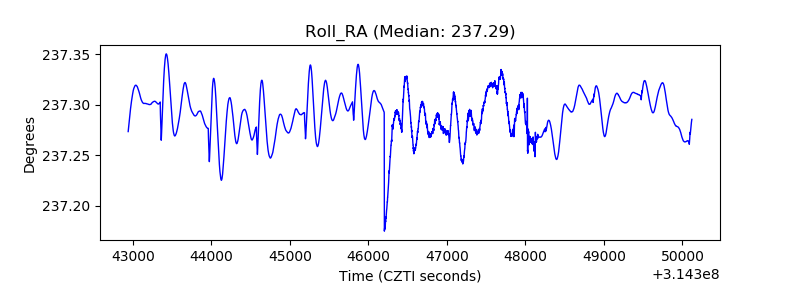

| _Roll_RA |  |
| Veto Counter |  |
