| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_012T02_9000003372_22828cztM0_level2.evt | modeM0/AS1C05_012T02_9000003372_22828cztM0_level2_quad_clean.evt |
| Size (bytes) | 442,359,360 | 109,696,320 |
| Size | 421.9 MB | 104.6 MB |
| Events in quadrant A | 3,242,154 | 743,727 |
| Events in quadrant B | 3,040,828 | 751,239 |
| Events in quadrant C | 3,023,360 | 699,535 |
| Events in quadrant D | 3,665,185 | 690,957 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13358 | 1 |
| B | 0 | 12837 | 1 |
| C | 0 | 12820 | 1 |
| D | 0 | 14854 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6255 | 76 | 1.215028% |
| B | 6256 | 53 | 0.847187% |
| C | 6256 | 70 | 1.118926% |
| D | 6256 | 164 | 2.621483% |

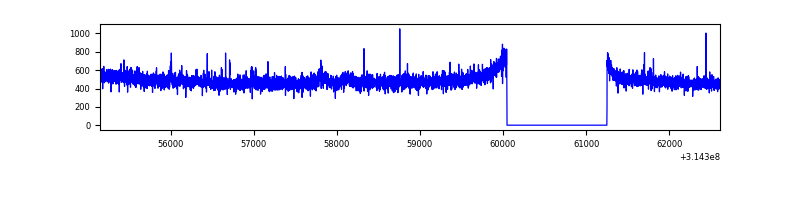

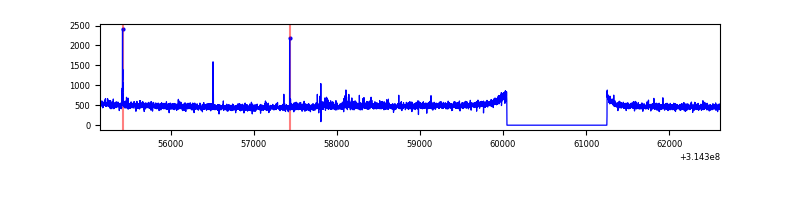

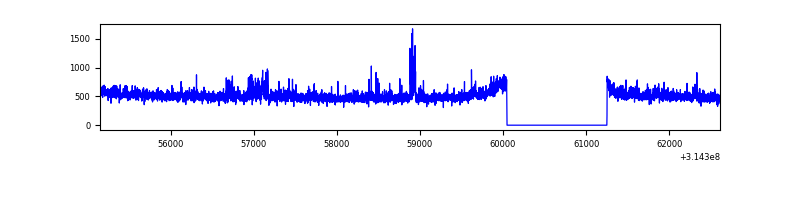

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7460 | 6256 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7461 | 6257 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7461 | 6257 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7461 | 6257 | 108 | 108 | 1.45% | 1.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 47 | 189155 | 1212.1 | 788 | 774 | 155.4 |
| A | 13 | 252 | 15052 | 91.87 | 788 | 774 | 155.4 |
| A | 13 | 254 | 11194 | 67.05 | 788 | 774 | 155.4 |
| B | 12 | 111 | 16809 | 112.24 | 769 | 753 | 143.0 |
| B | 11 | 111 | 15232 | 101.22 | 769 | 753 | 143.0 |
| B | 0 | 189 | 14427 | 95.59 | 769 | 753 | 143.0 |
| C | 14 | 238 | 119644 | 706.19 | 735 | 738 | 168.4 |
| C | 2 | 16 | 23922 | 137.69 | 735 | 738 | 168.4 |
| C | 10 | 22 | 9703 | 53.24 | 735 | 738 | 168.4 |
| D | 1 | 52 | 455101 | 2548.43 | 751 | 729 | 178.3 |
| D | 2 | 136 | 134805 | 751.99 | 751 | 729 | 178.3 |
| D | 7 | 238 | 84051 | 467.33 | 751 | 729 | 178.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

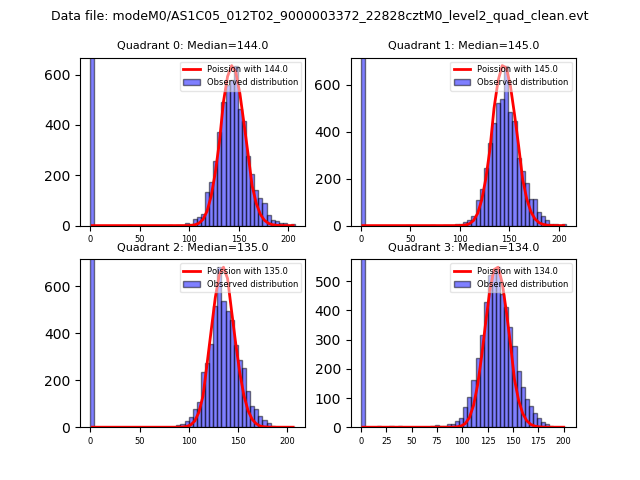

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

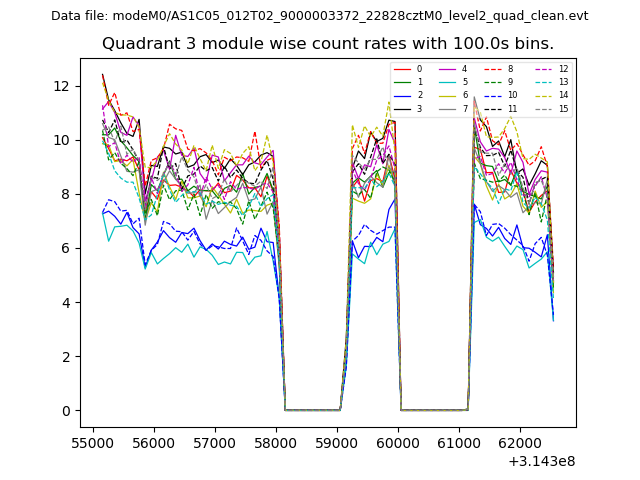

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

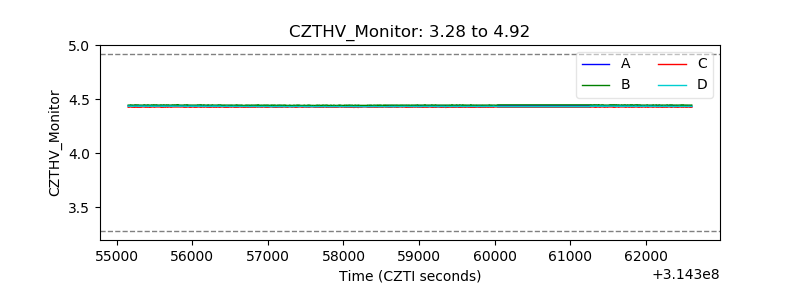

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

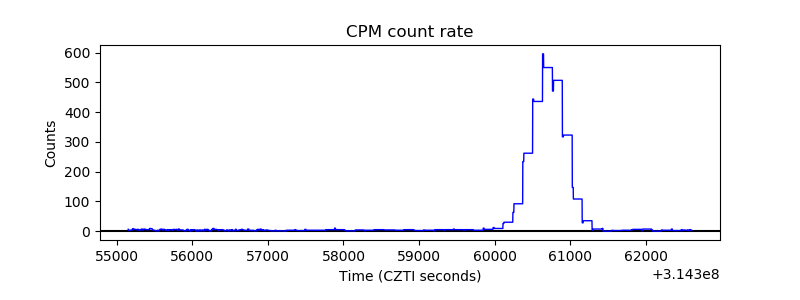

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

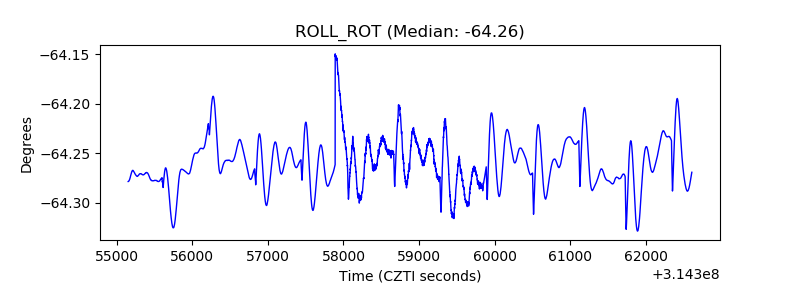

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
