| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_012T02_9000003372_22829cztM0_level2.evt | modeM0/AS1C05_012T02_9000003372_22829cztM0_level2_quad_clean.evt |
| Size (bytes) | 471,049,920 | 113,639,040 |
| Size | 449.2 MB | 108.4 MB |
| Events in quadrant A | 3,543,476 | 761,324 |
| Events in quadrant B | 3,185,891 | 770,229 |
| Events in quadrant C | 3,145,998 | 726,858 |
| Events in quadrant D | 3,933,922 | 715,012 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14669 | 2 |
| B | 0 | 13764 | 2 |
| C | 0 | 13649 | 2 |
| D | 0 | 15992 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6720 | 75 | 1.116071% |
| B | 6720 | 51 | 0.758929% |
| C | 6720 | 72 | 1.071429% |
| D | 6721 | 139 | 2.068145% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7630 | 6721 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7630 | 6721 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7630 | 6721 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7631 | 6722 | 84 | 84 | 1.10% | 1.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 47 | 316580 | 1950.18 | 819 | 804 | 161.9 |
| A | 13 | 252 | 65475 | 399.4 | 819 | 804 | 161.9 |
| A | 13 | 254 | 11953 | 68.85 | 819 | 804 | 161.9 |
| B | 12 | 111 | 18040 | 114.01 | 805 | 787 | 151.3 |
| B | 11 | 111 | 16251 | 102.19 | 805 | 787 | 151.3 |
| B | 0 | 230 | 16141 | 101.46 | 805 | 787 | 151.3 |
| C | 14 | 238 | 124554 | 690.88 | 773 | 776 | 179.2 |
| C | 13 | 61 | 5370 | 25.64 | 773 | 776 | 179.2 |
| C | 0 | 10 | 4746 | 22.16 | 773 | 776 | 179.2 |
| D | 1 | 52 | 697496 | 3672.38 | 789 | 767 | 189.7 |
| D | 7 | 238 | 138365 | 725.26 | 789 | 767 | 189.7 |
| D | 12 | 227 | 31752 | 163.32 | 789 | 767 | 189.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

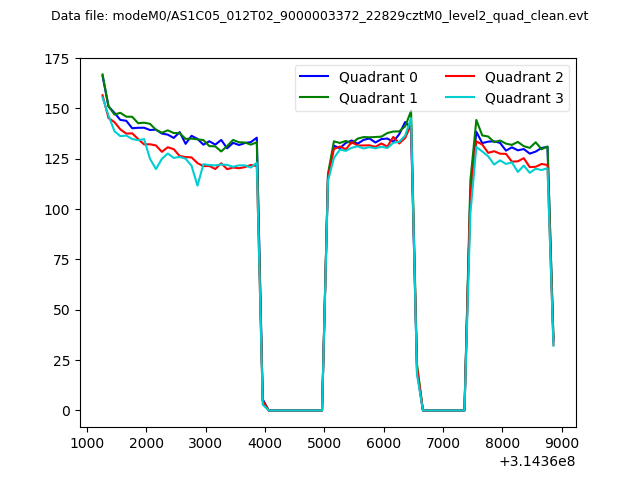

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

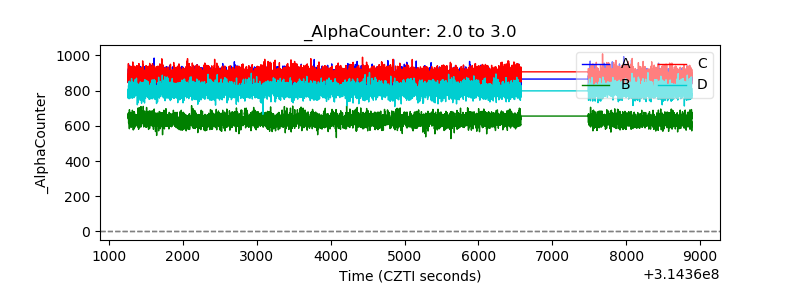

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
