| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_012T02_9000003372_22832cztM0_level2.evt | modeM0/AS1C05_012T02_9000003372_22832cztM0_level2_quad_clean.evt |
| Size (bytes) | 512,599,680 | 114,609,600 |
| Size | 488.9 MB | 109.3 MB |
| Events in quadrant A | 3,545,227 | 753,518 |
| Events in quadrant B | 3,621,019 | 761,781 |
| Events in quadrant C | 3,532,477 | 719,388 |
| Events in quadrant D | 4,312,550 | 711,077 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15455 | 2 |
| B | 0 | 15687 | 2 |
| C | 0 | 15389 | 2 |
| D | 0 | 17639 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7550 | 46 | 0.609272% |
| B | 7550 | 80 | 1.059603% |
| C | 7550 | 111 | 1.470199% |
| D | 7549 | 90 | 1.192211% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

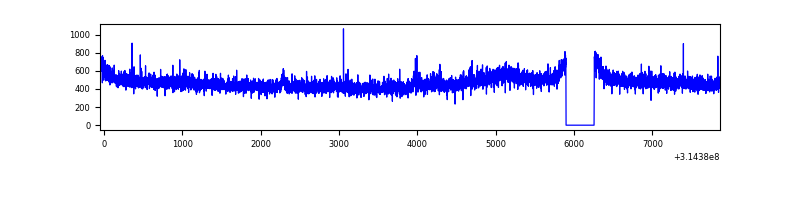

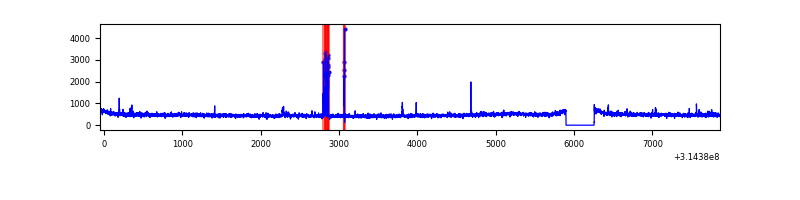

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7910 | 7551 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7910 | 7551 | 17 | 17 | 0.21% | 0.23% |  |
| C | 7910 | 7551 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7909 | 7550 | 22 | 22 | 0.28% | 0.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 252 | 55101 | 297.0 | 904 | 883 | 182.5 |
| A | 13 | 254 | 13546 | 69.37 | 904 | 883 | 182.5 |
| A | 3 | 137 | 8025 | 39.12 | 904 | 883 | 182.5 |
| B | 0 | 230 | 95825 | 555.33 | 893 | 868 | 171.0 |
| B | 12 | 111 | 21031 | 117.92 | 893 | 868 | 171.0 |
| B | 11 | 111 | 19000 | 106.04 | 893 | 868 | 171.0 |
| C | 14 | 238 | 137749 | 678.4 | 862 | 866 | 201.8 |
| C | 8 | 128 | 13954 | 64.86 | 862 | 866 | 201.8 |
| C | 10 | 22 | 11078 | 50.61 | 862 | 866 | 201.8 |
| D | 1 | 52 | 319635 | 1500.56 | 879 | 851 | 212.4 |
| D | 12 | 227 | 237444 | 1113.68 | 879 | 851 | 212.4 |
| D | 7 | 238 | 143312 | 670.58 | 879 | 851 | 212.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

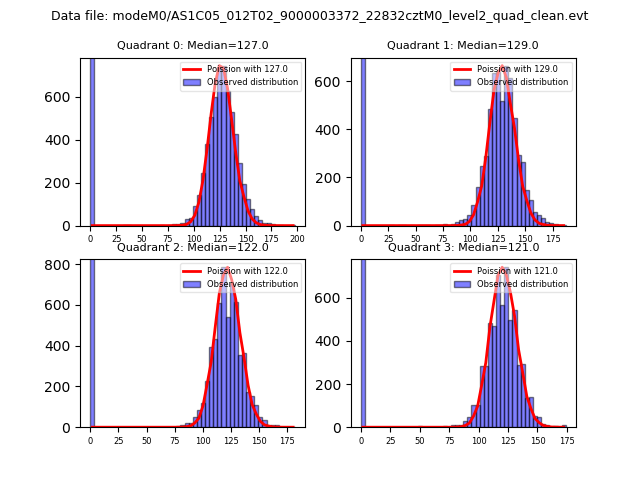

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

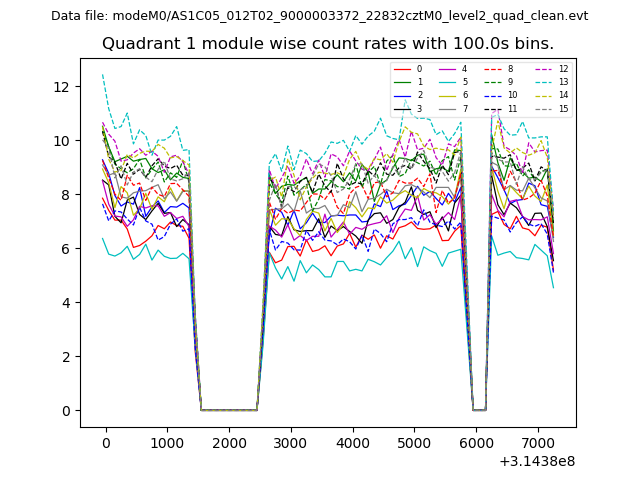

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

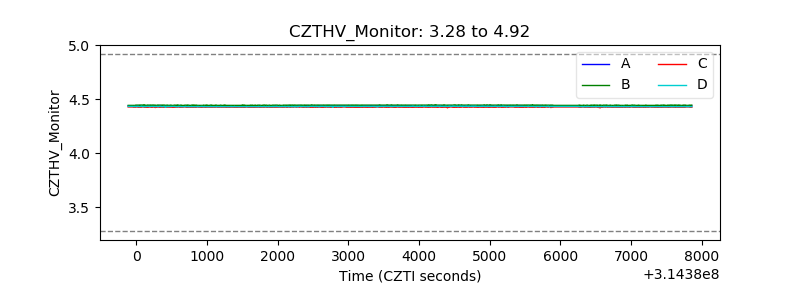

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

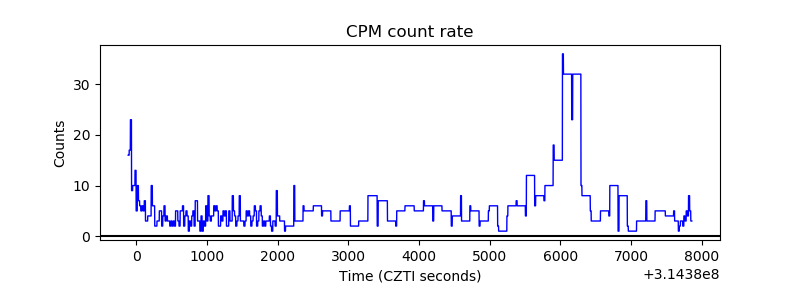

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

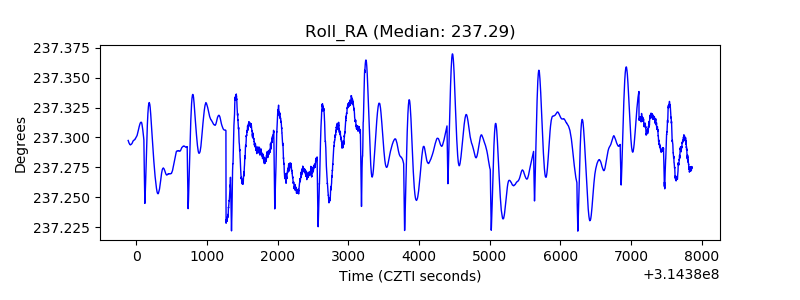

| _Roll_RA |  |
| Veto Counter |  |
