| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_001T01_9000003374_22842cztM0_level2.evt | modeM0/AS1C05_001T01_9000003374_22842cztM0_level2_quad_clean.evt |
| Size (bytes) | 590,794,560 | 132,318,720 |
| Size | 563.4 MB | 126.2 MB |
| Events in quadrant A | 3,186,010 | 936,858 |
| Events in quadrant B | 3,292,062 | 949,683 |
| Events in quadrant C | 3,168,611 | 908,785 |
| Events in quadrant D | 7,834,369 | 787,754 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13049 | 0 |
| B | 0 | 13314 | 0 |
| C | 0 | 13131 | 0 |
| D | 0 | 27496 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6072 | 71 | 1.169302% |
| B | 6073 | 104 | 1.712498% |
| C | 6073 | 145 | 2.387617% |
| D | 6073 | 1272 | 20.945167% |

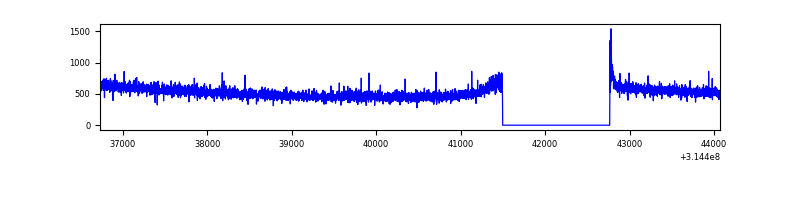

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7342 | 6073 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7343 | 6074 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7343 | 6074 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7343 | 6074 | 1108 | 1108 | 15.09% | 18.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 47 | 52456 | 322.14 | 811 | 796 | 160.4 |
| A | 13 | 254 | 11055 | 63.97 | 811 | 796 | 160.4 |
| A | 13 | 252 | 7362 | 40.94 | 811 | 796 | 160.4 |
| B | 0 | 190 | 55054 | 369.44 | 801 | 784 | 146.9 |
| B | 3 | 209 | 34172 | 227.29 | 801 | 784 | 146.9 |
| B | 0 | 228 | 20353 | 133.21 | 801 | 784 | 146.9 |
| C | 14 | 238 | 126777 | 712.86 | 774 | 780 | 176.7 |
| C | 0 | 10 | 14590 | 78.13 | 774 | 780 | 176.7 |
| C | 0 | 239 | 10688 | 56.06 | 774 | 780 | 176.7 |
| D | 7 | 238 | 3763215 | 21868.87 | 722 | 704 | 172.0 |
| D | 1 | 52 | 816955 | 4744.3 | 722 | 704 | 172.0 |
| D | 2 | 152 | 228318 | 1322.96 | 722 | 704 | 172.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

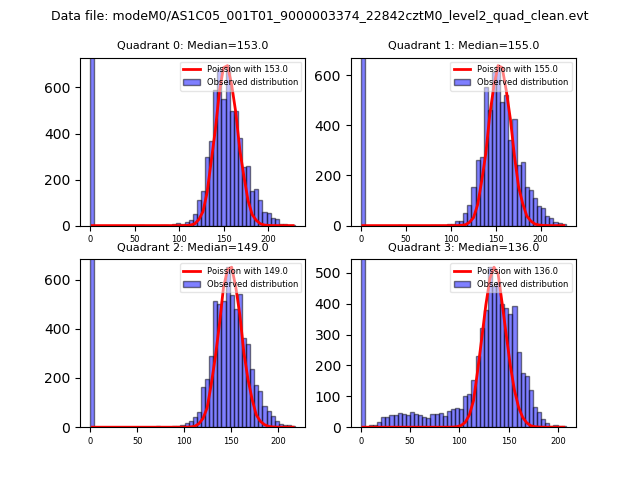

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

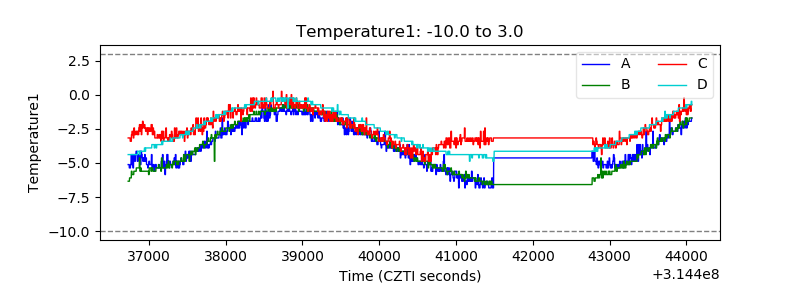

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

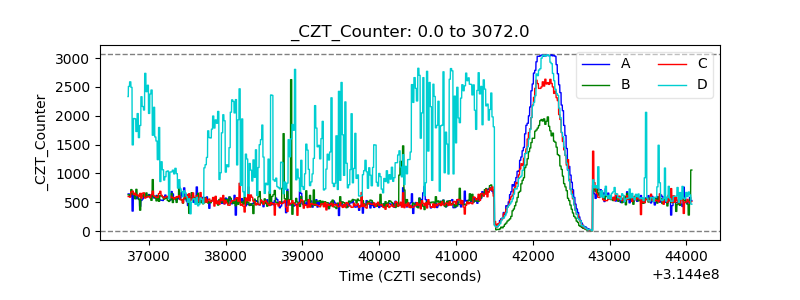

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

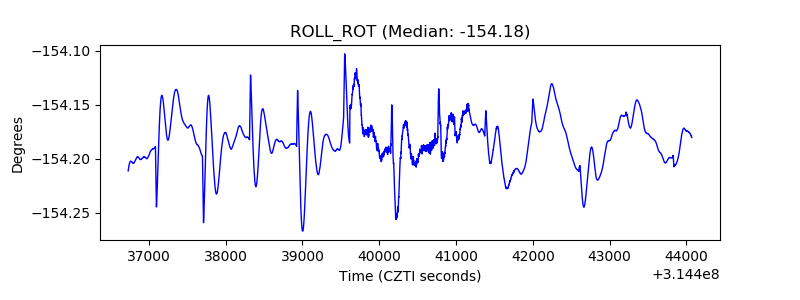

| _ROLL_ROT |  |

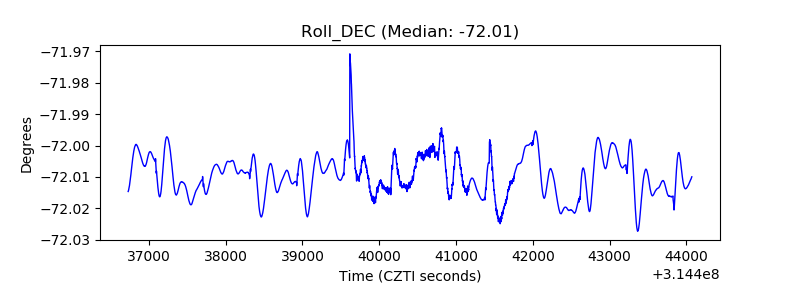

| _Roll_DEC |  |

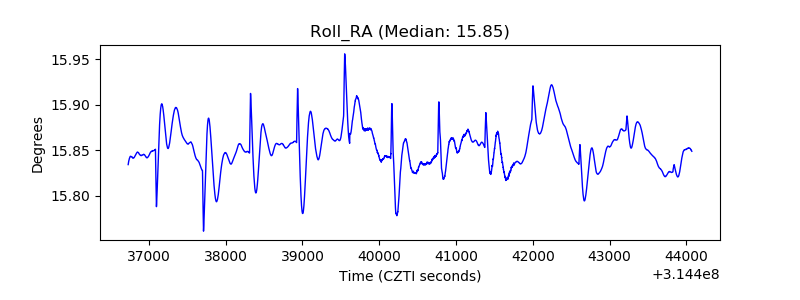

| _Roll_RA |  |
| Veto Counter |  |
