| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_001T01_9000003374_22845cztM0_level2.evt | modeM0/AS1C05_001T01_9000003374_22845cztM0_level2_quad_clean.evt |
| Size (bytes) | 548,974,080 | 138,726,720 |
| Size | 523.5 MB | 132.3 MB |
| Events in quadrant A | 4,047,851 | 941,993 |
| Events in quadrant B | 3,618,441 | 954,986 |
| Events in quadrant C | 3,381,631 | 912,684 |
| Events in quadrant D | 5,082,554 | 883,892 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16757 | 0 |
| B | 0 | 15417 | 0 |
| C | 0 | 14966 | 0 |
| D | 0 | 20046 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7297 | 95 | 1.301905% |
| B | 7298 | 85 | 1.164703% |
| C | 7298 | 89 | 1.219512% |
| D | 7298 | 237 | 3.247465% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7637 | 7298 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7638 | 7299 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7638 | 7299 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7638 | 7298 | 163 | 163 | 2.13% | 2.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 47 | 670199 | 3810.65 | 872 | 855 | 175.7 |
| A | 13 | 254 | 13757 | 73.45 | 872 | 855 | 175.7 |
| A | 0 | 226 | 7804 | 39.56 | 872 | 855 | 175.7 |
| B | 0 | 190 | 108347 | 661.99 | 868 | 848 | 162.4 |
| B | 4 | 21 | 33981 | 204.04 | 868 | 848 | 162.4 |
| B | 0 | 228 | 19950 | 117.63 | 868 | 848 | 162.4 |
| C | 14 | 238 | 132091 | 681.97 | 829 | 833 | 192.5 |
| C | 0 | 207 | 13486 | 65.74 | 829 | 833 | 192.5 |
| C | 13 | 61 | 5927 | 26.46 | 829 | 833 | 192.5 |
| D | 1 | 52 | 652381 | 3184.66 | 838 | 810 | 204.6 |
| D | 7 | 238 | 438424 | 2138.91 | 838 | 810 | 204.6 |
| D | 1 | 239 | 369050 | 1799.83 | 838 | 810 | 204.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

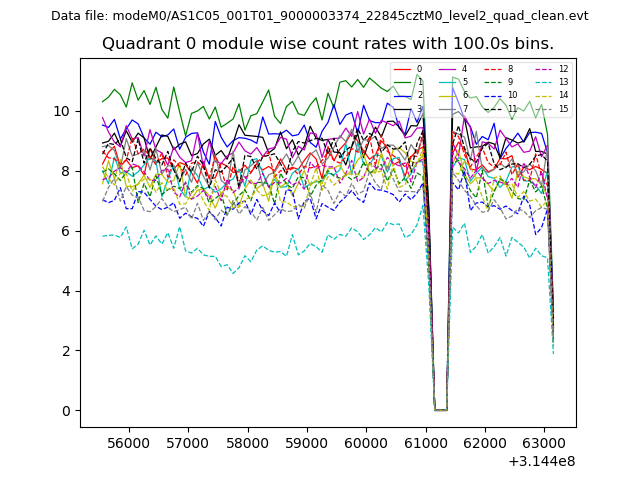

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

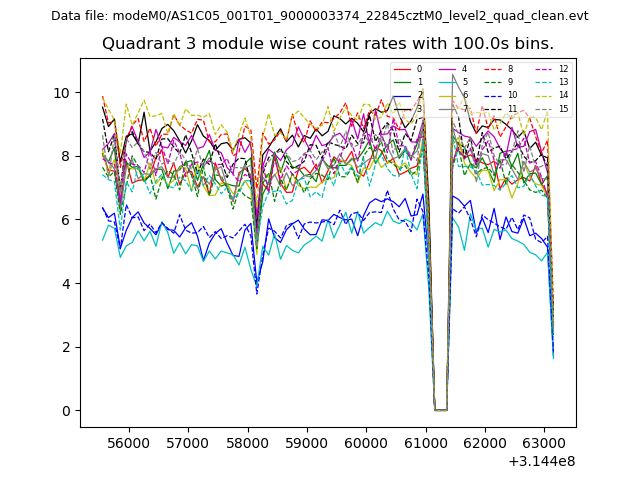

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

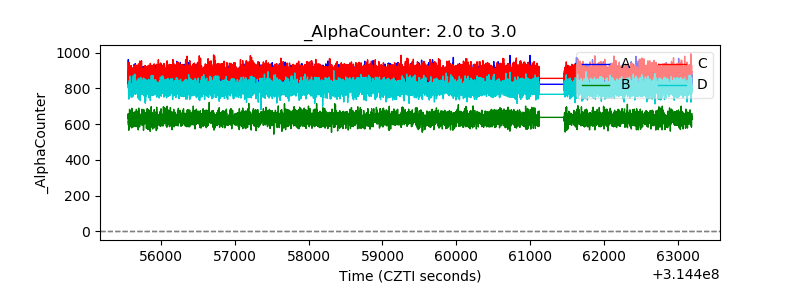

| Alpha Counter |  |
| _CPM_Rate |  |

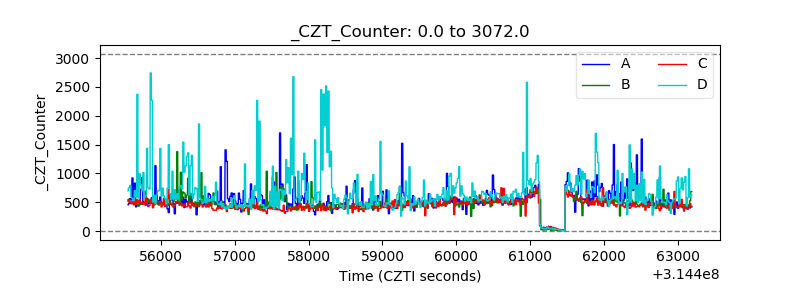

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

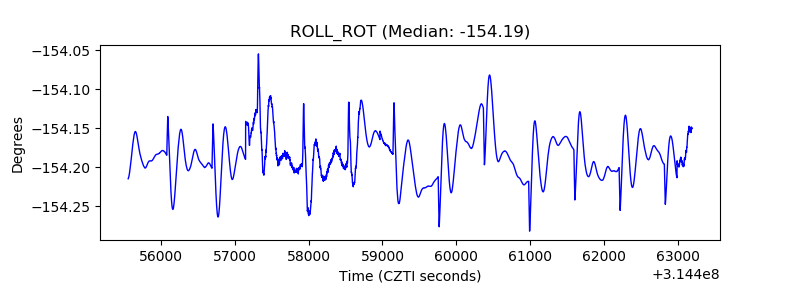

| _ROLL_ROT |  |
| _Roll_DEC |  |

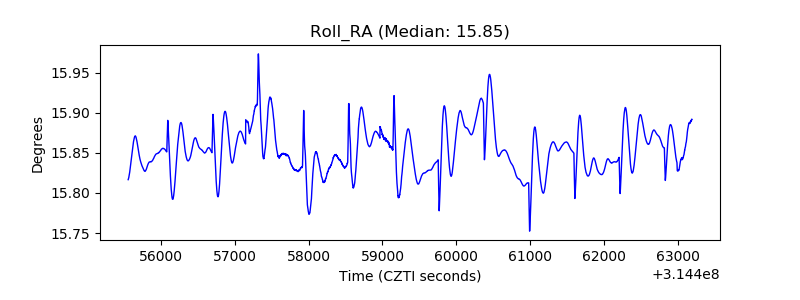

| _Roll_RA |  |
| Veto Counter |  |
