| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_054T01_9000003378_22854cztM0_level2.evt | modeM0/AS1A07_054T01_9000003378_22854cztM0_level2_quad_clean.evt |
| Size (bytes) | 552,107,520 | 119,744,640 |
| Size | 526.5 MB | 114.2 MB |
| Events in quadrant A | 2,947,338 | 863,685 |
| Events in quadrant B | 2,921,609 | 871,219 |
| Events in quadrant C | 2,827,186 | 811,813 |
| Events in quadrant D | 7,622,637 | 665,540 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12332 | 1 |
| B | 0 | 12301 | 1 |
| C | 0 | 12153 | 2 |
| D | 0 | 26696 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5924 | 17 | 0.286968% |
| B | 5924 | 25 | 0.422012% |
| C | 5923 | 34 | 0.574033% |
| D | 5924 | 1798 | 30.351114% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7204 | 5925 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7204 | 5925 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7203 | 5924 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7204 | 5923 | 1495 | 1495 | 20.75% | 25.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 252 | 74523 | 503.07 | 739 | 726 | 146.7 |
| A | 4 | 2 | 20075 | 131.9 | 739 | 726 | 146.7 |
| A | 13 | 254 | 10025 | 63.39 | 739 | 726 | 146.7 |
| B | 0 | 189 | 17109 | 119.83 | 735 | 717 | 136.8 |
| B | 0 | 190 | 15842 | 110.56 | 735 | 717 | 136.8 |
| B | 12 | 111 | 15564 | 108.53 | 735 | 717 | 136.8 |
| C | 14 | 238 | 114595 | 720.91 | 690 | 694 | 158.0 |
| C | 0 | 239 | 16144 | 97.79 | 690 | 694 | 158.0 |
| C | 13 | 61 | 4846 | 26.28 | 690 | 694 | 158.0 |
| D | 7 | 238 | 3864106 | 26418.53 | 608 | 590 | 146.2 |
| D | 1 | 52 | 737645 | 5039.95 | 608 | 590 | 146.2 |
| D | 13 | 249 | 550410 | 3759.64 | 608 | 590 | 146.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

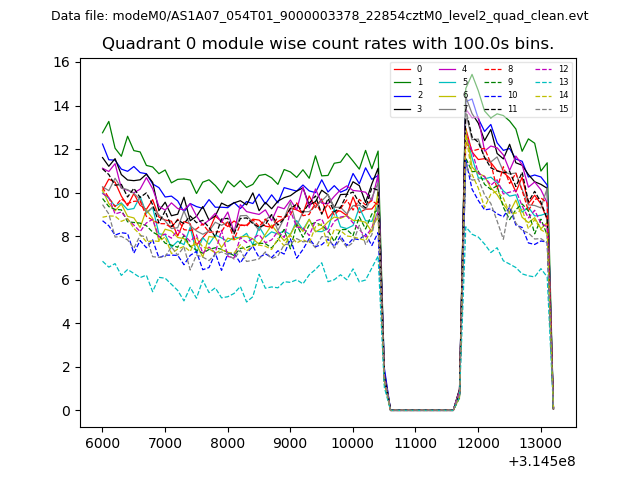

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

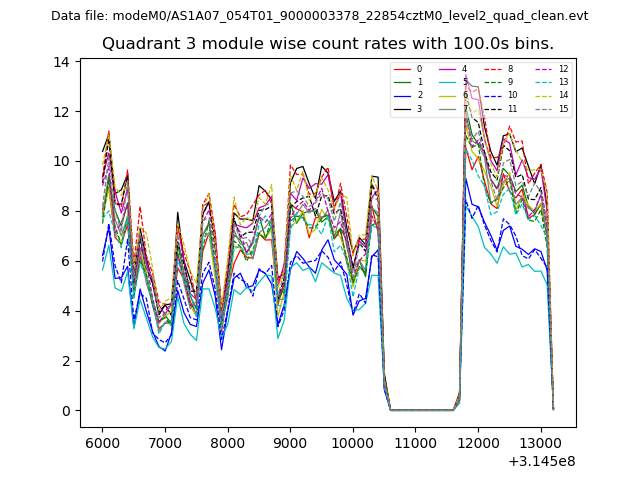

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

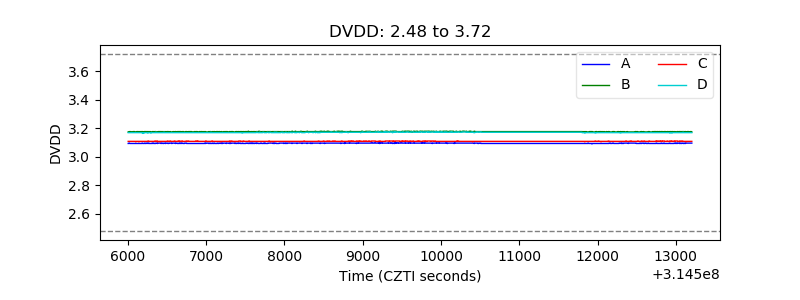

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

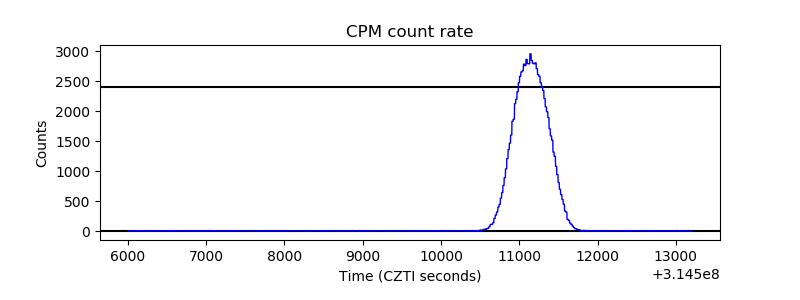

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

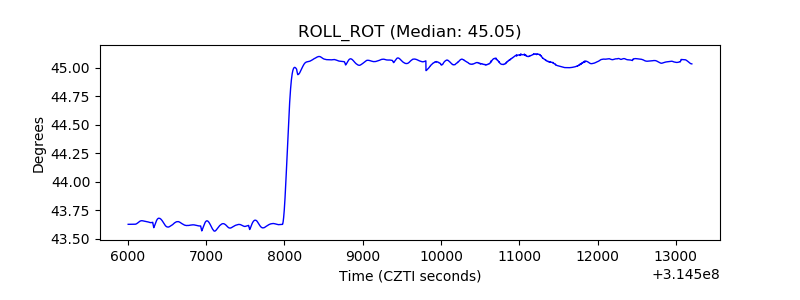

| _ROLL_ROT |  |

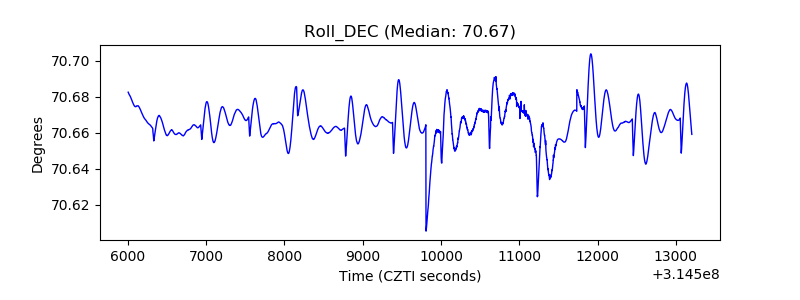

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
