| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_054T01_9000003378_22867cztM0_level2.evt | modeM0/AS1A07_054T01_9000003378_22867cztM0_level2_quad_clean.evt |
| Size (bytes) | 488,082,240 | 132,292,800 |
| Size | 465.5 MB | 126.2 MB |
| Events in quadrant A | 3,101,454 | 908,845 |
| Events in quadrant B | 3,179,663 | 921,248 |
| Events in quadrant C | 3,161,319 | 872,922 |
| Events in quadrant D | 4,885,436 | 838,130 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13673 | 2 |
| B | 0 | 13899 | 2 |
| C | 0 | 13923 | 2 |
| D | 0 | 19320 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6682 | 9 | 0.134690% |
| B | 6682 | 30 | 0.448967% |
| C | 6682 | 49 | 0.733313% |
| D | 6682 | 266 | 3.980844% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7817 | 6683 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7817 | 6683 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7817 | 6683 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7817 | 6683 | 209 | 209 | 2.67% | 3.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 47 | 11529 | 67.54 | 801 | 785 | 159.1 |
| A | 13 | 254 | 11122 | 64.98 | 801 | 785 | 159.1 |
| A | 0 | 226 | 6924 | 38.59 | 801 | 785 | 159.1 |
| B | 0 | 230 | 19444 | 124.13 | 803 | 783 | 150.3 |
| B | 12 | 111 | 17789 | 113.12 | 803 | 783 | 150.3 |
| B | 0 | 190 | 17612 | 111.95 | 803 | 783 | 150.3 |
| C | 14 | 238 | 122939 | 687.77 | 766 | 771 | 177.6 |
| C | 10 | 22 | 41860 | 231.32 | 766 | 771 | 177.6 |
| C | 0 | 10 | 7088 | 35.56 | 766 | 771 | 177.6 |
| D | 7 | 238 | 1371032 | 7449.1 | 762 | 739 | 184.0 |
| D | 13 | 153 | 285850 | 1549.9 | 762 | 739 | 184.0 |
| D | 2 | 152 | 92260 | 497.52 | 762 | 739 | 184.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

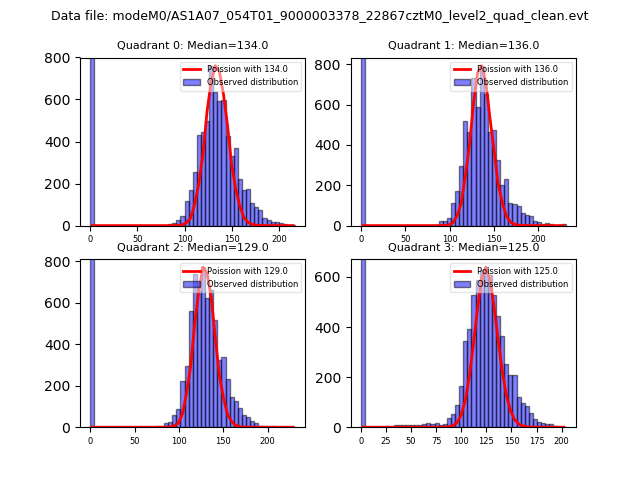

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

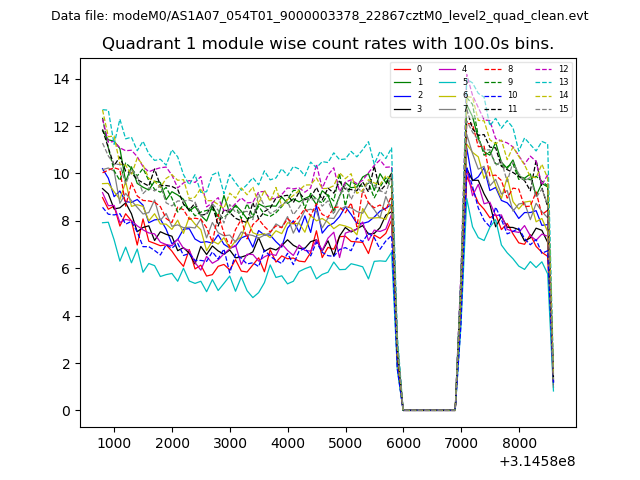

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

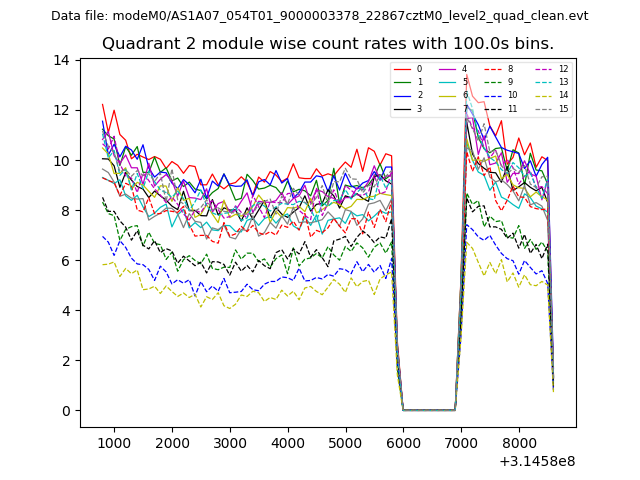

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

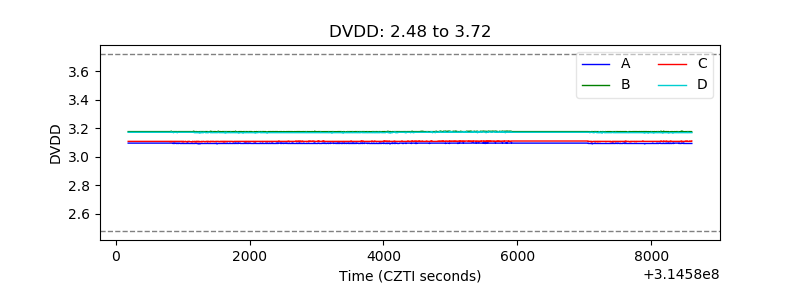

| D_VDD |  |

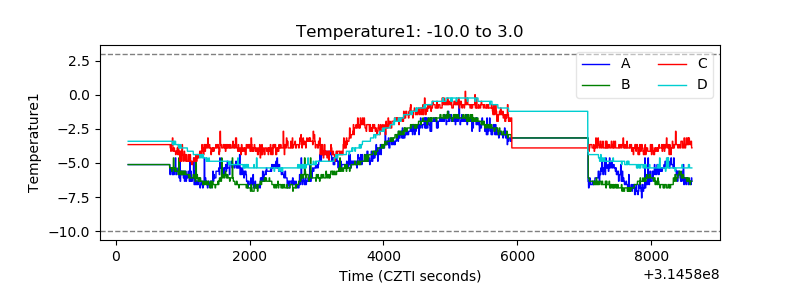

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

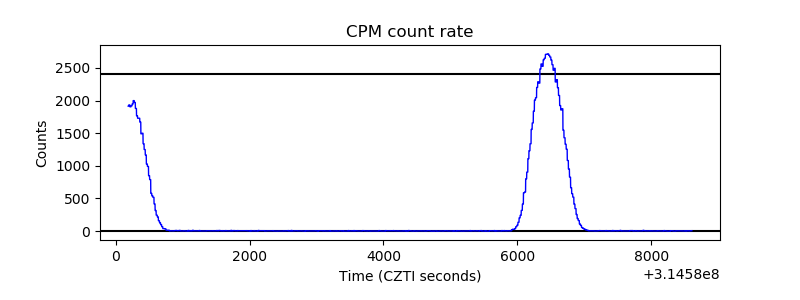

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
