| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_054T01_9000003378_22868cztM0_level2.evt | modeM0/AS1A07_054T01_9000003378_22868cztM0_level2_quad_clean.evt |
| Size (bytes) | 476,403,840 | 124,185,600 |
| Size | 454.3 MB | 118.4 MB |
| Events in quadrant A | 2,874,683 | 865,284 |
| Events in quadrant B | 2,932,474 | 876,373 |
| Events in quadrant C | 2,910,628 | 821,498 |
| Events in quadrant D | 5,295,045 | 771,358 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12463 | 1 |
| B | 0 | 12606 | 1 |
| C | 0 | 12603 | 1 |
| D | 0 | 20172 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6113 | 10 | 0.163586% |
| B | 6114 | 12 | 0.196271% |
| C | 6114 | 40 | 0.654236% |
| D | 6114 | 539 | 8.815833% |

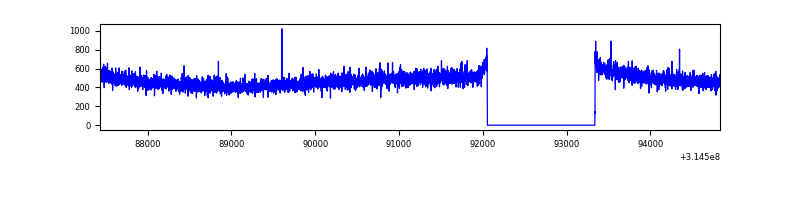

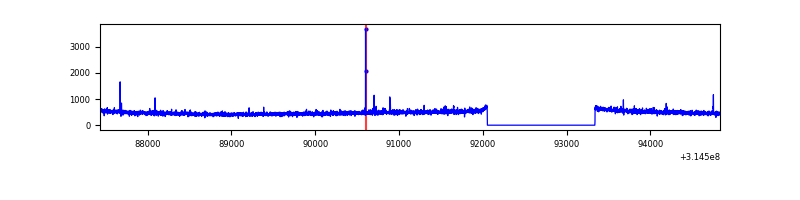

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7398 | 6114 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7399 | 6115 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7399 | 6115 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7399 | 6115 | 435 | 435 | 5.88% | 7.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9809 | 61.02 | 745 | 732 | 148.8 |
| A | 0 | 226 | 6541 | 39.05 | 745 | 732 | 148.8 |
| A | 3 | 137 | 5927 | 34.92 | 745 | 732 | 148.8 |
| B | 12 | 111 | 15669 | 108.4 | 743 | 726 | 137.9 |
| B | 11 | 111 | 14011 | 96.37 | 743 | 726 | 137.9 |
| B | 14 | 111 | 12377 | 84.52 | 743 | 726 | 137.9 |
| C | 14 | 238 | 115605 | 710.53 | 704 | 708 | 161.7 |
| C | 0 | 10 | 32040 | 193.76 | 704 | 708 | 161.7 |
| C | 9 | 54 | 12033 | 70.03 | 704 | 708 | 161.7 |
| D | 7 | 238 | 1777312 | 10521.5 | 691 | 671 | 168.9 |
| D | 10 | 230 | 378571 | 2237.97 | 691 | 671 | 168.9 |
| D | 9 | 1 | 217682 | 1285.16 | 691 | 671 | 168.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

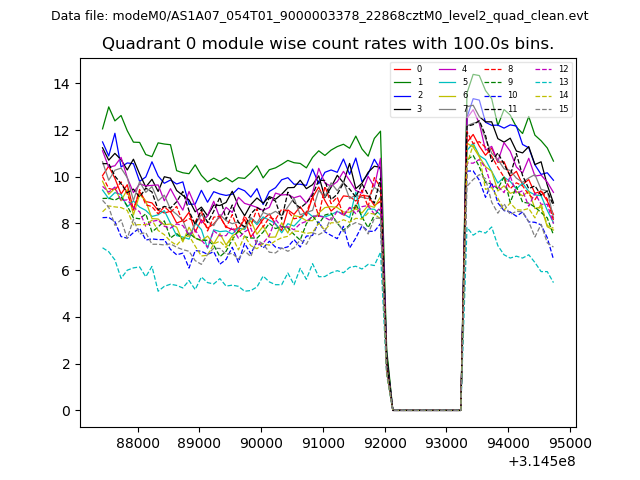

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

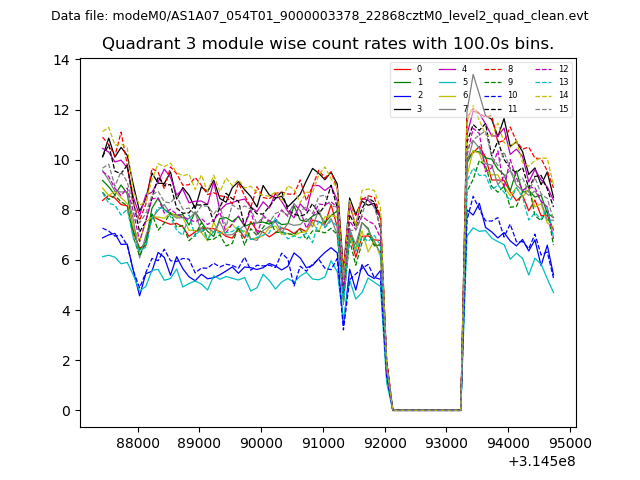

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

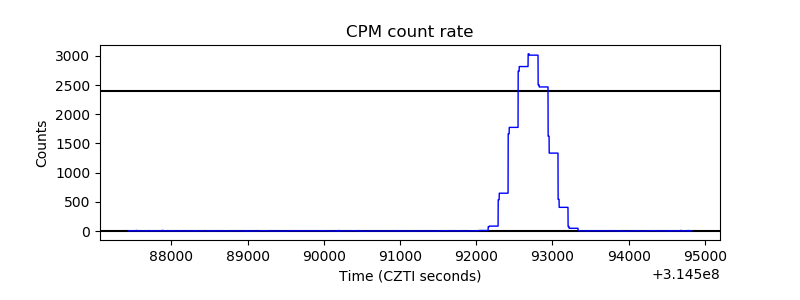

| _CPM_Rate |  |

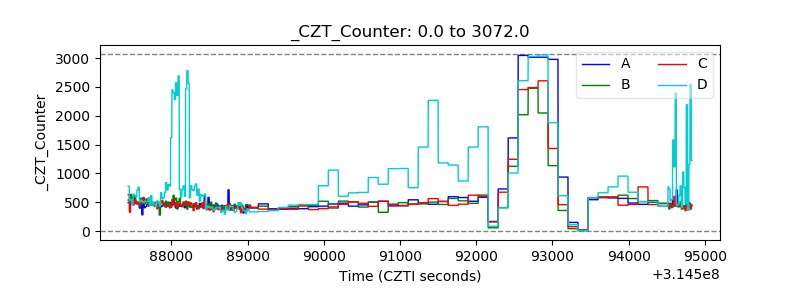

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

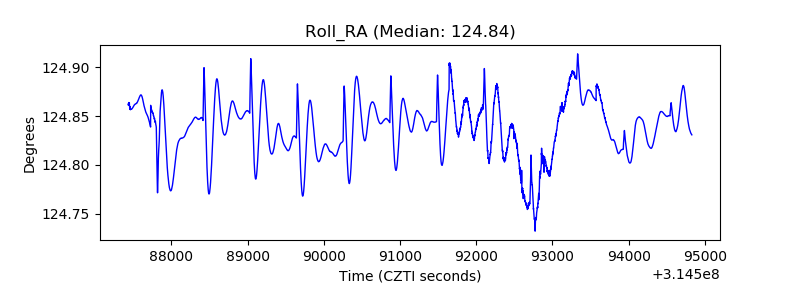

| _Roll_RA |  |

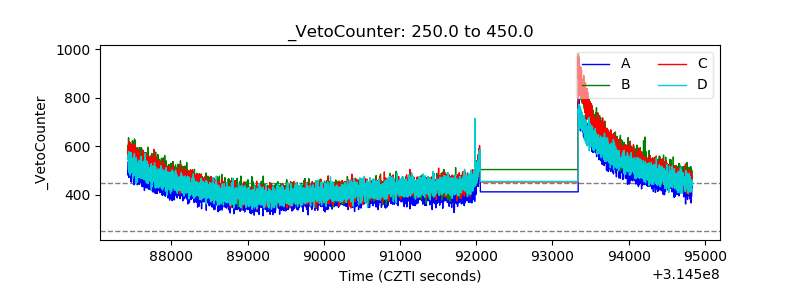

| Veto Counter |  |
