| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_054T01_9000003378_22869cztM0_level2.evt | modeM0/AS1A07_054T01_9000003378_22869cztM0_level2_quad_clean.evt |
| Size (bytes) | 481,121,280 | 134,608,320 |
| Size | 458.8 MB | 128.4 MB |
| Events in quadrant A | 3,112,459 | 944,271 |
| Events in quadrant B | 3,173,604 | 955,791 |
| Events in quadrant C | 3,116,241 | 884,304 |
| Events in quadrant D | 4,741,395 | 853,688 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13053 | 2 |
| B | 0 | 13252 | 2 |
| C | 0 | 13178 | 2 |
| D | 0 | 18345 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6293 | 37 | 0.587955% |
| B | 6293 | 44 | 0.699190% |
| C | 6293 | 70 | 1.112347% |
| D | 6293 | 207 | 3.289369% |

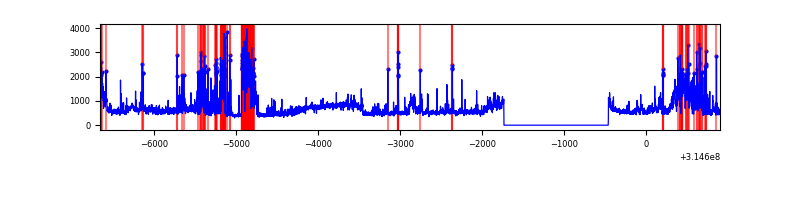

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7568 | 6294 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7568 | 6294 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7568 | 6294 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7568 | 6294 | 192 | 192 | 2.54% | 3.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10182 | 59.11 | 806 | 795 | 158.8 |
| A | 0 | 226 | 7010 | 39.14 | 806 | 795 | 158.8 |
| A | 3 | 137 | 6334 | 34.88 | 806 | 795 | 158.8 |
| B | 0 | 190 | 31590 | 206.69 | 799 | 782 | 149.1 |
| B | 12 | 111 | 17123 | 109.63 | 799 | 782 | 149.1 |
| B | 11 | 111 | 15065 | 95.82 | 799 | 782 | 149.1 |
| C | 14 | 238 | 123933 | 707.63 | 754 | 759 | 174.1 |
| C | 0 | 10 | 38846 | 218.81 | 754 | 759 | 174.1 |
| C | 7 | 247 | 9955 | 52.83 | 754 | 759 | 174.1 |
| D | 9 | 1 | 1004150 | 5521.57 | 757 | 734 | 181.7 |
| D | 7 | 238 | 708785 | 3896.25 | 757 | 734 | 181.7 |
| D | 13 | 153 | 47091 | 255.09 | 757 | 734 | 181.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

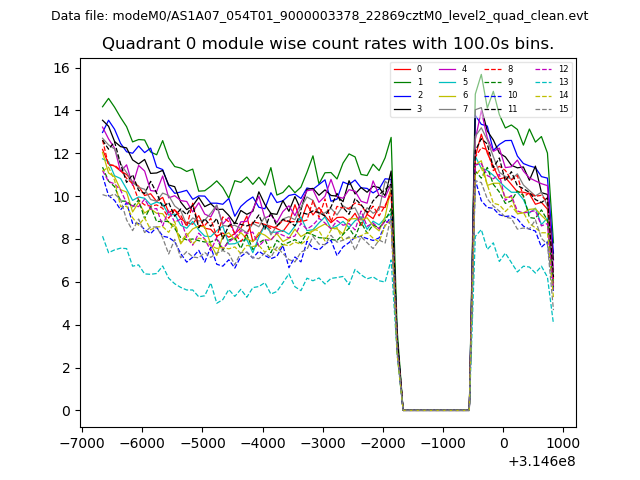

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

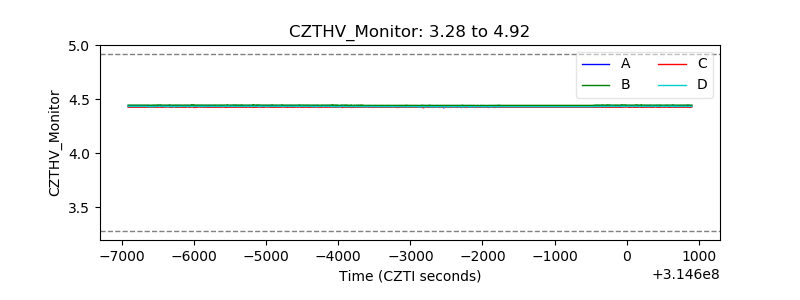

| CZT HV Monitor |  |

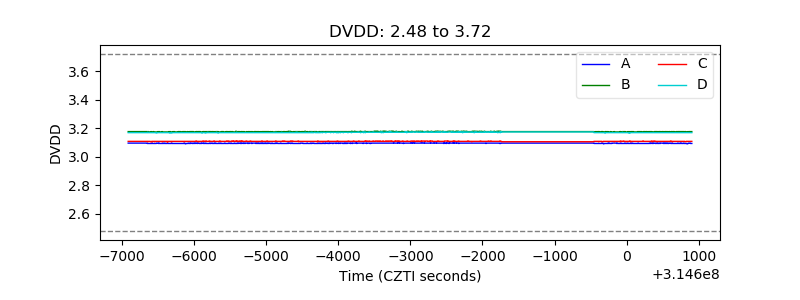

| D_VDD |  |

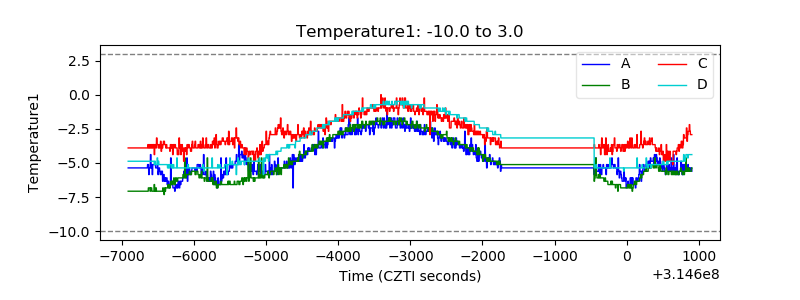

| Temperature 1 |  |
| Veto HV Monitor |  |

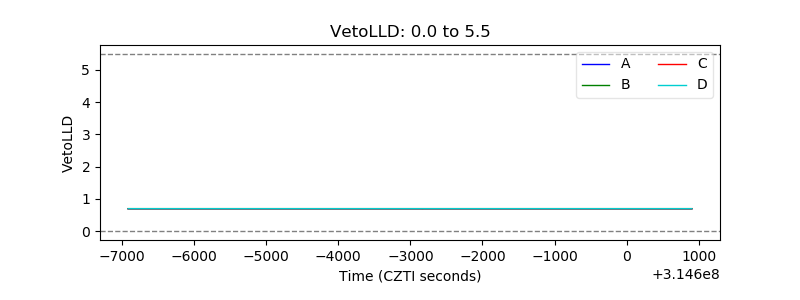

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

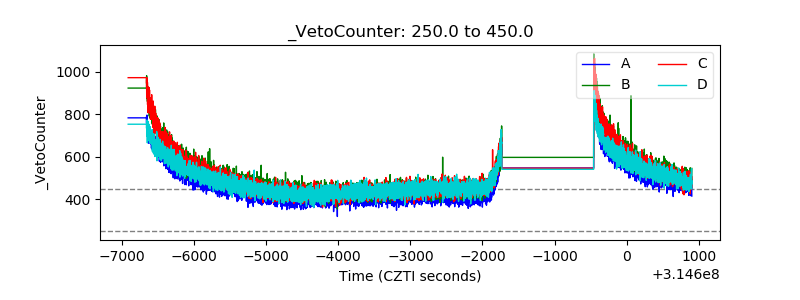

| Veto Counter |  |
