| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_009T01_9000003382_22887cztM0_level2.evt | modeM0/AS1A08_009T01_9000003382_22887cztM0_level2_quad_clean.evt |
| Size (bytes) | 550,255,680 | 100,117,440 |
| Size | 524.8 MB | 95.5 MB |
| Events in quadrant A | 3,089,629 | 668,039 |
| Events in quadrant B | 3,133,370 | 676,728 |
| Events in quadrant C | 3,053,871 | 641,422 |
| Events in quadrant D | 6,938,746 | 583,775 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13474 | 1 |
| B | 0 | 13546 | 1 |
| C | 0 | 13429 | 1 |
| D | 0 | 25091 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6624 | 90 | 1.358696% |
| B | 6625 | 89 | 1.343396% |
| C | 6625 | 83 | 1.252830% |
| D | 6625 | 629 | 9.494340% |

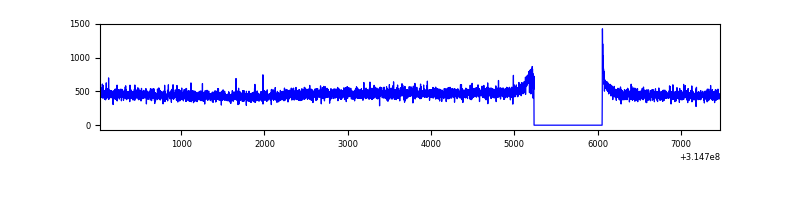

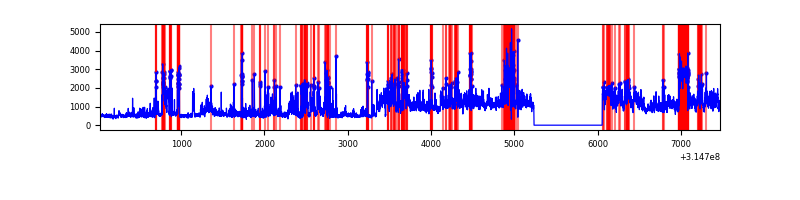

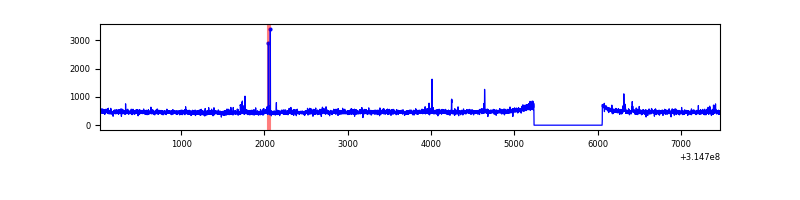

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7444 | 6625 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7445 | 6626 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7445 | 6626 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7445 | 6626 | 437 | 437 | 5.87% | 6.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 252 | 12291 | 71.79 | 796 | 778 | 160.4 |
| A | 13 | 254 | 11889 | 69.28 | 796 | 778 | 160.4 |
| A | 0 | 226 | 6866 | 37.96 | 796 | 778 | 160.4 |
| B | 12 | 111 | 17626 | 113.18 | 787 | 767 | 149.0 |
| B | 11 | 111 | 16075 | 102.77 | 787 | 767 | 149.0 |
| B | 14 | 111 | 14127 | 89.69 | 787 | 767 | 149.0 |
| C | 14 | 238 | 121167 | 694.58 | 750 | 755 | 173.4 |
| C | 0 | 10 | 7881 | 41.1 | 750 | 755 | 173.4 |
| C | 13 | 61 | 5156 | 25.38 | 750 | 755 | 173.4 |
| D | 7 | 238 | 2885657 | 16076.54 | 735 | 715 | 179.5 |
| D | 1 | 52 | 982008 | 5468.32 | 735 | 715 | 179.5 |
| D | 13 | 153 | 75001 | 413.96 | 735 | 715 | 179.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

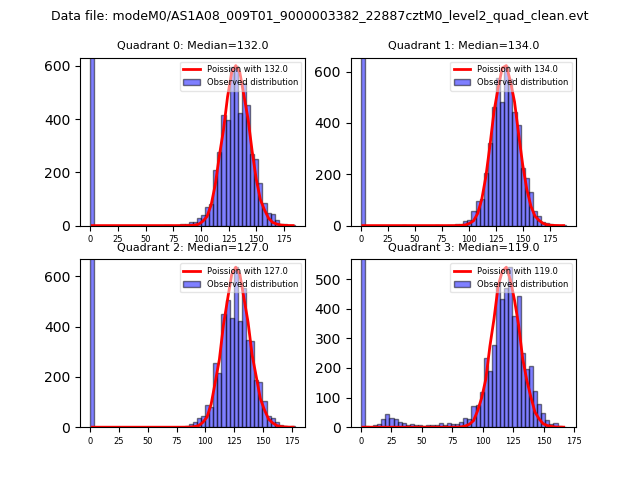

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

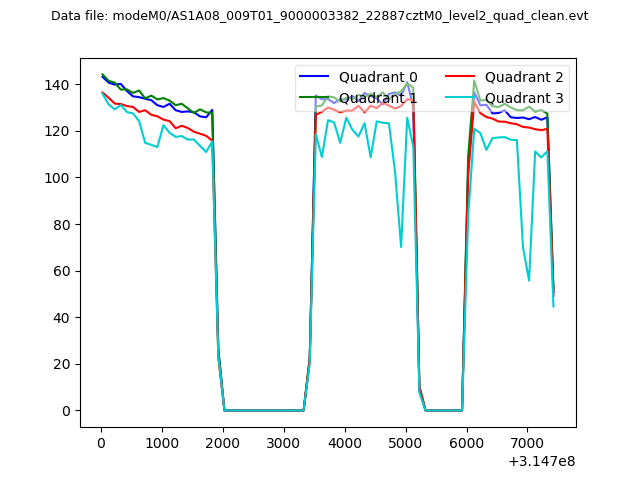

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

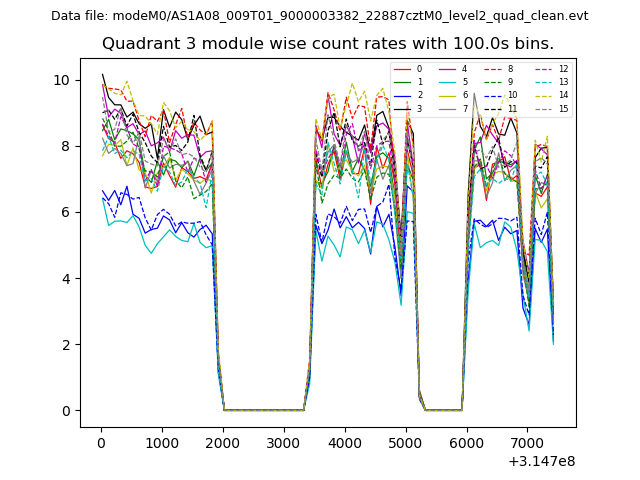

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

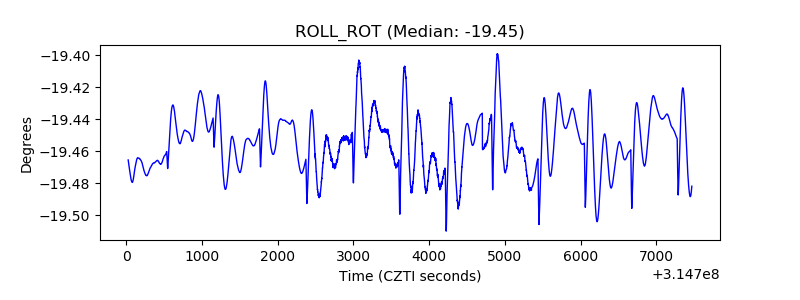

| _ROLL_ROT |  |

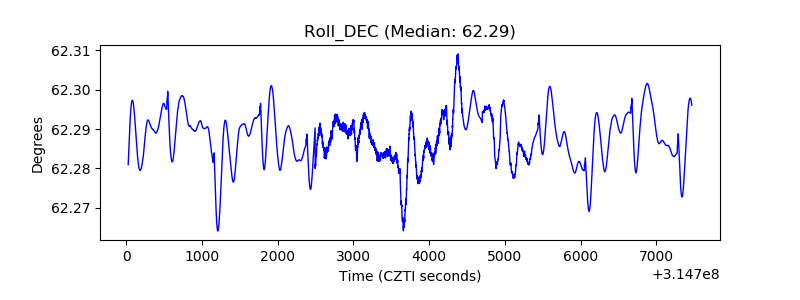

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
