| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_009T01_9000003382_22888cztM0_level2.evt | modeM0/AS1A08_009T01_9000003382_22888cztM0_level2_quad_clean.evt |
| Size (bytes) | 601,418,880 | 107,884,800 |
| Size | 573.6 MB | 102.9 MB |
| Events in quadrant A | 3,353,458 | 712,407 |
| Events in quadrant B | 3,473,414 | 724,478 |
| Events in quadrant C | 3,397,990 | 688,223 |
| Events in quadrant D | 7,499,346 | 638,811 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14757 | 1 |
| B | 0 | 14978 | 1 |
| C | 0 | 14936 | 1 |
| D | 0 | 27305 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7229 | 113 | 1.563148% |
| B | 7230 | 125 | 1.728907% |
| C | 7229 | 146 | 2.019643% |
| D | 7229 | 652 | 9.019228% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

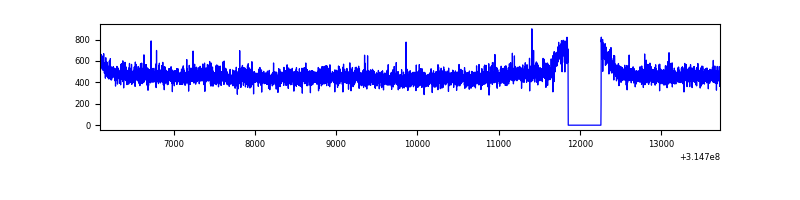

| A | 7634 | 7230 | 0 | 0 | 0.00% | 0.00% |  |

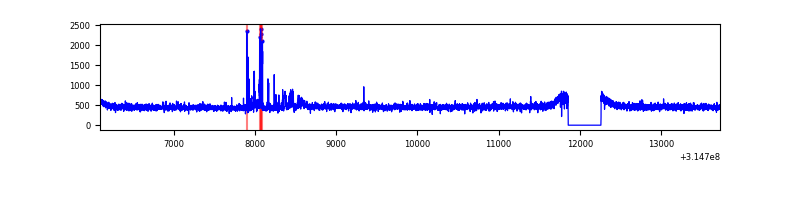

| B | 7635 | 7231 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7634 | 7230 | 5 | 5 | 0.07% | 0.07% |  |

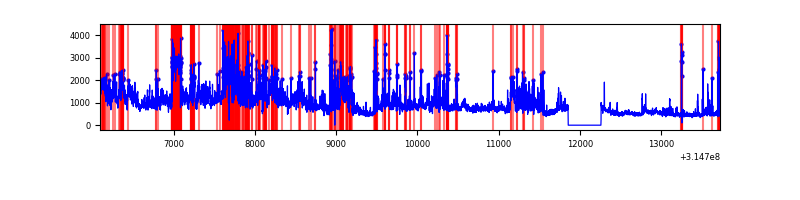

| D | 7634 | 7230 | 470 | 470 | 6.16% | 6.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12600 | 67.59 | 865 | 846 | 173.9 |
| A | 13 | 252 | 11884 | 63.47 | 865 | 846 | 173.9 |
| A | 3 | 137 | 7563 | 38.62 | 865 | 846 | 173.9 |
| B | 0 | 228 | 28007 | 167.35 | 857 | 834 | 162.4 |
| B | 0 | 190 | 19966 | 117.83 | 857 | 834 | 162.4 |
| B | 12 | 111 | 19674 | 116.03 | 857 | 834 | 162.4 |
| C | 14 | 238 | 130478 | 686.91 | 816 | 819 | 188.8 |
| C | 10 | 1 | 84052 | 440.95 | 816 | 819 | 188.8 |
| C | 13 | 61 | 5846 | 26.63 | 816 | 819 | 188.8 |
| D | 7 | 238 | 2796778 | 14296.62 | 806 | 779 | 195.6 |
| D | 1 | 52 | 1088537 | 5561.97 | 806 | 779 | 195.6 |
| D | 12 | 227 | 172779 | 879.48 | 806 | 779 | 195.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

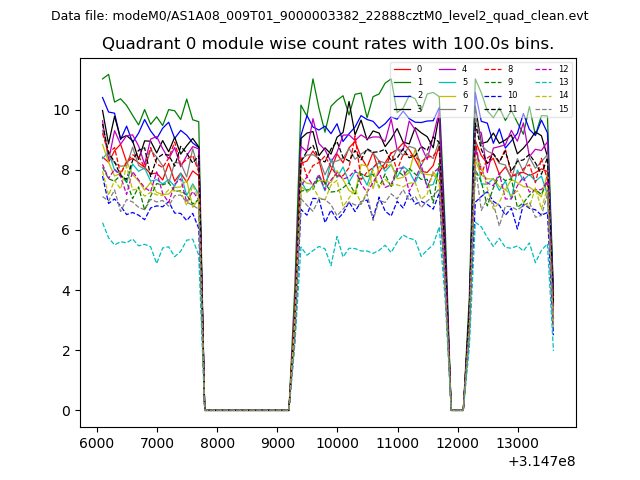

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

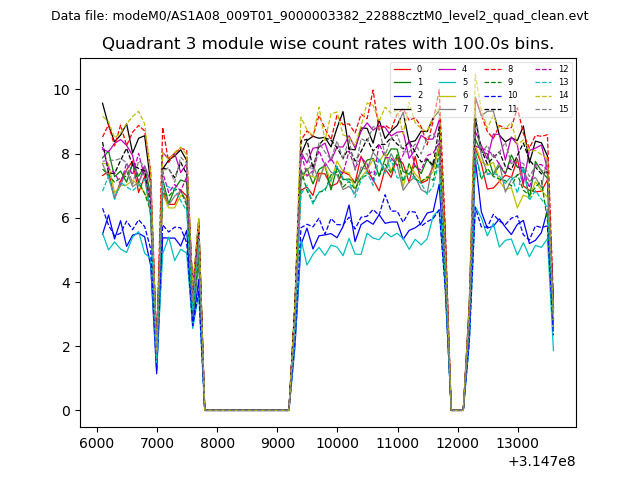

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

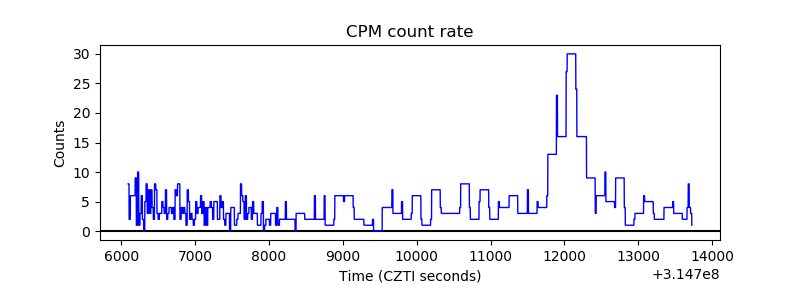

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

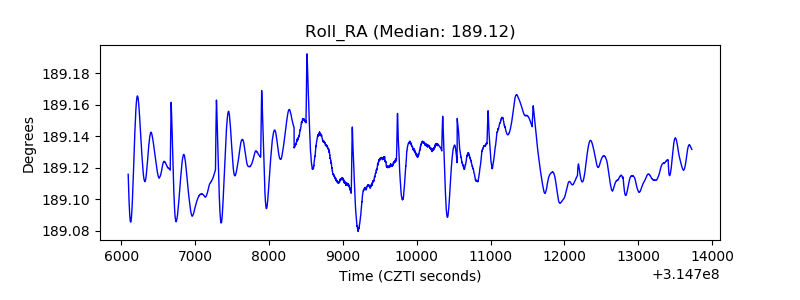

| _Roll_DEC |  |
| _Roll_RA |  |

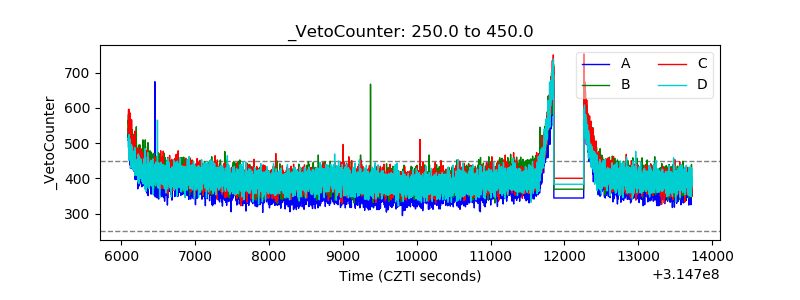

| Veto Counter |  |
