| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_009T01_9000003382_22901cztM0_level2.evt | modeM0/AS1A08_009T01_9000003382_22901cztM0_level2_quad_clean.evt |
| Size (bytes) | 406,627,200 | 88,323,840 |
| Size | 387.8 MB | 84.2 MB |
| Events in quadrant A | 2,778,209 | 576,541 |
| Events in quadrant B | 2,840,916 | 586,493 |
| Events in quadrant C | 2,745,309 | 557,258 |
| Events in quadrant D | 3,546,452 | 539,767 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12081 | 2 |
| B | 0 | 12243 | 1 |
| C | 0 | 12047 | 1 |
| D | 0 | 14385 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5930 | 75 | 1.264755% |
| B | 5931 | 74 | 1.247682% |
| C | 5931 | 68 | 1.146518% |
| D | 5931 | 131 | 2.208734% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6905 | 5931 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6906 | 5932 | 1 | 1 | 0.01% | 0.02% |  |
| C | 6906 | 5932 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6906 | 5932 | 80 | 80 | 1.16% | 1.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9118 | 58.79 | 718 | 702 | 143.2 |
| A | 13 | 252 | 7225 | 45.57 | 718 | 702 | 143.2 |
| A | 0 | 226 | 6256 | 38.8 | 718 | 702 | 143.2 |
| B | 4 | 173 | 16135 | 116.24 | 707 | 691 | 132.9 |
| B | 12 | 111 | 16085 | 115.86 | 707 | 691 | 132.9 |
| B | 0 | 189 | 15035 | 107.96 | 707 | 691 | 132.9 |
| C | 14 | 238 | 108625 | 690.5 | 676 | 681 | 156.3 |
| C | 13 | 61 | 4835 | 26.57 | 676 | 681 | 156.3 |
| C | 3 | 202 | 1670 | 6.33 | 676 | 681 | 156.3 |
| D | 1 | 52 | 562439 | 3379.63 | 688 | 668 | 166.2 |
| D | 13 | 153 | 220698 | 1323.71 | 688 | 668 | 166.2 |
| D | 10 | 230 | 40693 | 240.79 | 688 | 668 | 166.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

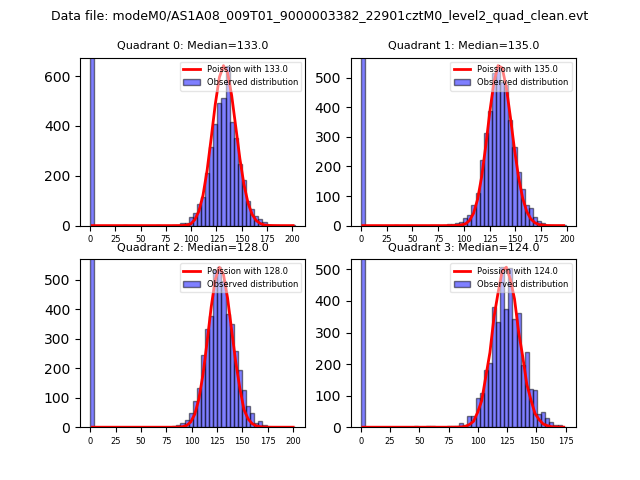

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

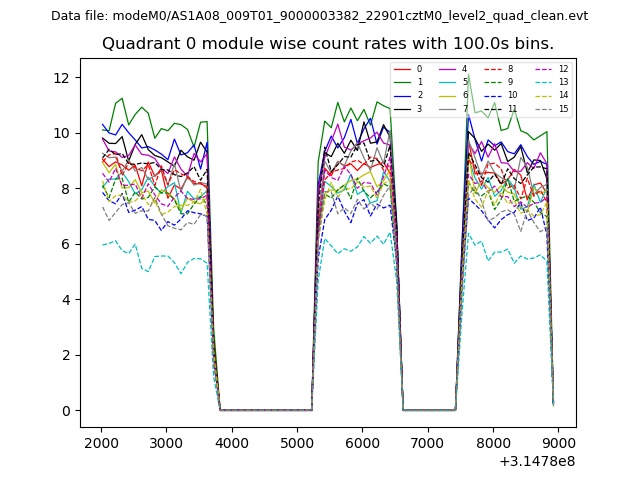

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

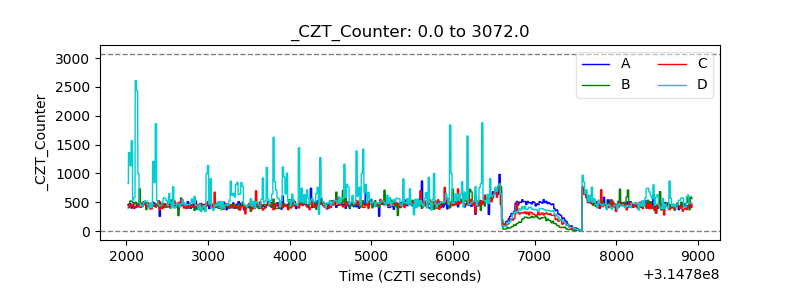

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

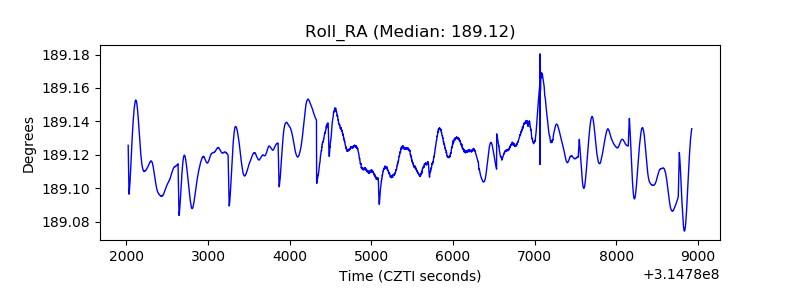

| _Roll_RA |  |
| Veto Counter |  |
