| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_009T01_9000003382_22912cztM0_level2.evt | modeM0/AS1A08_009T01_9000003382_22912cztM0_level2_quad_clean.evt |
| Size (bytes) | 504,745,920 | 111,049,920 |
| Size | 481.4 MB | 105.9 MB |
| Events in quadrant A | 3,428,021 | 743,352 |
| Events in quadrant B | 3,172,873 | 773,617 |
| Events in quadrant C | 3,057,680 | 728,526 |
| Events in quadrant D | 5,205,301 | 683,120 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14145 | 2 |
| B | 0 | 13432 | 2 |
| C | 0 | 13120 | 2 |
| D | 0 | 19761 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6222 | 122 | 1.960784% |
| B | 6222 | 29 | 0.466088% |
| C | 6222 | 48 | 0.771456% |
| D | 6222 | 306 | 4.918033% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

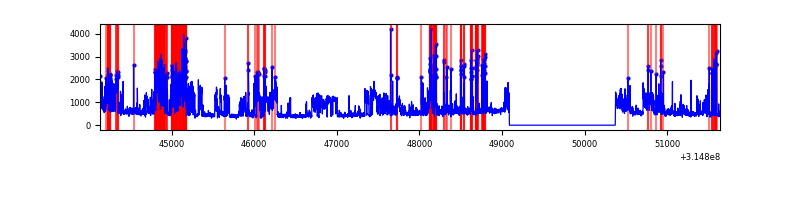

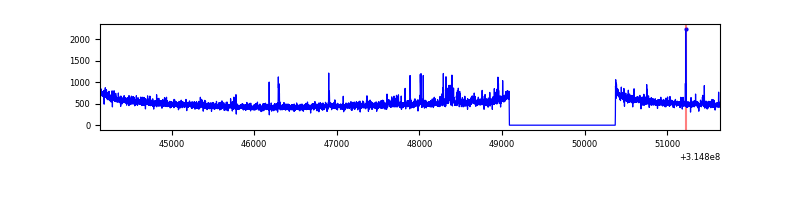

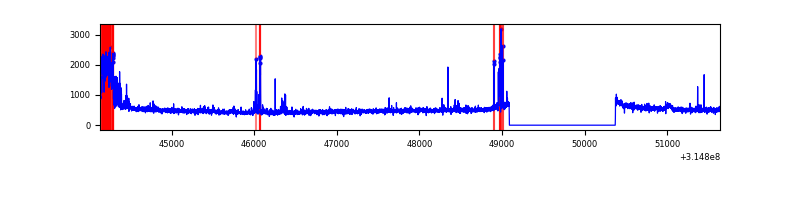

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7507 | 6223 | 86 | 86 | 1.15% | 1.38% |  |
| B | 7507 | 6223 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7507 | 6223 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7507 | 6223 | 284 | 284 | 3.78% | 4.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 252 | 272533 | 1755.24 | 775 | 760 | 154.8 |
| A | 13 | 170 | 104057 | 667.14 | 775 | 760 | 154.8 |
| A | 0 | 23 | 58108 | 370.38 | 775 | 760 | 154.8 |
| B | 0 | 190 | 39545 | 265.74 | 784 | 766 | 145.9 |
| B | 12 | 111 | 16997 | 111.23 | 784 | 766 | 145.9 |
| B | 3 | 64 | 15942 | 104.0 | 784 | 766 | 145.9 |
| C | 14 | 238 | 121456 | 706.04 | 746 | 753 | 171.0 |
| C | 7 | 247 | 6651 | 34.5 | 746 | 753 | 171.0 |
| C | 8 | 208 | 6147 | 31.55 | 746 | 753 | 171.0 |
| D | 1 | 52 | 1879975 | 10618.63 | 733 | 711 | 177.0 |
| D | 13 | 153 | 199757 | 1124.69 | 733 | 711 | 177.0 |
| D | 13 | 174 | 163259 | 918.46 | 733 | 711 | 177.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

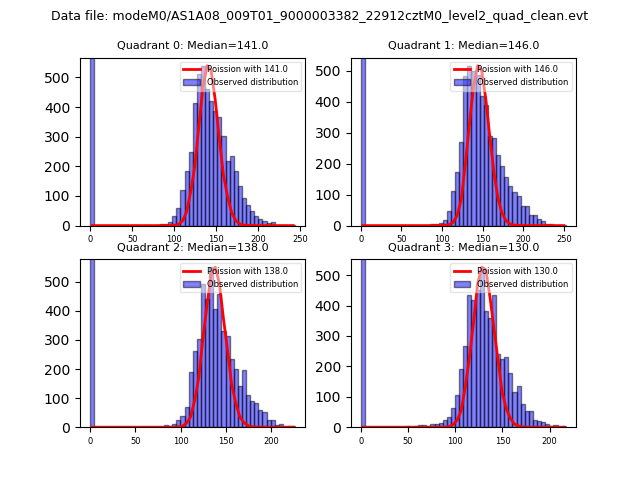

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

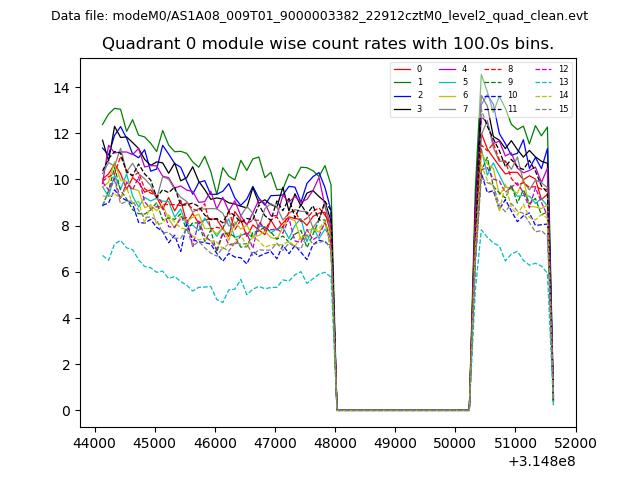

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

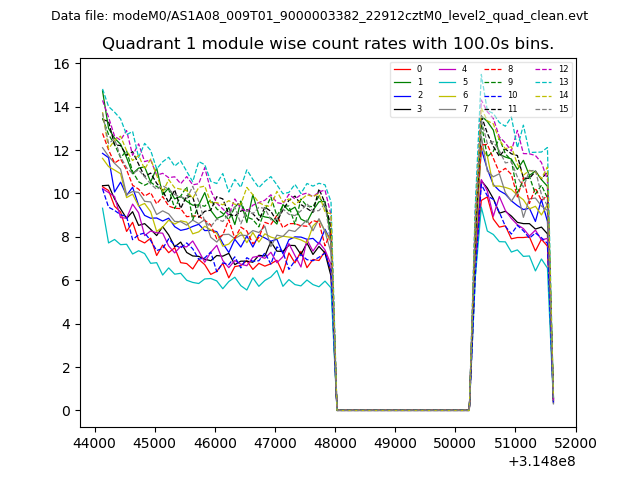

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

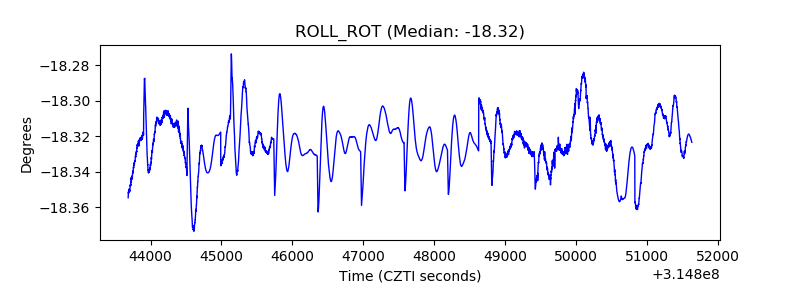

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
